Technical Tip: Allow access to a RealServer published with a 1-to-1 NAT solution

[JordAnge]

Description	This article describes how to set up a 1-to-1 NAT to publish public or 'external' IP addresses for FortiADC resources, while ensuring the communication among servers on the internal network is on a private or 'internal' IP address range. Typically, the connection to a 1-to-1 NAT succeeds when it comes from WAN but fails when the connection comes from a LAN.
Scope	Connections against a RealServer published with a 1-to-1 NAT solution.

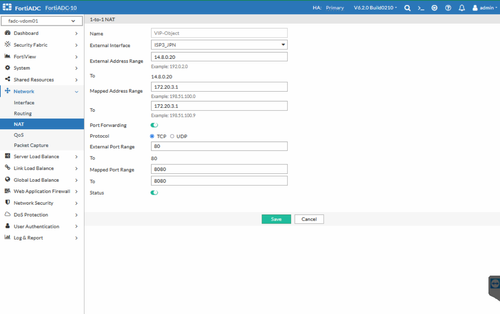

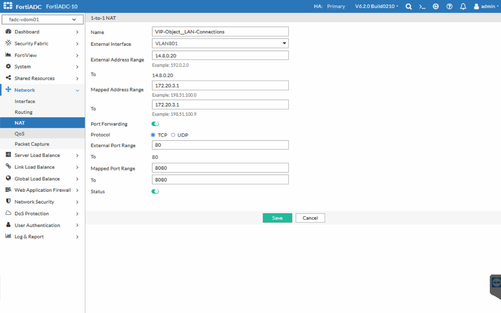

Solution	The following topology is used in this article: LAN-User -> FADC -> Internet LAN-WebServer Perform the following steps to set up connection in the GUI: - Go to Network -> NAT -> 1-to-1 NAT. - Select Create New. - Configure the following fields: - Name - External Interface  <- The WAN interface is typically configured here, allowing access from WAN to LAN. On this new VIP, set the LAN interface, even though the external Address Range may be a public-IP. - External Address Range - Mapped Address Range - Port Forwarding - Protocol [ TCP | UDP ] - External Port Range - Mapped Port Range - Status - Select Save Alternatively, run the configuration below to set up the solution in the CLI: # config firewall vip edit "VIP-Object" <- Allows connection from WAN to LAN set extif ISP3_JPN set extip 14.8.0.20 set mappedip-min 172.20.3.1 set mappedip-max 172.20.3.1 set portforward enable set extport 80 set mappedport-min 8080 set mappedport-max 8080 next edit "VIP-Object__LAN-Connections" <- Allows connection from LAN to LAN set extif VLAN801 set extip 14.8.0.20 set mappedip-min 172.20.3.1 set mappedip-max 172.20.3.1 set portforward enable set extport 80 set mappedport-min 8080 set mappedport-max 8080 next end Verify the solution with a sniffer to ensure TCP 3-way handshake is completed on connection from WAN to VIP. # diag sniffer packet any interfaces=[any] filters=[ host 1.0.16.1 ] 17.048154 port2 in 802.1Q vlan#14 P0 17.048059 ISP3_JPN in 1.0.16.1.51239 -> 14.8.0.20.80: syn 1625511015 17.048113 VLAN803 out 1.0.16.1.51239 -> 172.20.3.1.8080: syn 1625511015 17.048115 port3 out 802.1Q vlan#803 P0 17.048298 port3 in 802.1Q vlan#803 P0 17.048298 VLAN803 in 172.20.3.1.8080 -> 1.0.16.1.51239: syn 1308653961 ack 1625511016 17.048314 ISP3_JPN out 14.8.0.20.80 -> 1.0.16.1.51239: syn 1308653961 ack 1625511016 17.048316 port2 out 802.1Q vlan#14 P0 17.048733 port2 in 802.1Q vlan#14 P0 17.048733 ISP3_JPN in 1.0.16.1.51239 -> 14.8.0.20.80: ack 1308653962 17.048746 VLAN803 out 1.0.16.1.51239 -> 172.20.3.1.8080: ack 1308653962 17.048748 port3 out 802.1Q vlan#803 P0 Next, ensure TCP 3-way handshake is completed on connection from LAN to VIP: # diagnose sniffer packet any ' host 14.8.0.20 or host 172.20.3.1 ' 4 interfaces=[any] filters=[host 14.8.0.20 or host 172.20.3.1] 6.303633 port3 in 802.1Q vlan#801 P0 6.303528 VLAN801 in 172.20.1.10.51188 -> 14.8.0.20.80: syn 3829317182 6.303591 VLAN803 out 172.20.1.10.51188 -> 172.20.3.1.8080: syn 3829317182 6.303593 port3 out 802.1Q vlan#803 P0 6.303805 port3 in 802.1Q vlan#803 P0 6.303805 VLAN803 in 172.20.3.1.8080 -> 172.20.1.10.51188: syn 3629858734 ack 3829317183 6.303821 VLAN801 out 14.8.0.20.80 -> 172.20.1.10.51188: syn 3629858734 ack 3829317183 6.303822 port3 out 802.1Q vlan#801 P0 6.304305 port3 in 802.1Q vlan#801 P0 6.304305 VLAN801 in 172.20.1.10.51188 -> 14.8.0.20.80: ack 3629858735 6.304318 VLAN803 out 172.20.1.10.51188 -> 172.20.3.1.8080: ack 3629858735 6.304319 port3 out 802.1Q vlan#803 P0
