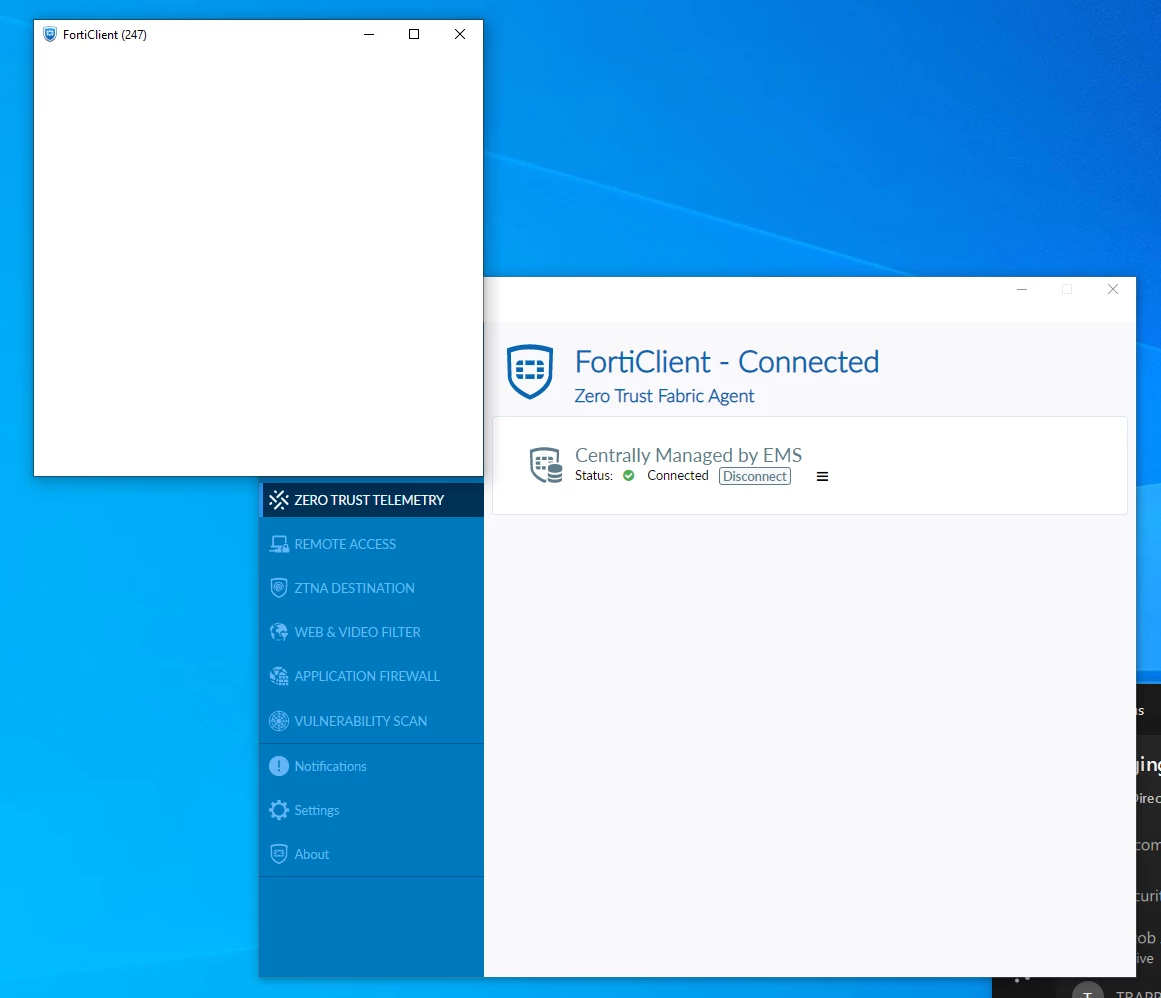

ZTNA Forticlient authentication popup just counts down to zero.

This time I had to actually reboot the primary fortigate in the ha pair. once the secondary took over everything worked again.

Fortigate 1500D 7.2.5
ems 7.2.1
forticlient 7.2.1

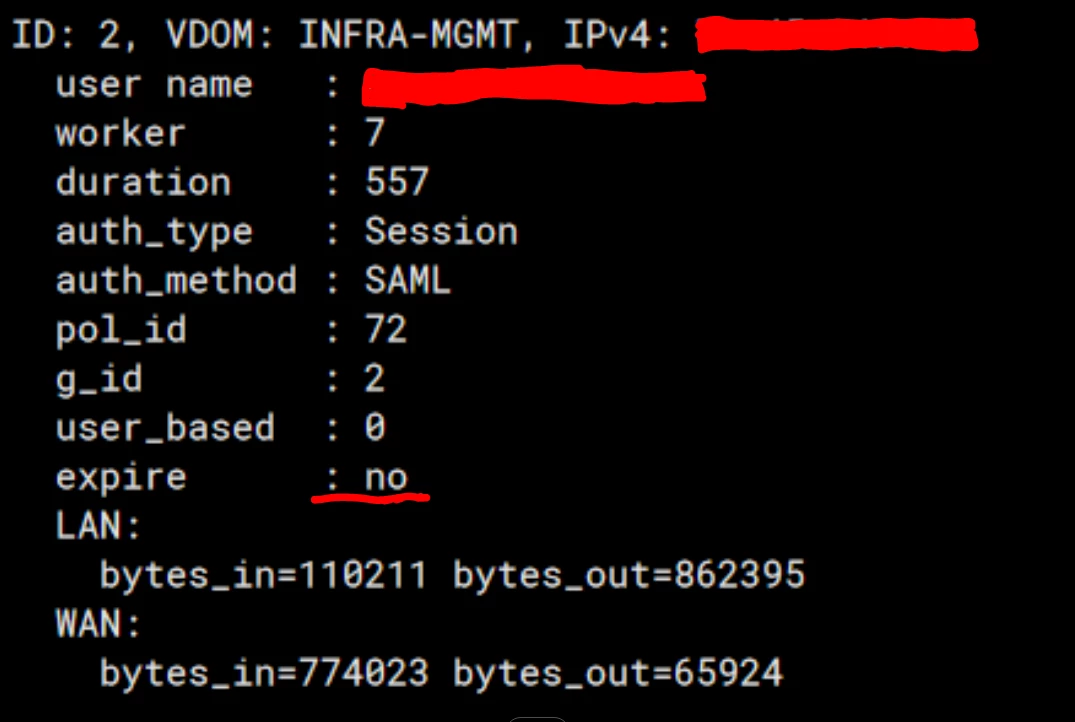

I think it has something to do with user group timeouts and something with wad users. "diag wad user list" shows that it doesn't expire but I have the saml authentication timeout set at 960 in both the fortiauthenticator and in the user group settings on the fortigate for my SAML group.

I got into the fortigate and did a "diag wad user clear ID IP VDOM" and then was immediately able to connect again. How do I set the user sessions to expire either on idle or the user closes their last ZTNA session?

Do you see your traffic in the ztna logs ? Not forward traffic but ztna traffic? Your traffic if its being correctly proxyied it should appear in the ztna logs. Does the internet facing interface has a public ip or private? If private then add a secondary ip with the public ip 111.112.113.114 ? If it already has a public ip try TCP forwarding instead of HTTPS access proxy see if it works as it will do the same thing at the end
