Question

WiFi Bandwidth

  • May 13, 2022
  • 2 replies
  • 3058 views

Hi



I have a Fortigate 200e with 1000/1000 internet speed and 4x  FortiAP 421e access points connected to the firewall. My LAN Speedtest returns ~800 - 1000 mbps which is fine but my wireless speed tests return ~50/100 and I believe this is the reason why my users are experiencing latency issues and dropped packets on the Wi-Fi with Zoom / Video conferencing calls. All video conferencing work fine on the LAN but just not so great on the Wi-Fi.



I want to know if there is a way to increase bandwidth on my Wi-Fi or check to see if I have something misconfigured on the firewall that is limiting bandwidth. I did not see any traffic shapers configured and I am not sure what else to check. Firmware is up to date on all devices. we are only using 5 GHz



As a test , I connected a Ubiquiti U6-LR - WiFi 6 Long-Range AP to my firewall and speedtest returned same results to the client connected to the Ubiquiti so I believe its a setting on the Firewall that I am missing.



Any help would be appreciated.



Thanks

2 replies

seshuganesh
Staff
Staff
May 13, 2022

Hi Team,



Can you check if there is any traffic shapper configured in the firewall just for wifi interface?

That should impact it speed.



matanood
matanoodAuthor
New Member
May 13, 2022

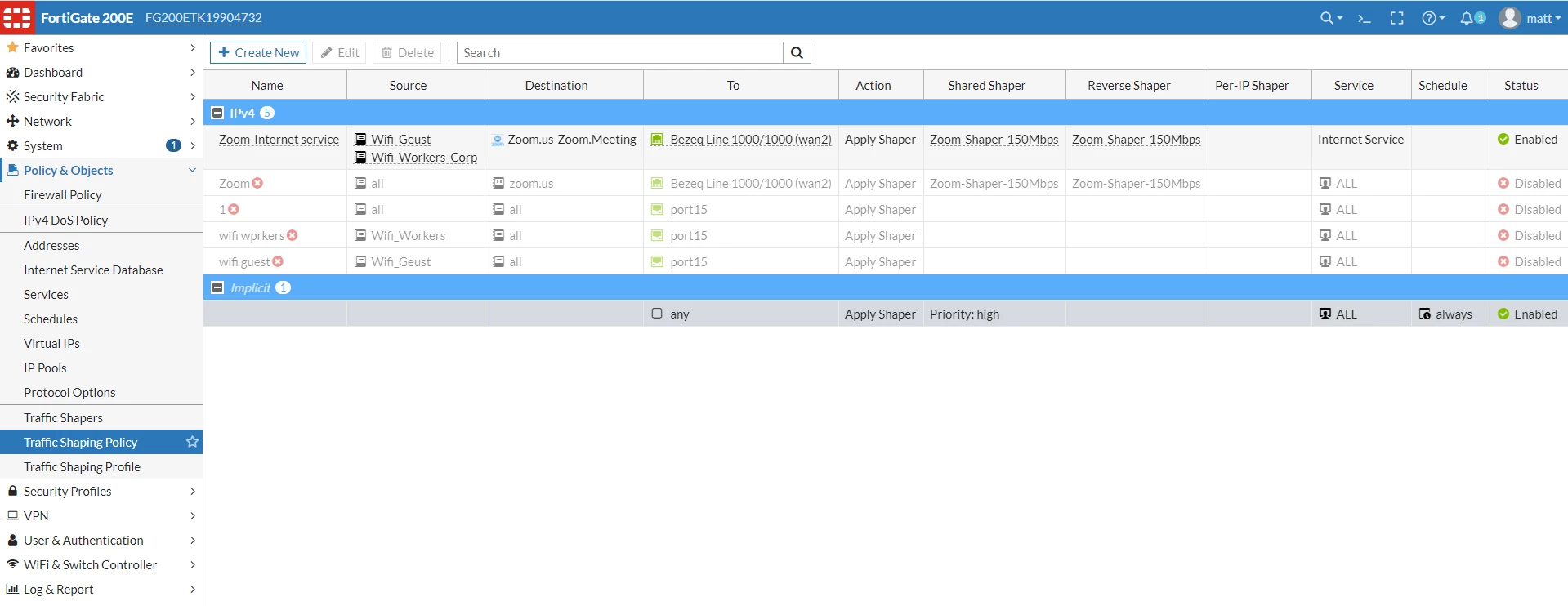

Thanks - These are my policies:

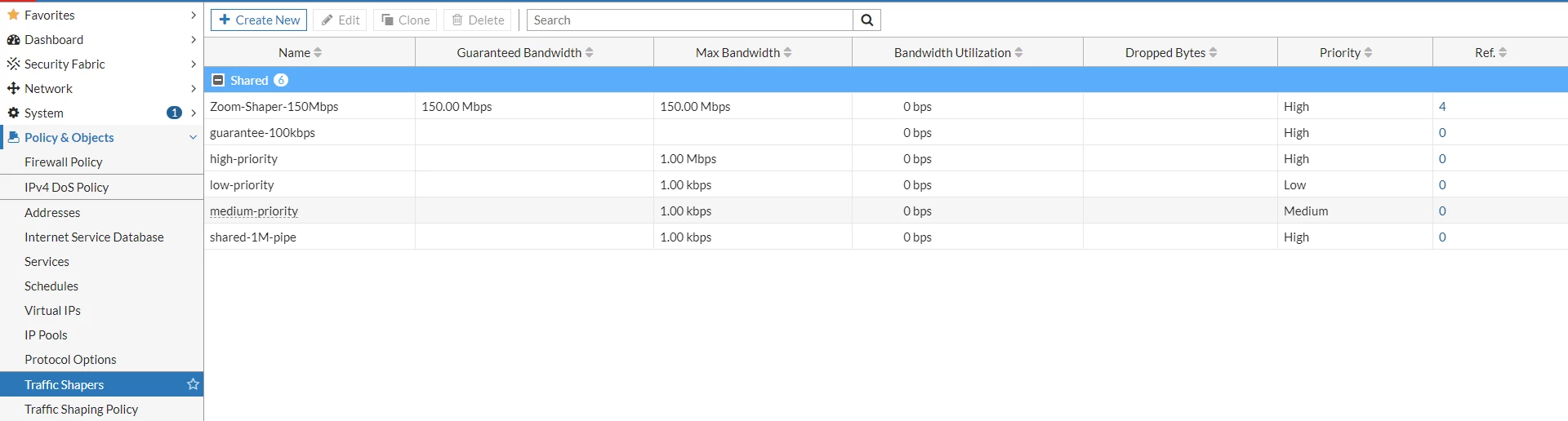

and these are the traffic shapers:




Hope this helps.
