What happened to my packet capture in 7.2?

Hi,

Please refer to this article for packet capture using GUI:- https://docs.fortinet.com/index.php/document/fortigate/7.2.0/administration-guide/462154

you can also capture packets via CLI:- https://docs.fortinet.com/document/fortiweb/7.6.0/troubleshooting-guide/715676/packet-capture-via-cli-command

@hexank

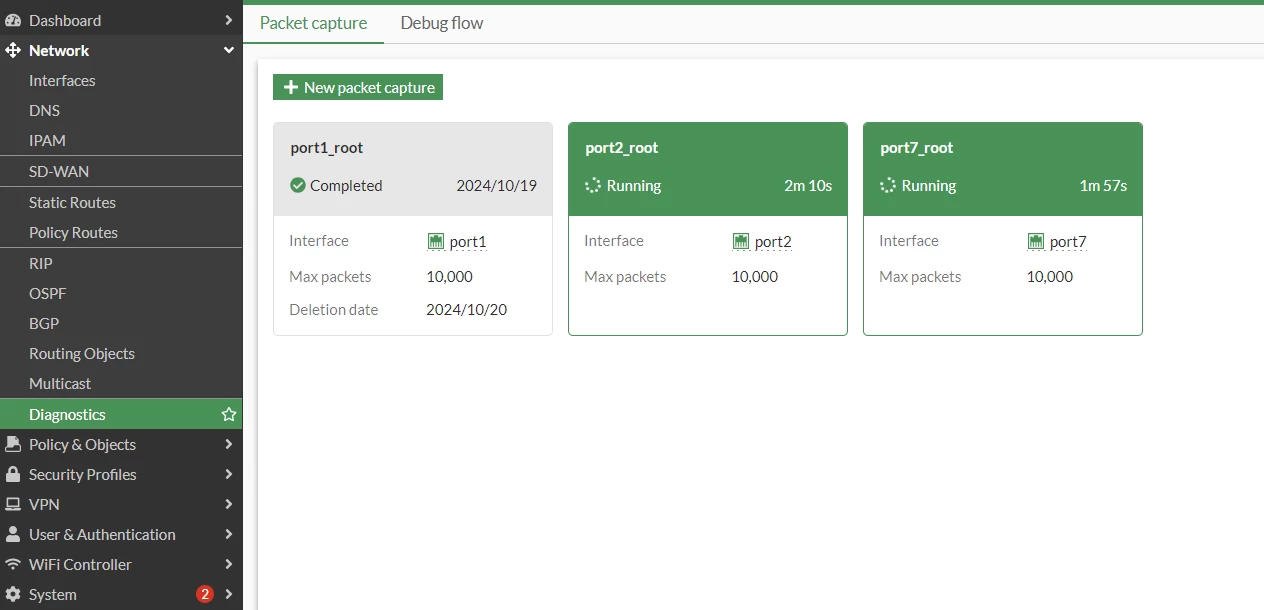

Yes there has been changes in the layout, but you can still run the parallel packet captures on the GUI.

You just will have to go to Diagnostics under Network, and start on new capture, close it, and then start it again on different interface.

This change was necessary/desirable to avoid lots of "duplicate message" (in red or black) in Wireshark view.

In other words, use "diag sniffer packet any ....  4 0 l" in CLI if you need to see how one packet comes in/through/out the chain of interfaces.

Toshi

I'm just going to say I agree with complete garbage, even as explained this is one of the most ignorant PIA things that Fortinet has ever done, currently 7.2 packet captures are essentially worthless  IMO unless you have hours and hours to sift through convert CLI captures, etc... which is never the case.  It used to be simple clean and effective actually one of favorite features and it has been turned.  You would think they would be trying to make administration easier, big step backwards from previous releases.
