Websites are not loading - Fortigate 120g

  • July 27, 2024
  • 4 replies
  • 13928 views

Hello everyone,



We are using a Fortigate 120g. However, we can't open any website.



Ping and DNS works on the client and on the fortigate and the packets are forwarded on the fortigate without dropping any packets.



When we connect directly to the Fortigate 120g, we can access the Internet and open web pages without any delay.



When we disconnect the Fortigate 120g and connect our old firewall, everything works fine right away.



What we tried:

Configuring port speed 1000Full on our Cisco CL9200 switch and on the Fortigate 120g.


Do you have any idea how we can fix the problem?



Thank you in advance!



Best regards

Best answer by FortinetBeginner

Ok, we fixed the problem.

It was a DNS problem.

Ping worked and DNS names were resolved, but web pages did not load.

With public DNS servers on the client, the sites loaded without delay.

With our internal DNS servers, the sites did not load.

This problem was caused by a subnet that was configured on the Mgmt port on the firewall.

This subnet overlapped with our internal DNS server subnet.



We found this out by performing the following steps:



Ping from firewall to internal DNS server works.

Ping from DNS server to firewall didn't work.

nslookup www.google.com internal DNS server

like nslookup www.google.com 172.1.1.10 (we got two timeouts before the DNS name was resolved)



I hope this solution helps someone.





Regards

Ralf

4 replies

salemneaz
Staff
salemneaz
Staff
July 27, 2024

 Please check the Following from the Firewall CLI.



exec ping www.google.com



Check the Policy if you have enabled webfilter and the Licenses are active. Check the routing table.



Follow the article Reference after you run the above diagnostics steps



https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-website-is-not-reachable/ta-p/210201

    FortinetBeginner
    FortinetBeginnerAuthor
    Explorer III
    July 27, 2024

    Hi Salem,

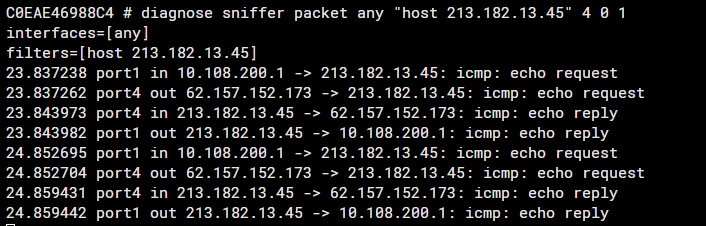

    DNS works fine, but Troubleshoot-2 from your link shows only ICMP packets, but no TCP/443 packets. (See attachment).Troubleshoot-2-Result-only-ICMP-traffic.png

    Ralf



    salemneaz
    Staff
    salemneaz
    Staff
    July 27, 2024

    from the Firewall GUI can you do this 'exec ping www.google.com'



      HiralShah
      Staff
      HiralShah
      Staff
      July 27, 2024

      Hello @FortinetBeginner

      If you can access website fine when connected to FortiGate and have no problem pinging directly from the FortiGate seems like issue on the switch.

      Can you make sure when switch is connected, and you access the website, does traffic reach the FortiGate?

      you can check it with diagnose sniffer packet any 'host source_IP' 4 0 l

      It seems to be issue on switch.

        FortinetBeginner
        FortinetBeginnerAuthor
        Explorer III
        July 27, 2024

        Hi Hiral,



        I'm not sure if the problem is my switch, because with the old firewall everything works plug & play.

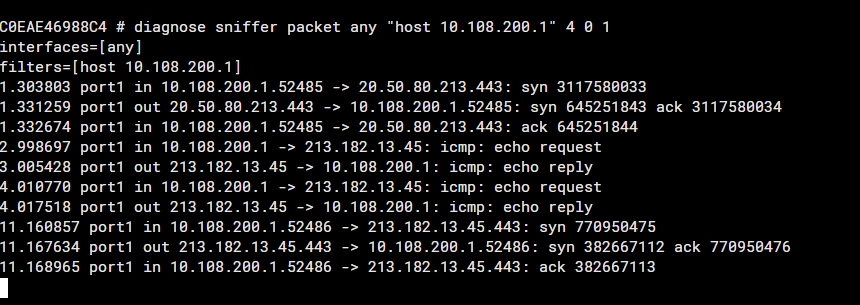

        Attached is the screenshot of my diagnostic sniffer.






        Ralf

        salemneaz
        Staff
        salemneaz
        Staff
        July 27, 2024

        do one think at the Firewall check the Forward logs and run the  following debug

        di de dis

        di de reset

        di de flow filter addr <Host-IP>
        di de flow filter port 443
        di de console timestamp en
        di de flow trace start 999
        di de en



        To stop the debug use the command given below



        di de dis

        di de reset



        Let us see if the Firewall is dropping any packets, then you can bypass the switch and connect the host directly with the Firewall and see if that works or not. Also make sure that you have the webfilter active license and fortiguard up and running if you are using the webfilter at the Policy.

          FortinetBeginner
          FortinetBeginnerAuthor
          Explorer III
          July 27, 2024

          C0EAE46988C4 # di de dis

          C0EAE46988C4 # di de reset

          C0EAE46988C4 # di de flow filter addr 10.102.29.12

          C0EAE46988C4 # di de flow filter port 443

          C0EAE46988C4 # di de flow console timestamp en

          command parse error before 'console'
          Command fail. Return code -61

          C0EAE46988C4 # di de console timestamp en

          C0EAE46988C4 # di de flow trace start 999

          C0EAE46988C4 # di de en

          C0EAE46988C4 # 2024-07-27 22:51:58 id=20085 trace_id=1 func=print_pkt_detail line=5953 msg="vd-root:0 received a packet(proto=6, 10.102.29.12:57344->213.182.13.45:443) tun_id=0.0.0.0 from port1. flag [S], seq 2474954773, ack 0, win 64240"
          2024-07-27 22:51:58 id=20085 trace_id=1 func=init_ip_session_common line=6133 msg="allocate a new session-00057276, tun_id=0.0.0.0"
          2024-07-27 22:51:58 id=20085 trace_id=1 func=__vf_ip_route_input_rcu line=1999 msg="find a route: flag=00000000 gw-62.1.1.1 via port4"
          2024-07-27 22:51:58 id=20085 trace_id=1 func=get_new_addr line=1227 msg="find DNAT: IP-62.157.152.173, port-57344"
          2024-07-27 22:51:58 id=20085 trace_id=1 func=fw_forward_handler line=888 msg="Allowed by Policy-10027: SNAT"
          2024-07-27 22:51:58 id=20085 trace_id=1 func=ip_session_confirm_final line=3187 msg="npu_state=0x4000000, hook=4"
          2024-07-27 22:51:58 id=20085 trace_id=1 func=__ip_session_run_tuple line=3546 msg="SNAT 10.102.29.12->62.157.152.173:57344"
          2024-07-27 22:51:58 id=20085 trace_id=2 func=print_pkt_detail line=5953 msg="vd-root:0 received a packet(proto=6, 213.182.13.45:443->62.1.1.1:57344) tun_id=0.0.0.0 from port4. flag [S.], seq 36358557, ack 2474954774, win 8190"
          2024-07-27 22:51:58 id=20085 trace_id=2 func=resolve_ip_tuple_fast line=6039 msg="Find an existing session, id-00057276, reply direction"
          2024-07-27 22:51:58 id=20085 trace_id=2 func=__ip_session_run_tuple line=3559 msg="DNAT 62.1.1.1:57344->10.102.29.12:57344"
          2024-07-27 22:51:58 id=20085 trace_id=2 func=__vf_ip_route_input_rcu line=1999 msg="find a route: flag=00000000 gw-10.255.255.30 via port1"
          2024-07-27 22:51:58 id=20085 trace_id=2 func=npu_handle_session44 line=1243 msg="Trying to offloading session from port4 to port1, skb.npu_flag=00000400 ses.state=00010204 ses.npu_state=0x04000000"
          2024-07-27 22:51:58 id=20085 trace_id=2 func=ip_session_install_npu_session line=367 msg="npu session installation succeeded"
          2024-07-27 22:51:58 id=20085 trace_id=2 func=fw_forward_dirty_handler line=412 msg="state=00010204, state2=00000001, npu_state=04000800"
          2024-07-27 22:51:58 id=20085 trace_id=3 func=print_pkt_detail line=5953 msg="vd-root:0 received a packet(proto=6, 10.102.29.12:57344->213.182.13.45:443) tun_id=0.0.0.0 from port1. flag [.], seq 2474954774, ack 36358558, win 1026"
          2024-07-27 22:51:58 id=20085 trace_id=3 func=resolve_ip_tuple_fast line=6039 msg="Find an existing session, id-00057276, original direction"
          2024-07-27 22:51:58 id=20085 trace_id=3 func=npu_handle_session44 line=1243 msg="Trying to offloading session from port1 to port4, skb.npu_flag=00000400 ses.state=00010204 ses.npu_state=0x04000800"
          2024-07-27 22:51:58 id=20085 trace_id=3 func=ip_session_install_npu_session line=367 msg="npu session installation succeeded"
          2024-07-27 22:51:58 id=20085 trace_id=3 func=fw_forward_dirty_handler line=412 msg="state=00010204, state2=00000001, npu_state=04000c00"
          2024-07-27 22:51:58 id=20085 trace_id=3 func=__ip_session_run_tuple line=3546 msg="SNAT 10.102.29.12->62.1.1.1:57344"
          2024-07-27 22:51:58 id=20085 trace_id=4 func=print_pkt_detail line=5953 msg="vd-root:0 received a packet(proto=6, 10.102.29.12:57345->213.182.13.45:443) tun_id=0.0.0.0 from port1. flag [S], seq 1869077718, ack 0, win 64240"
          2024-07-27 22:51:58 id=20085 trace_id=4 func=init_ip_session_common line=6133 msg="allocate a new session-00057278, tun_id=0.0.0.0"
          2024-07-27 22:51:58 id=20085 trace_id=4 func=__vf_ip_route_input_rcu line=1999 msg="find a route: flag=00000000 gw-62.1.1.1 via port4"
          2024-07-27 22:51:58 id=20085 trace_id=4 func=get_new_addr line=1227 msg="find DNAT: IP-62.157.152.173, port-57345"
          2024-07-27 22:51:58 id=20085 trace_id=4 func=fw_forward_handler line=888 msg="Allowed by Policy-10027: SNAT"
          2024-07-27 22:51:58 id=20085 trace_id=4 func=ip_session_confirm_final line=3187 msg="npu_state=0x4000000, hook=4"
          2024-07-27 22:51:58 id=20085 trace_id=4 func=__ip_session_run_tuple line=3546 msg="SNAT 10.102.29.12->62.1.1.1:57345"
          2024-07-27 22:51:58 id=20085 trace_id=5 func=print_pkt_detail line=5953 msg="vd-root:0 received a packet(proto=6, 213.182.13.45:443->62.1.1.1:57345) tun_id=0.0.0.0 from port4. flag [S.], seq 1810122540, ack 1869077719, win 8190"
          2024-07-27 22:51:58 id=20085 trace_id=5 func=resolve_ip_tuple_fast line=6039 msg="Find an existing session, id-00057278, reply direction"
          2024-07-27 22:51:58 id=20085 trace_id=5 func=__ip_session_run_tuple line=3559 msg="DNAT 62.1.1.1:57345->10.102.29.12:57345"
          2024-07-27 22:51:58 id=20085 trace_id=5 func=__vf_ip_route_input_rcu line=1999 msg="find a route: flag=00000000 gw-10.255.255.30 via port1"
          2024-07-27 22:51:58 id=20085 trace_id=5 func=npu_handle_session44 line=1243 msg="Trying to offloading session from port4 to port1, skb.npu_flag=00000400 ses.state=00010204 ses.npu_state=0x04000000"
          2024-07-27 22:51:58 id=20085 trace_id=5 func=ip_session_install_npu_session line=367 msg="npu session installation succeeded"
          2024-07-27 22:51:58 id=20085 trace_id=5 func=fw_forward_dirty_handler line=412 msg="state=00010204, state2=00000001, npu_state=04000800"
          2024-07-27 22:51:58 id=20085 trace_id=6 func=print_pkt_detail line=5953 msg="vd-root:0 received a packet(proto=6, 10.102.29.12:57345->213.182.13.45:443) tun_id=0.0.0.0 from port1. flag [.], seq 1869077719, ack 1810122541, win 1026"
          2024-07-27 22:51:58 id=20085 trace_id=6 func=resolve_ip_tuple_fast line=6039 msg="Find an existing session, id-00057278, original direction"
          2024-07-27 22:51:58 id=20085 trace_id=6 func=npu_handle_session44 line=1243 msg="Trying to offloading session from port1 to port4, skb.npu_flag=00000400 ses.state=00010204 ses.npu_state=0x04000800"
          2024-07-27 22:51:58 id=20085 trace_id=6 func=ip_session_install_npu_session line=367 msg="npu session installation succeeded"
          2024-07-27 22:51:58 id=20085 trace_id=6 func=fw_forward_dirty_handler line=412 msg="state=00010204, state2=00000001, npu_state=04000c00"
          2024-07-27 22:51:58 id=20085 trace_id=6 func=__ip_session_run_tuple line=3546 msg="SNAT 10.102.29.12->62.1.1.1:57345"
          di de dis





          Ralf

          salemneaz
          Staff
          salemneaz
          Staff
          July 27, 2024

          Great job, now make sure you stop the debug using the command



          di de dis

          di de reset.



          We can see bidirectional traffic flow, do clear the cache at the browser or use private window and try one more time. If you can then bypass the switch and try and ensure that no web filter is there at the policy id 10027.

            FortinetBeginner
            FortinetBeginnerAuthorAnswer
            Explorer III
            August 2, 2024

            Ok, we fixed the problem.

            It was a DNS problem.

            Ping worked and DNS names were resolved, but web pages did not load.

            With public DNS servers on the client, the sites loaded without delay.

            With our internal DNS servers, the sites did not load.

            This problem was caused by a subnet that was configured on the Mgmt port on the firewall.

            This subnet overlapped with our internal DNS server subnet.



            We found this out by performing the following steps:



            Ping from firewall to internal DNS server works.

            Ping from DNS server to firewall didn't work.

            nslookup www.google.com internal DNS server

            like nslookup www.google.com 172.1.1.10 (we got two timeouts before the DNS name was resolved)



            I hope this solution helps someone.





            Regards

            Ralf
