Web UI on passive device in HA cluster Fortiweb

Forum|Forum|1 year ago
February 14, 2025
4 replies
1089 views

Hello everyone! I have 2 Fortiweb devices in active-passive ha cluster. Now I can connect via HTTPS to the mgmt interface active device of the HA cluster, there is no access to the passive device, while using the cli I have access to the mgmt interface of the passive device fortiweb too. Can I use the web UI on a passive cluster device, such as on fortigate devices?
Thanks.

FortiWEB

AEK

SuperUser

Hi Anatol

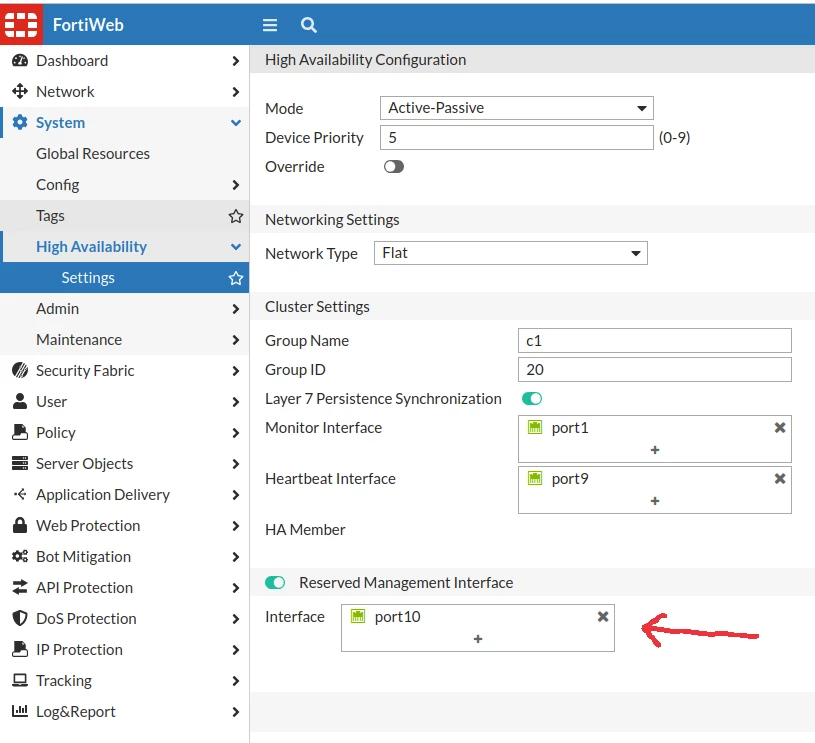

I have FWB 7.4.5 and it has the possibility to configure a reserved mgt interface. If you do so you should be able to access the passive node.

AEK

anatol_roAuthor

New Member

Hi AEK! Thanks for your feedback. My version FWB is 6.4 and in cli passive device i see that
set ha-mgmt-status enable
set ha-mgmt-interface mgmt2
as on an active device.
can this behavior be related to the fortiweb version ?

AEK

SuperUser

It seems the right command

ha-mgmt-status {enable | disable}

Specifies whether the network interface you select provides administrative access to this appliance when it is a member of the HA cluster.

When this option is selected, you can access the configuration for this cluster member using the IP address of the specified network interface. The interface configuration, including administrative access and other settings, is not synchronized with other cluster members.

You can configure up to eight reserve management ports in each HA cluster. You cannot configure routing for the port you select.

disable

ha-mgmt-interface "<interface_name>"

Specifies the network interface that provides administrative access to this appliance when it is a member of the HA cluster.

No default.

Ref: https://docs.fortinet.com/document/fortiweb/7.4.5/cli-reference/352695/system-ha

AEK
