VXLAN over IPSEC don't work

Forum|Forum|1 year ago
September 24, 2024
6 replies
3365 views

Hello everyone,

I’m trying to set up VLAN over IPSEC using VXLAN on my FortiGate, but I’m facing issues where the tunnel doesn’t seem to work as expected.

The tunnel comes up, but traffic from the VLAN doesn’t seem to pass through. I’ve tried troubleshooting using various methods, but I haven’t been able to resolve the issue.

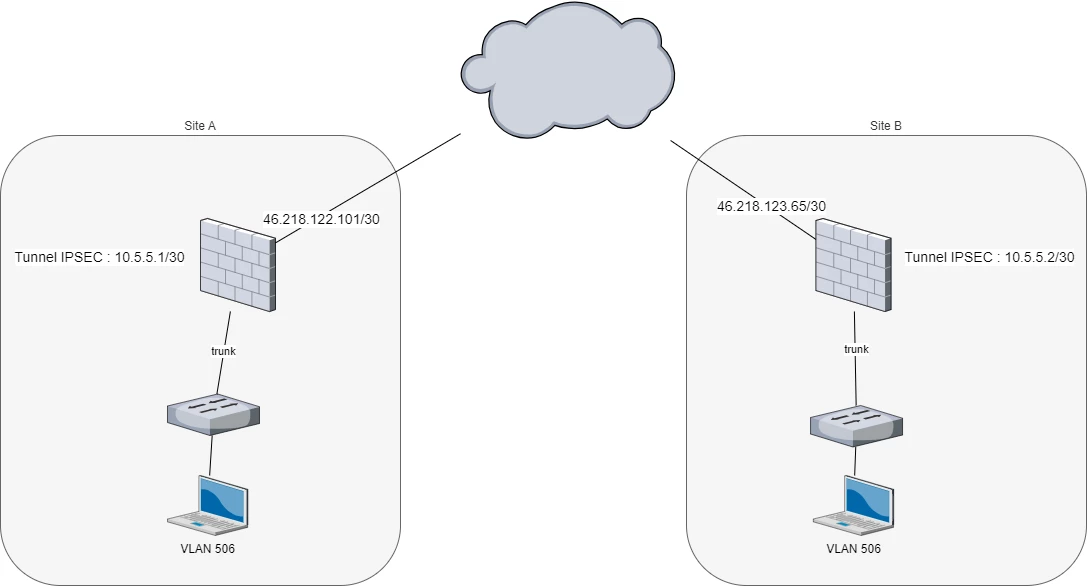

VXLAN Fortigate.drawio.png

Here’s the configuration I’m using for VXLAN 506:

On site A :

config system interface     edit "IPSEC_VXLAN"         set vdom "VDOM1"         set ip 10.5.5.1 255.255.255.255         set allowaccess ping         set type tunnel         set remote-ip 10.5.5.2 255.255.255.252         set snmp-index 42         set interface "vlnk_HYP0"     next end config system interface     edit "VLAN_506"         set vdom "VDOM1"         set role lan         set snmp-index 506         set interface "port1"         set vlanid 506     next end config system vxlan     edit "VXLAN_506"         set interface "IPSEC_VXLAN"         set vni 506         set remote-ip "10.5.5.2"     next end config system switch-interface     edit "VXLAN506-SW"         set vdom "VDOM1"         set member "VLAN_506" "VXLAN_506"     next end config system interface     edit "VXLAN506-SW"         set vdom "VDOM1"         set ip 10.112.7.254 255.255.255.0         set allowaccess ping         set type switch         set lldp-reception enable         set lldp-transmission enable         set role lan         set snmp-index 23         set ip-managed-by-fortiipam disable     next end

On site B :

config system interface     edit "IPSEC_VXLAN"         set vdom "VDOM1"         set ip 10.5.5.2 255.255.255.255         set allowaccess ping         set type tunnel         set remote-ip 10.5.5.1 255.255.255.252         set snmp-index 42         set interface "vlnk_HYP0"     next end config system interface     edit "VLAN_506"         set vdom "VDOM1"         set role lan         set snmp-index 506         set interface "port1"         set vlanid 506     next end config system vxlan     edit "VXLAN_506"         set interface "IPSEC_VXLAN"         set vni 506         set remote-ip "10.5.5.1"     next end config system switch-interface     edit "VXLAN506-SW"         set vdom "VDOM1"         set member "VLAN_506" "VXLAN_506"     next end config system interface     edit "VXLAN506-SW"         set vdom "VDOM1"         set ip 10.112.7.254 255.255.255.0         set allowaccess ping         set type switch         set lldp-reception enable         set lldp-transmission enable         set role lan         set snmp-index 23         set ip-managed-by-fortiipam disable     next end

I try to ping a machine in VLAN 506 from site A (a2:43:6b:c4:a9:23) to site B (ca:3a:14:30:9a:3a)

It don't work

When I run diagnose sys vxlan fdb list VXLAN_506 on each side, I view :

On site A :

diagnose sys vxlan fdb list VXLAN_506 mac=00:00:00:00:00:00 state=0x0082 remote_ip=10.5.5.2 port=4789 vni=506 ifindex=66 mac=00:09:0f:09:00:00 state=0x0002 remote_ip=10.5.5.2 port=4789 vni=506 ifindex=66 mac=ca:3a:14:30:9a:3a state=0x0002 remote_ip=10.5.5.2 port=4789 vni=506 ifindex=66

On site B :

diagnose sys vxlan fdb list VXLAN_506 mac=00:00:00:00:00:00 state=0x0082 remote_ip=10.5.5.1 port=4789 vni=506 ifindex=112 mac=0e:32:0f:49:db:46 state=0x0002 remote_ip=10.5.5.1 port=4789 vni=506 ifindex=112

Mac addresse of Site A Server is not present in site B table...

I think it's the cause of my problem, but why ?

Can anyone help me to debug ?

Thanks !

Best answer by 5q46n2te8jPWJY

Hi,

I solved my problem myself, I have VDOM in my conf, I had to define the Ethernet type on each vdom.

Since it was done, it works perfectly!

dbhavsar

Staff

Hello @5q46n2te8jPWJY ,

- under the config system switch-interface, can you check for the following command:
set intra-switch-policy implicit

Reference article:
https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-setup-a-VXLAN-over-IPsec-deployment/ta-p/297665

Also check for the firewall policies.

5q46n2te8jPWJYAuthor

Explorer II

Hello,

Thank you for your reply. Before looking your command, I first checked if the Mac address was still missing from table. It appeared in the meantime.

However, I still can't ping between my 2 sites.

I added your command because it wasn't there, but it didn't change anything.

Do you have another idea ?

dbhavsar

Staff

Hi @5q46n2te8jPWJY ,

Have you checked the firewall policies? or run the following debugs and see if the traffic is leaving the FGT or not:
get router info routing-table details <source-ip>
get router info routing-table details <destination-ip>
di de reset
diagnose debug flow filter addr xx.xx.xx.xx yy.yy.yy.yy and <--- xx is source-IP and yy is destination-ip
di de flow filter proto 1
diagnose debug flow show function enable
diagnose debug flow show iprope enable
diagnose debug console timestamp enable
diagnose debug flow trace start 999
diagnose debug enable

5q46n2te8jPWJYAuthor

Explorer II

Here the output from site A

get router info routing-table details 10.112.7.1 (Site A server address)  Routing table for VRF=0 Routing entry for 10.112.7.0/24   Known via "connected", distance 0, metric 0, best   * is directly connected, VXLAN506-SW

get router info routing-table details 10.112.7.7 (Site B server address)  Routing table for VRF=0 Routing entry for 10.112.7.0/24   Known via "connected", distance 0, metric 0, best   * is directly connected, VXLAN506-SW

I also run from site A

diagnose debug reset diagnose debug flow filter addr 10.112.7.1 diagnose debug enable

and

diagnose debug reset diagnose debug flow filter addr 10.112.7.7 diagnose debug enable

I have nothing in console... the same on site B...

dbhavsar

Staff

Hello @5q46n2te8jPWJY ,

- Have you tried pinging destination while the debugs were running on the device? Or I would suggest to open a TAC case to further dig into this issue.

5q46n2te8jPWJYAuthor

Explorer II

Yes, of course ;)

I'll open TAC case

Thank you for your help

5q46n2te8jPWJYAuthorAnswer

Explorer II

Hi,

I solved my problem myself, I have VDOM in my conf, I had to define the Ethernet type on each vdom.

Since it was done, it works perfectly!

ricky_andre_76

New Member

what do you mean exactly ? what commands did you type in to define Ethernet type on each vdom ?

5q46n2te8jPWJYAuthor

Explorer II

config global     config system vdom-link         edit "<vdom-link-name>"             set type ethernet         next     end

https://community.fortinet.com/t5/FortiGate/Technical-Tip-VXLAN-over-IPSEC-inter-VDOM-behavior/ta-p/231845
