VRRP MAC pointed to wrong port

  • September 5, 2023
  • 2 replies
  • 1707 views

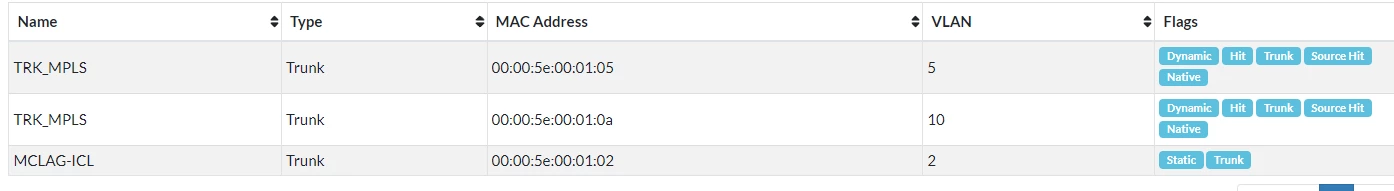

I have having a switching/routing problem where the standalone Fortiswitch thinks the MAC for the VRRP gateway is pointed to the wrong port.  I dont have a sticky turned on but I cant remove the address. MAC Entries is empty.  Copied config from port.  The vlan 2 MAC should be pointed to the same TRK_MPLS as the rest.



edit "MCLAG-ICL"

set native-vlan 4094

set allowed-vlans 1-4094

set dhcp-snooping trusted

set igmp-snooping-flood-reports enable

set mcast-snooping-flood-traffic enable

set snmp-index 76



So my question is how do I remove something that doesn't exist anywhere?  Support ticket opened for a month now with no resolution.






Adding switch model 1048E

Best answer by EM_Fortiuser

Thanks for the help but I was able to figure it out.

I manually entered the MAC address into the MAC Entry table which then wiped the MAC sticky session listed.  Then removed my manual entry and the switch dynamically learned the appropriate port and that vlan is now working correctly.  I believe this a result of a VRRP implementation that didnt work correctly.

2 replies

anignan
Staff
anignan
Staff
September 6, 2023

Hey @EM_Fortiuser

Can you share this from the switch

dia switch trunk list MCLAG-ICL



Thanks



    EM_Fortiuser
    EM_FortiuserAuthorAnswer
    Visitor III
    September 7, 2023

    Thanks for the help but I was able to figure it out.

    I manually entered the MAC address into the MAC Entry table which then wiped the MAC sticky session listed.  Then removed my manual entry and the switch dynamically learned the appropriate port and that vlan is now working correctly.  I believe this a result of a VRRP implementation that didnt work correctly.
