#VPN Site-To-Site. Issue When Create Multiple Tunnels

I have 3 Site A B C using FortiGate-VM (7.0 & 7.2). Three Site using 3 Ip Public for VPN gateway.

IPsec Tunnel between A <-> B is Up and running.

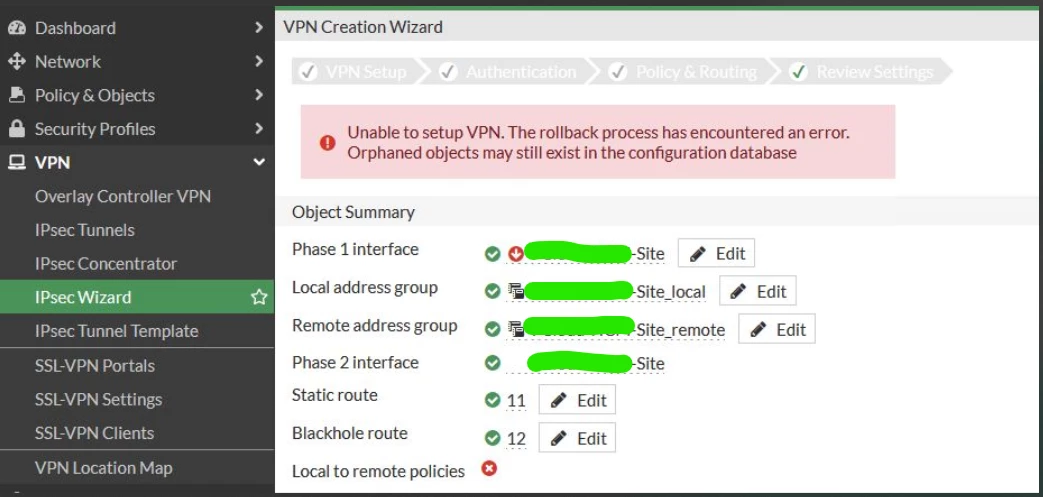

And I create another Tunnel A <-> C, But the Wizard show "Unable to setup VPN. The rollback process has encountered an error. Orphaned objects may still exist in the configuration database".

Screenshot 2023-03-17 130529.png

Donglv_
Donglv_Answer
Explorer
Mar 17, 2023 7:31 AM UTC

Thanks. I found the problem. Bescause The Firewall policies have reach the maximum entries then the VPN tunnel cannot create more VPN policies.

5 replies

funkylicious
SuperUser
SuperUser
Mar 17, 2023 6:12 AM UTC

Have you tried converting into a custom tunnel and setting it up that way ?

"jack of all trades, master of none"
Donglv_
Donglv_Author
Explorer
Mar 17, 2023 6:13 AM UTC

Yes I already setting in custom tunnel same as the first tunnel



Donglv_
Donglv_AuthorAnswer
Explorer
Mar 17, 2023 7:31 AM UTC

Thanks. I found the problem. Bescause The Firewall policies have reach the maximum entries then the VPN tunnel cannot create more VPN policies.

funkylicious
SuperUser
SuperUser
Mar 17, 2023 8:01 AM UTC

You can workaround that with enabling multiple interface policies from feature visibility to help with your lab.

"jack of all trades, master of none"
