VPN multiple remote subnets SNAT to 1 NAT pool
Hello,
I have a Fortigate 100E using as firewall/VPN. I encounter the following problem:
Only one remote subnet gets translated (SNAT) on the fortigate, the second one doesn't get translated.
SEC (VPN) # diagnose sniffer packet any 'dst host 172.24.1.213' interfaces=[any] filters=[dst host 172.24.1.213] 16.538757 172.16.1.43.62586 -> 172.24.1.213.22: syn 3019323432 16.538863 10.150.10.103.62586 -> 172.24.1.213.22: syn 3019323432 16.538869 10.150.10.103.62586 -> 172.24.1.213.22: syn 3019323432 16.538875 10.150.10.103.62586 -> 172.24.1.213.22: syn 3019323432 16.556685 172.16.1.43.62586 -> 172.24.1.213.22: ack 533124325 16.556731 10.150.10.103.62586 -> 172.24.1.213.22: ack 533124325 16.556736 10.150.10.103.62586 -> 172.24.1.213.22: ack 533124325 16.556741 10.150.10.103.62586 -> 172.24.1.213.22: ack 533124325
SEC (VPN) # diagnose sniffer packet any 'dst host 172.24.1.213' interfaces=[any] filters=[dst host 151.236.128.213] 15.330363 192.168.1.71.1186 -> 172.24.1.213.22: syn 508999052 16.334103 192.168.1.71.1186 -> 172.24.1.213.22: syn 508999052 18.347741 192.168.1.71.1186 -> 172.24.1.213.22: syn 508999052 22.350150 192.168.1.71.1186 -> 172.24.1.213.22: syn 508999052

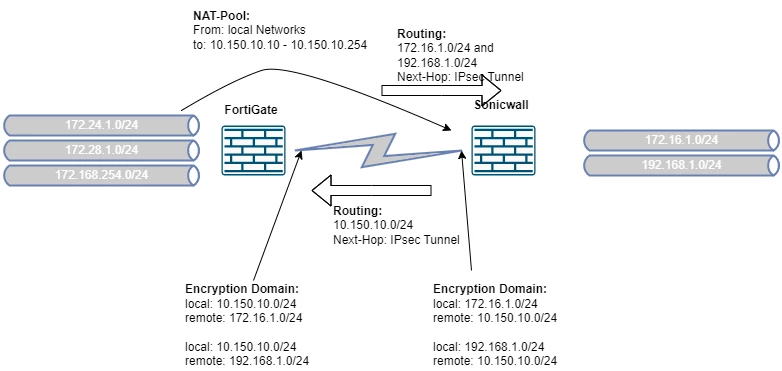

A remote site (sonicwall) has two subnets that needs to connect to the local site (fortigate 100E) with multiple subnets.
Remote subnets 172.16.1.0/24 and 192.168.1.0/24. These subnets are grouped in "Remote-SiteA-grp"
Local subnets 172.24.1.0/24, 172.28.1.0/24 and 192.168.254.0/24. These subnets are grouped in "Local-Application-grp"
On the fortigate I have a IP pool
Name: "SNAT-Remote-SiteA"
Type: Overload
External IP Range: 10.150.10.10 - 10.150.10.254
On the fortigate I configured the IPsec tunnel, the tunnel is UP.
Incoming Policy:
Name: From_L2L_Remote-SiteA
Incoming Interface: L2L_Remote-SiteA
Outgoing Interface: VPN-external
Source: Remote-SiteA-grp
Destination: Local-Application-grp
NAT: enabled
IP Pool Configuration: Use Dynamic IP Pool
Using pool: SNAT-Remote-SiteA
There is also an outgoing policy:
Name: To_L2L_Remote-SiteA
Incoming Interface: VPN-external
Outgoing Interface: L2L_Remote-SiteA
Source: Local-Application-grp
Destination: Remote-SiteA-grp
Any idea what goes wrong here?
