VPN L2TP on Fortigate 60F behind GPON modem

  • May 6, 2024
  • 2 replies
  • 1315 views

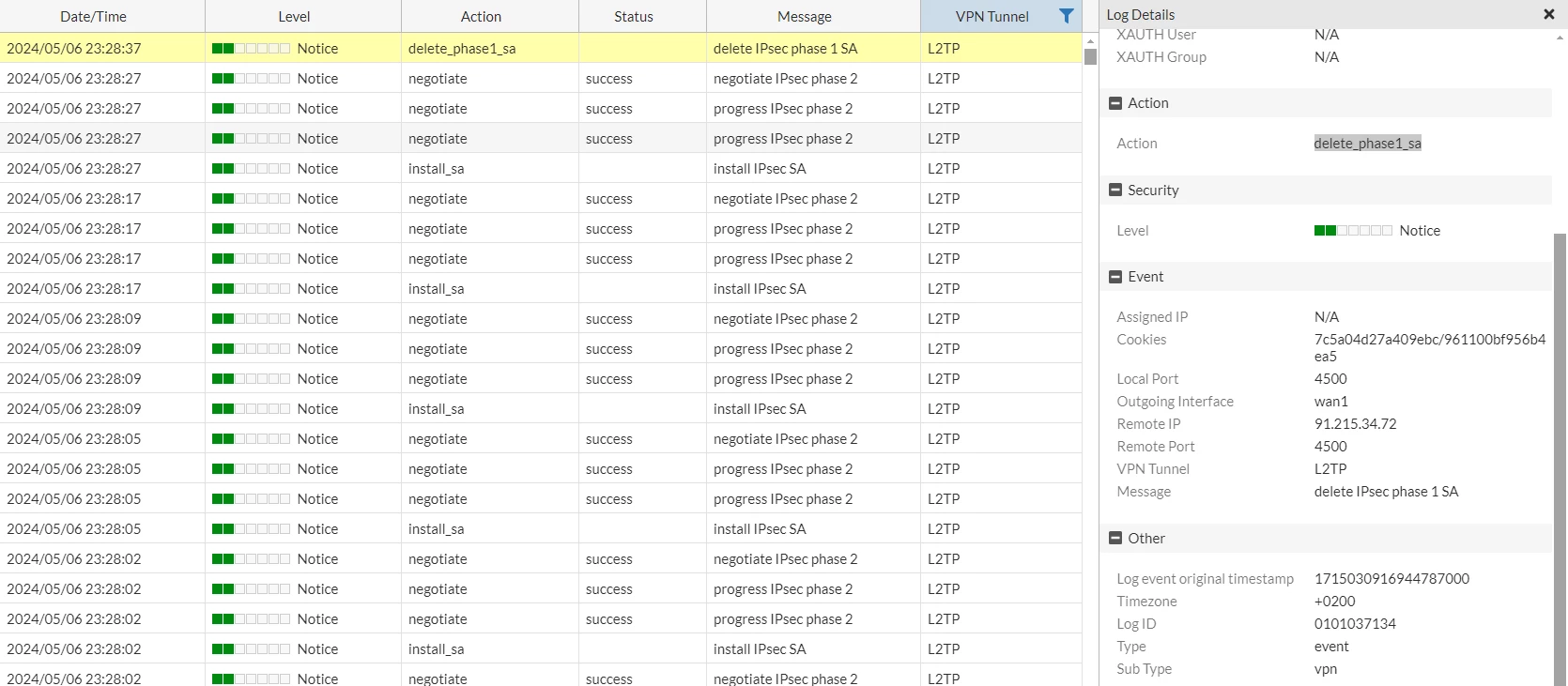

Hi, i have a problem with setting up L2TP Server (for native Windows Client). My Fortigate is behind GPON modem  (FG is in DMZ to forward all trafic). I have configured L2Tp according to manual - the vpn is setting up but after 20s it's down. In logs i have:



2024-05-06 23_35_58.png

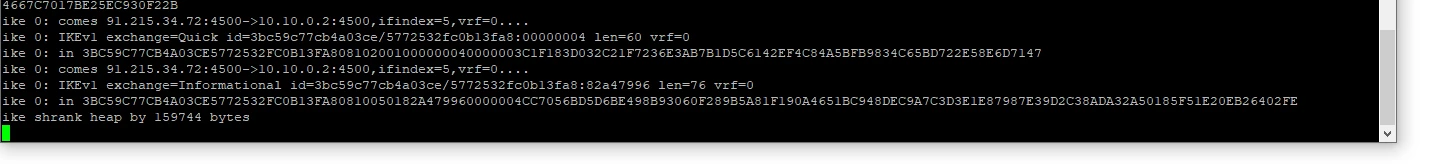

In debug i have:

2024-05-06 23_37_32.png



In WAN1 of Fortigate i have IP from the local subnet with the GPON modem (10.10.0.0), not the public IP from ISP.

The public IP is on GPON modem.

What can be the problem?

2 replies

abarushka
Staff
abarushka
Staff
May 7, 2024

Hello,



You may consider to collect IKE debug traces while the tunnel is going down by running the commands below:



diagnose debug application ike -1
diagnose debug enable

    ebilcari
    Staff
    ebilcari
    Staff
    May 7, 2024

    Since the public IP is on the modem did you configure the port forwarding to FGT (UDP: 500, 4500, 1701)?

    In my experience if you want to use the built in VPN client in Windows, it's better to use IKEv2, is much more stable than the old L2TP. This article shows how to use certificates for authentication, but it can be configured also to use credentials.

    Emirjon
