VPN IPSEC FORTIGATE - TELTONIKA RUT950

Forum|Forum|4 years ago
March 3, 2022
9 replies
19341 views

HI,

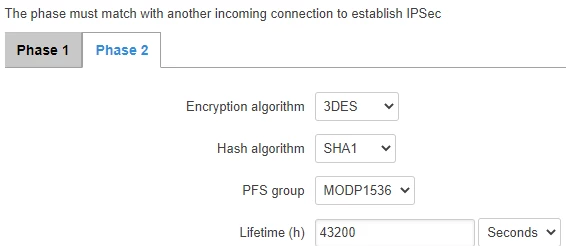

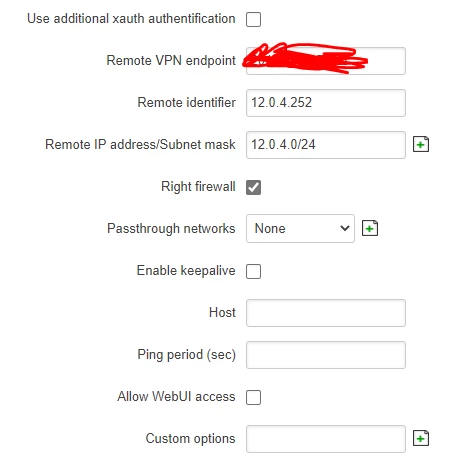

I'm trying to perform an ipsec between a fortigate device and a teltonika rut950, and I can't get it, I'm looking for an idea of why or if there is no compatibility

FortiGate

Best answer by Toshi_Esumi

What I can see in this IKE debug output is, despite what you showed on Teltonika side config, the router is initiating IKEv2 IPSec and the negotiation is successful all the way to the point the FGT side accepted and came up, then sent the reply back to the router. Then the router rejected.

I think the reason is you're using LAN side IP for identifier on the router's config. The FGT wouldn't check the received identifier unless you configured "peer ID" on the FGT side. But FGT doesn't send the identifier you configured on the router side unless you configure "local ID" on the FGT side.

First option I would try is to disable identification checking on the router side by like setting FQDN, and leave the FQDN config box empty, which I saw at Teltonika's KB.
https://wiki.teltonika-networks.com/view/IPsec_configuration_examples

Since this seems to be site-to-site, it wouldn't break anything without identification checking.

If you have to do it for security reason, you can try configuring peer ID/local ID on the FGT side to match the router side. There should be some FTNT KBs for that part of config but mostly for dialup IPSec situations.

Toshi

Vando_Pereira

Staff

Hello,

Do you get any phase up ? 1 or 2 ?

First we need to try to get phase 1 up, can both devices ping each other ?

Are they behind a NAT ?

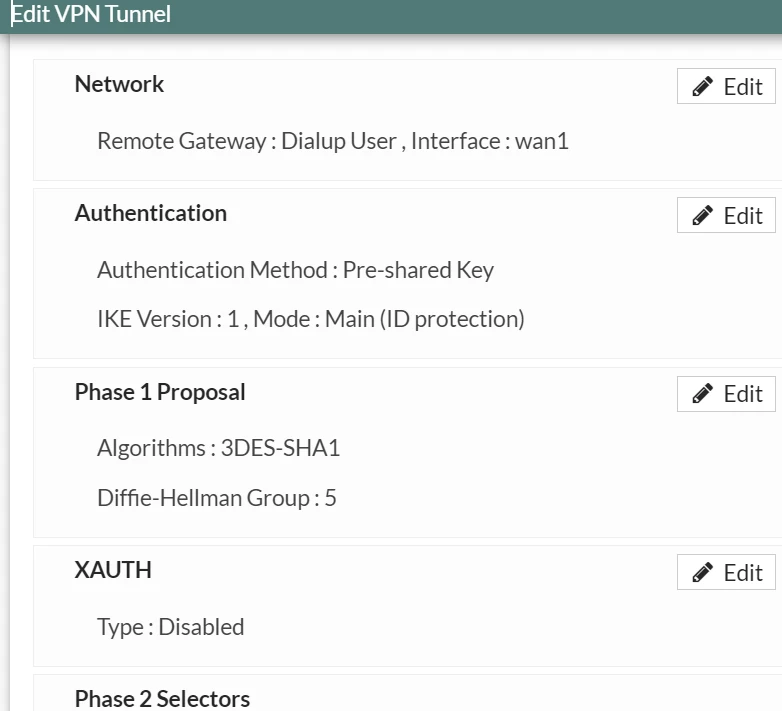

In the second image in the network part, you have "Dialup" selected, is the other device supposed to initiate the vpn tunnel creation process ?

You can use the command: diagnose debug application ike -1 , and diag debug enable. To see the IKE messages, and see if there is any incompatibility in phase 1.

Then you can use the commands to check phase2:

get vpn ipsec tunnel details --> info for active ipsec tunnels
get vpn ipsec stats tunnel --> some tunnel stats

One of the key points must be, to see what IKE parameters does the Fortigate recieve and try to make them equal in the fortigate.

Best regards.

SoGoAuthor

New Member

i check the status of ike negotiation I can see that the tunnel rises and the negotiations are successful, until at a certain point it falls

SoGoAuthor

New Member

The scenario is a Fortigate device with a public IP and a Teltonik cellular network device, which does not have a public IP, so I chose the dial up option. In the debug messages, I can see that ike negotiations begin and these are successful, dynamic tunnels are created, routes are added, until. ike 3:Teltonika_0:167: dec D8E1C348F9957B6BD40C8667F56292282E20250800000002000000282900000040000000800000018 ike 3:Teltonika_0:167: received informational request ike 3:Teltonika_0:167: processing notify type AUTHENTICATION_FAILED ike 3:Teltonika_0:167: AUTH rejected by initiator ike 3:Teltonika_0:167: schedule delete of IKE SA d8e1c348f9957b6b/d40c8667f5629228 ike 3:Teltonika_0:167: scheduled delete of IKE SA d8e1c348f9957b6b/d40c8667f5629228 ike 3:Teltonika_0: deleting IPsec SA with SPI c31d7597 ike 3:Teltonika_0:Teltonika: deleted IPsec SA with SPI c31d7597, SA count: 0 ike 3:Teltonika:25: del route 30.0.10.0/255.255.255.0 oif Teltonika(47) metric 15 priority 0 ike 3:Teltonika_0: sending SNMP tunnel DOWN trap for Teltonika ike 3:Teltonika_0:Teltonika: delete

Toshi_Esumi

SuperUser

Did you remove the ike debug output at your "FW-LAB" after posting once? I saw it in email update but don't see it here.
But that output was for a different VPN coming from different IP with IKEv2.

You need to specify the peer IP when you run IKE debug with "diag vpn ike log-filter src-addr4 <peer_IP>".

Toshi

Toshi_Esumi

SuperUser

Ok, now much better.
AUTH rejected means either identity or prehsare key is not matching.

Toshi_EsumiAnswer

SuperUser

What I can see in this IKE debug output is, despite what you showed on Teltonika side config, the router is initiating IKEv2 IPSec and the negotiation is successful all the way to the point the FGT side accepted and came up, then sent the reply back to the router. Then the router rejected.

I think the reason is you're using LAN side IP for identifier on the router's config. The FGT wouldn't check the received identifier unless you configured "peer ID" on the FGT side. But FGT doesn't send the identifier you configured on the router side unless you configure "local ID" on the FGT side.

First option I would try is to disable identification checking on the router side by like setting FQDN, and leave the FQDN config box empty, which I saw at Teltonika's KB.
https://wiki.teltonika-networks.com/view/IPsec_configuration_examples

Since this seems to be site-to-site, it wouldn't break anything without identification checking.

If you have to do it for security reason, you can try configuring peer ID/local ID on the FGT side to match the router side. There should be some FTNT KBs for that part of config but mostly for dialup IPSec situations.

Toshi

SoGoAuthor

New Member

thanks Toshi, now is working
