VPN FortiGate to Cisco

Forum|Forum|15 years ago
June 17, 2010
4 replies
14375 views

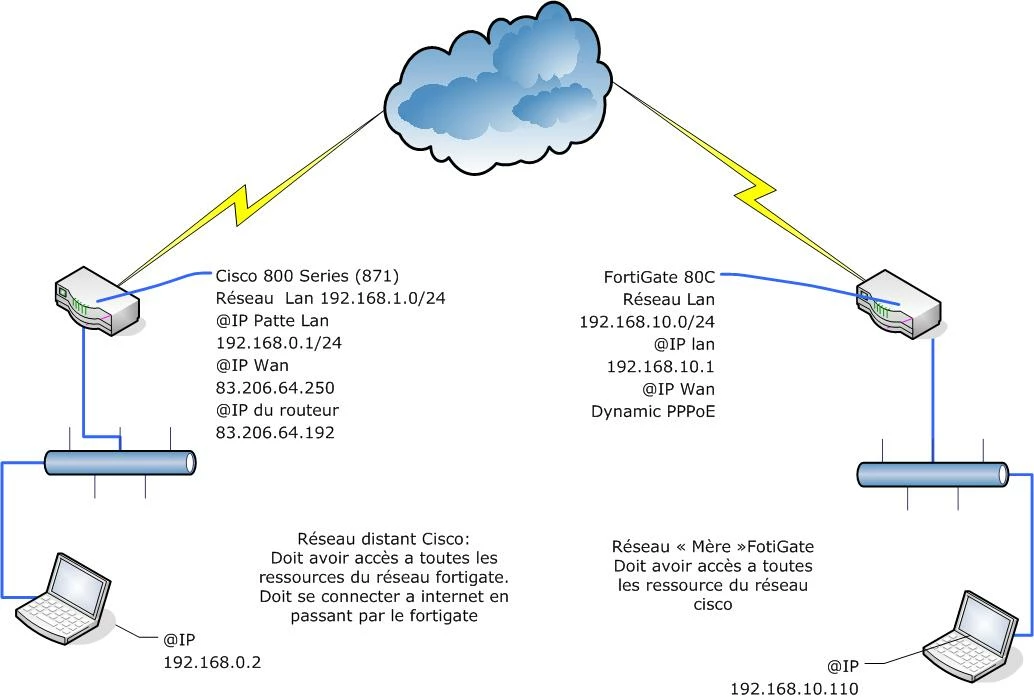

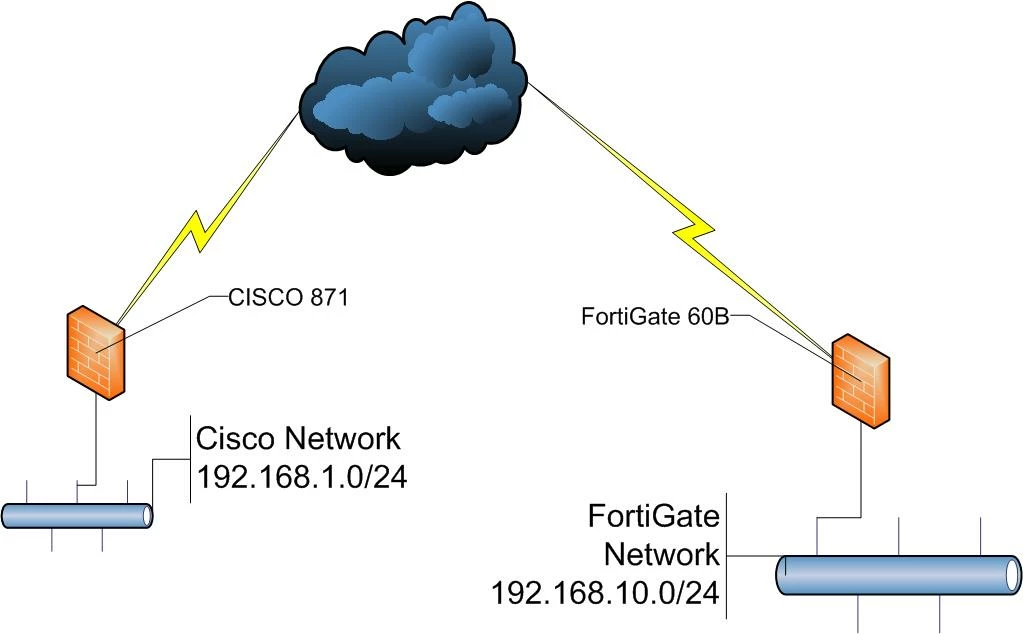

Good morning, I' ve a problem to configure a VPN between FortiGate 80C and Cisco 871 Nowadays the tunnel is up Cisco can ping the FortiGate Network Fortigate can ping the cisco Network Every conexion are established (RDP FTP .. ) How I can make the Internet traffic of cisco network use vpn connexion to connect to internet with the fortigate ? Sorry for my bad english... Have a nice day!

emnoc

New Member

Are you sure you want to do this? You will need to some how apply an ip-address gatway of the cisco 871 to use a next-hop at the fortigate for routing the internet traffic. If you where going todo that, you would also have top modify the ACL to not encrypted the packets setting up the tunnel between 871 to the FGT. e.g ( crypto map ACL ) ! ip access-list ext mytunnel-2-fgt deny ip host " cisco 871" host " fgt" ip access-list ext mytunnel-2-fgt permit 192.168.1.0 0.0.0.255 192.168.10.0 0.0.0.255 ip access-list ext mytunnel-2-fgt permiy 192.168.1.0 0.0.0.255 0.0.0.0 255.255.255.255 ! For the 871 to FGT, you would also need a host specific route so it would know how to get the tunnel up to begin with. So you have alot of things to do and figure out in order to get this working and that would be the 1st hurdles to overcome. Without an ip_address reachable as next-hop for the cisco,. I don' t see how you can get pass that hurdle. The 871 is only going to route to a reachable next-hop. I personally would just place a firewall at the cisco-network subnet.Sale the 871 and purchase a local firewall & then construct a site2site vpn between the 2 subnets.

A

Anonymous_UserAuthor

Contributor

Hi! Sorry for responding late thank for the 1st solution but it don' t work since yesterday i rebuilt the VPN because i had some problems now the tunnel is up and clean!!! ping ftp rdp is ok but it always imposible to force the web traffic to take the tunnel .. I post the configuration file of cisco and fortigate !This is the running config of the router: 192.168.1.1 !---------------------------------------------------------------------------- !version 12.4 no service pad service timestamps debug datetime msec service timestamps log datetime msec no service password-encryption ! hostname yourname ! boot-start-marker boot-end-marker ! logging buffered 51200 ! no aaa new-model ! crypto pki trustpoint TP-self-signed-3265758045 enrollment selfsigned subject-name cn=IOS-Self-Signed-Certificate-3265758045 revocation-check none rsakeypair TP-self-signed-3265758045 ! ! crypto pki certificate chain TP-self-signed-3265758045 certificate self-signed 01 3082024F 308201B8 A0030201 02020101 300D0609 2A864886 F70D0101 04050030 31312F30 2D060355 04031326 494F532D 53656C66 2D536967 6E65642D 43657274 69666963 6174652D 33323635 37353830 3435301E 170D3032 30333031 30323437 31345A17 0D323030 31303130 30303030 305A3031 312F302D 06035504 03132649 4F532D53 656C662D 5369676E 65642D43 65727469 66696361 74652D33 32363537 35383034 3530819F 300D0609 2A864886 F70D0101 01050003 818D0030 81890281 8100B0C3 5FCF50AA 3E3E443F 7B372025 8B65ACF0 52F76686 59561C9F 1E1EDF81 012EB734 44F6BE8E F10508D5 6C0BD62C 39DF2ED2 5C584A58 8DECC2BA 91952B83 69D721E6 4BEC9BEE 29BE9C1C 7CB6D675 DCDD0DC5 251B225F CC30F23C 2ADF317A 6E540C74 E14ADCBC 06CFE4F8 D99C5FD3 33A95393 6C3037AD 6134AB92 4A54FD89 19770203 010001A3 77307530 0F060355 1D130101 FF040530 030101FF 30220603 551D1104 1B301982 17796F75 726E616D 652E796F 7572646F 6D61696E 2E636F6D 301F0603 551D2304 18301680 145A7D38 A02D5774 51D38717 0010D90C 6A5F2808 74301D06 03551D0E 04160414 5A7D38A0 2D577451 D3871700 10D90C6A 5F280874 300D0609 2A864886 F70D0101 04050003 8181005D E6CD3555 42E95422 93DC49B2 7DF4C7D7 EC12974E FB1C147F E84E16F5 A6B727F5 D359AFB0 2E4A841C 39AF2BC3 300F5E58 F94BFB67 24294493 7206C632 9810DE2B DD4D7A12 6C9547BD 935C9394 E5B611D3 D4CC931D 22194D13 FCD0FFF0 7C1DACAD 55926EFA 430128A4 5858CBE2 CF456592 A11B9BE4 ACAB5FD3 1503F091 58B145 quit dot11 syslog ip cef ! ! no ip dhcp use vrf connected ip dhcp excluded-address 10.10.10.1 ip dhcp excluded-address 192.168.1.251 192.168.1.254 ! ip dhcp pool sdm-pool import all network 10.10.10.0 255.255.255.248 default-router 10.10.10.1 lease 0 2 ! ip dhcp pool sdm-pool1 network 192.168.1.0 255.255.255.0 dns-server 8.8.8.8 8.8.4.4 default-router 192.168.1.1 ! ! no ip domain lookup ip domain name yourdomain.com ! multilink bundle-name authenticated ! ! username admin privilege 15 secret 5 $1$y9cc$zDS99mPOV8EGAgdU9nnNw. ! ! crypto isakmp policy 1 encr 3des authentication pre-share group 2 crypto isakmp key 0123456789 address 0.0.0.0 0.0.0.0 ! ! crypto ipsec transform-set ESP-3DES-SHA esp-3des esp-sha-hmac ! crypto dynamic-map SDM_DYNMAP_1 1 set transform-set ESP-3DES-SHA match address 100 ! ! crypto map SDM_CMAP_1 65535 ipsec-isakmp dynamic SDM_DYNMAP_1 ! archive log config hidekeys ! ! ! class-map type inspect match-any SDM_SSH match access-group name SDM_SSH class-map type inspect match-any SDM_HTTPS match access-group name SDM_HTTPS class-map type inspect match-any SDM_SHELL match access-group name SDM_SHELL ! ! ! ! interface FastEthernet0 ! interface FastEthernet1 switchport access vlan 2 ! interface FastEthernet2 switchport access vlan 2 ! interface FastEthernet3 switchport access vlan 2 ! interface FastEthernet4 description $FW_OUTSIDE$$ETH-LAN$ ip address 83.206.64.250 255.255.255.0 ip nat outside ip virtual-reassembly duplex auto speed auto crypto map SDM_CMAP_1 ! interface Vlan1 description $ETH-SW-LAUNCH$$INTF-INFO-HWIC 4ESW$$FW_INSIDE$ ip address 10.10.10.1 255.255.255.248 ip virtual-reassembly ip tcp adjust-mss 1452 ! interface Vlan2 description $FW_INSIDE$ ip address 192.168.1.1 255.255.255.0 ip nbar protocol-discovery ip nat inside ip virtual-reassembly ! ip forward-protocol nd ip route 0.0.0.0 0.0.0.0 83.206.64.192 permanent ! ! ip http server ip http access-class 23 ip http authentication local ip http secure-server ip http timeout-policy idle 60 life 86400 requests 10000 ip nat inside source route-map SDM_RMAP_2 interface FastEthernet4 overload ! ip access-list extended SDM_HTTPS remark SDM_ACL Category=1 permit tcp any any eq 443 ip access-list extended SDM_SHELL remark SDM_ACL Category=1 permit tcp any any eq cmd ip access-list extended SDM_SSH remark SDM_ACL Category=1 permit tcp any any eq 22 ! logging trap debugging access-list 1 remark SDM_ACL Category=2 access-list 1 permit 10.10.10.0 0.0.0.7 access-list 1 permit 192.168.1.0 0.0.0.255 access-list 2 remark SDM_ACL Category=2 access-list 2 permit 192.168.1.0 0.0.0.255 access-list 100 remark SDM_ACL Category=4 access-list 100 remark IPSec Rule access-list 100 permit ip 192.168.1.0 0.0.0.255 192.168.10.0 0.0.0.255 access-list 101 remark SDM_ACL Category=2 access-list 101 permit ip 192.168.1.0 0.0.0.255 any access-list 101 permit ip 10.10.10.0 0.0.0.7 any access-list 102 remark SDM_ACL Category=2 access-list 102 remark IPSec Rule access-list 102 deny ip 192.168.1.0 0.0.0.255 192.168.10.0 0.0.0.255 access-list 102 permit ip 192.168.1.0 0.0.0.255 any no cdp run ! ! ! route-map SDM_RMAP_1 permit 1 match ip address 101 ! route-map SDM_RMAP_2 permit 1 match ip address 102 ! ! control-plane ! banner login ^C ----------------------------------------------------------------------- Cisco Router and Security Device Manager (SDM) is installed on this device. This feature requires the one-time use of the username " cisco" with the password " cisco" . The default username and password have a privilege level of 15. Please change these publicly known initial credentials using SDM or the IOS CLI. Here are the Cisco IOS commands. username <myuser> privilege 15 secret 0 <mypassword> no username cisco Replace <myuser> and <mypassword> with the username and password you want to use. For more information about SDM please follow the instructions in the QUICK START GUIDE for your router or go to http://www.cisco.com/go/sdm ----------------------------------------------------------------------- ^C ! line con 0 login local no modem enable line aux 0 line vty 0 4 privilege level 15 login local transport input telnet ssh ! scheduler max-task-time 5000 end *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-* #config-version=FGT80C-4.00-FW-build196-100319:opmode=0:vdom=0:user=admin #conf_file_ver=0 #buildno=0196 config system global set access-banner disable set admin-https-pki-required disable set admin-lockout-duration 60 set admin-lockout-threshold 3 set admin-maintainer enable set admin-port 80 set admin-scp disable set admin-server-cert " self-sign" set admin-sport 443 set admin-ssh-port 22 set admin-ssh-v1 disable set admin-telnet-port 23 set admintimeout 480 set anti-replay strict set auth-cert " self-sign" set auth-http-port 1000 set auth-https-port 1003 set auth-keepalive disable set auth-policy-exact-match enable set av-failopen pass set av-failopen-session disable set batch-cmdb enable set cfg-save automatic set check-protocol-header loose set check-reset-range disable set clt-cert-req disable set daily-restart disable set detection-summary enable set dst disable set endpoint-control-portal-port 8009 set failtime 5 set fds-statistics enable set fsae-burst-size 300 set fsae-rate-limit 100 set gui-ipv6 disable set gui-lines-per-page 50 set hostname " FGT80C3909639524" set http-obfuscate modified set ie6workaround disable set internal-switch-mode switch set interval 5 set ip-src-port-range 1024-25000 set language english set ldapconntimeout 500 set log-user-in-upper disable set loglocaldeny disable set management-vdom " root" set phase1-rekey enable set radius-port 1812 set refresh 0 set registration-notification enable set remoteauthtimeout 5 set reset-sessionless-tcp disable set send-pmtu-icmp enable set service-expire-notification enable set sslvpn-sport 10443 set strong-crypto disable set tcp-halfclose-timer 120 set tcp-halfopen-timer 60 set tcp-option enable set tcp-timewait-timer 120 set timezone 04 set tos-based-priority high set udp-idle-timer 180 set user-server-cert " self-sign" set vdom-admin disable set vip-arp-range restricted set wireless-controller enable set wireless-controller-port 5246 set fds-statistics-period 60 end config system accprofile edit " prof_admin" set admingrp read-write set authgrp read-write set endpoint-control-grp read-write set fwgrp read-write set loggrp read-write unset menu-file set mntgrp read-write set netgrp read-write set routegrp read-write set sysgrp read-write set updategrp read-write set utmgrp read-write set vpngrp read-write next end config system interface edit " wan1" set vdom " root" set mode pppoe set allowaccess ping https set type physical set username " fti/6rkwhwe" set password ENC h6Y1JIXp4ej8UgEckpi6s/jsIRjogWvl2OEWrprHY9VZEFsndmsWVxzuZDCQzkPFhLXDQiRc2jH1++UJPsGjQlV8kmw1FcoyP8zEpQx2JtJX2Nt2 set defaultgw enable next edit " wan2" set vdom " root" set allowaccess ping set type physical next edit " modem" set vdom " root" next edit " ssl.root" set vdom " root" set type tunnel next edit " internal" set vdom " root" set ip 192.168.10.1 255.255.255.0 set allowaccess ping https ssh http telnet set dns-query recursive set type physical next edit " dmz" set vdom " root" set type physical next edit " To_cisco" set vdom " root" set type tunnel set interface " wan1" next end config system admin edit " admin" set accprofile " super_admin" set vdom " root" config dashboard edit " sysinfo" set column 1 next edit " licinfo" set column 1 next edit " jsconsole" set column 1 next edit " sysres" set column 1 next edit " sysop" set column 2 next edit " alert" set column 2 next edit " statistics" set column 2 next end next end config system ha set group-id 0 set group-name " FGT-HA" set password ENC IfF7fYOmvnTMc1CeaJgLkdGEldtsrsQto8UpoA+5gl6ytAX1onE1rDdWGx4Tt/czLrMJ9EhHFiQxzupHU93+69gOH33fW/yK1U5H4L4xFdWauzfo set hbdev " dmz" 50 " wan1" 50 set route-ttl 10 set route-wait 0 set route-hold 10 set sync-config enable set encryption disable set authentication disable set hb-interval 2 set hb-lost-threshold 6 set helo-holddown 20 set arps 5 set arps-interval 8 set session-pickup disable set link-failed-signal disable set uninterruptable-upgrade enable set override disable set priority 128 set pingserver-failover-threshold 0 set pingserver-flip-timeout 60 end config system dns set primary 208.91.112.53 set secondary 208.91.112.52 set domain ' ' set ip6-primary :: set ip6-secondary :: set dns-cache-limit 5000 set dns-cache-ttl 1800 set cache-notfound-responses disable end config system replacemsg mail " email-block" set buffer " Potentially Dangerous Attachment Removed. The file \" %%FILE%%\" has been blocked. File quarantined as: \" %%QUARFILENAME%%\" ." set header 8bit set format text end config system replacemsg mail " email-virus" set buffer " Dangerous Attachment has been Removed. The file \" %%FILE%%\" has been removed because of a virus. It was infected with the \" %%VIRUS%%\" virus. File quarantined as: \" %%QUARFILENAME%%\" ." set header 8bit set format text end config system replacemsg mail " email-dlp" set buffer " This email has been blocked. The email message appeared to contain a data leak." set header 8bit set format text end config system replacemsg mail " email-dlp-subject" set buffer " Data leak detected!" set header 8bit set format text end config system replacemsg mail " email-dlp-ban" set buffer " This email has been blocked because a data leak was detected. Please contact your admin to be re-enabled." set header 8bit set format text end config system replacemsg mail " email-dlp-ban-sender" set buffer " This email has been blocked because the sender has sent a data leak. Please contact your admin to be re-enabled." set header 8bit set format text end config system replacemsg mail " email-filesize" set buffer " This email has been blocked. The email message is larger than the configured file size limit." set header 8bit set format text end config system replacemsg mail " partial" set buffer " Fragmented emails are blocked." set header 8bit set format text end config system replacemsg mail " smtp-block" set buffer " The file %%FILE%% has been blocked. File quarantined as: %%QUARFILENAME%%" set header none set format text end config system replacemsg mail " smtp-virus" set buffer " The file %%FILE%% has been infected with the virus %%VIRUS%% File quarantined as %%QUARFILENAME%%" set header none set format text end config system replacemsg mail " smtp-filesize" set buffer " This message is larger than the configured limit and has been blocked." set header none set format text end config system replacemsg http " bannedword" set buffer " <HTML><BODY>The page you requested has been blocked because it contains a banned word. URL = http://%%URL%%</BODY></HTML>" set header http set format html end config system replacemsg http " url-block" set buffer " <HTML><BODY>The URL you requested has been blocked. URL = %%URL%%</BODY></HTML>" set header http set format html end config system replacemsg http " infcache-block" set buffer " <HTML><BODY><H2>High security alert!!!</h2><p>The URL you requested was previously found to be infected.</p><p>URL = http://%%URL%%</p></BODY></HTML>" set header http set format html end config system replacemsg http " http-block" set buffer " <HTML> <BODY> <h2>High security alert!!!</h2> <p>You are not permitted to download the file \" %%FILE%%\" .</p> <p>URL = http://%%URL%%</p> </BODY> </HTML>" set header http set format html end config system replacemsg http " http-virus" set buffer " <HTML><BODY><h2>High security alert!!!</h2><p>You are not permitted to download the file \" %%FILE%%\" because it is infected with the virus \" %%VIRUS%%\" . </p><p>URL = http://%%URL%%</p><p>File quarantined as: %%QUARFILENAME%%.</p></BODY></HTML>" set header http set format html end config system replacemsg http " http-filesize" set buffer " <HTML><BODY> <h2>Attention!!!</h2><p>The file \" %%FILE%%\" has been blocked. The file is larger than the configured file size limit.</p> <p>URL = http://%%URL%%</p> </BODY></HTML>" set header http set format html end config system replacemsg http " http-dlp" set buffer " <HTML><BODY> <h2>Attention!!!</h2><p>The transfer attempted appeared to contain a data leak!</p><p>URL = http://%%URL%%</p> </BODY></HTML>" set header http set format html end config system replacemsg http " http-dlp-ban" set buffer " <HTML><BODY> <h2>Attention!!!</h2><p>Your user authentication or IP address has been banned due to a detected data leak. You need an admin to re-enable your computer</p><p>URL = http://%%URL%%</p> </BODY></HTML>" set header http set format html end config system replacemsg http " http-contenttypeblock" set buffer " <HTML><BODY> <h2>Attention!!!</h2><p>Content-type not permitted.</BODY></HTML>" set header http set format html end config system replacemsg http " http-client-block" set buffer " <HTML> <BODY> <h2>High security alert!!!</h2> <p>You are not permitted to upload the file \" %%FILE%%\" .</p> <p>URL = http://%%URL%%</p> </BODY> </HTML>" set header http set format html end config system replacemsg http " http-client-virus" set buffer " <HTML><BODY><h2>High security alert!!!</h2><p>You are not permitted to upload the file \" %%FILE%%\" because it is infected with the virus \" %%VIRUS%%\" . </p><p>URL = http://%%URL%%</p><p>File quarantined as: %%QUARFILENAME%%.</p></BODY></HTML>" set header http set format html end config system replacemsg http " http-client-filesize" set buffer " <HTML><BODY> <h2>Attention!!!</h2><p>Your request has been blocked. The request is larger than the configured file size limit.</p> <p>URL = http://%%URL%%</p> </BODY></HTML>" set header http set format html end config system replacemsg http " http-client-bannedword" set buffer " <HTML><BODY>The page you uploaded has been blocked because it contains a banned word. URL = http://%%URL%%</BODY></HTML>" set header http set format html end config system replacemsg http " http-post-block" set buffer " <HTML><BODY>HTTP POST action is not allowed for policy reasons.</BODY></HTML>" set header http set format html end config system replacemsg ftp " ftp-dl-infected" set buffer " Transfer failed. The file %%FILE%% is infected with the virus %%VIRUS%%. File quarantined as %%QUARFILENAME%%." set header none set format text end config system replacemsg ftp " ftp-dl-blocked" set buffer " Transfer failed. You are not permitted to transfer the file \" %%FILE%%\" ." set header none set format text end config system replacemsg ftp " ftp-dl-filesize" set buffer " File size limit exceeded." set header none set format text end config system replacemsg ftp " ftp-dl-dlp" set buffer " Transfer failed. Data leak detected \" %%FILE%%\" ." set header none set format text end config system replacemsg ftp " ftp-dl-dlp-ban" set buffer " Transfer failed. You are banned from transmitting due to a detected data leak. Contact your admin to be re-enabled." set header none set format text end config system replacemsg nntp " nntp-dl-infected" set buffer " Dangerous Attachment has been Removed. The file \" %%FILE%%\" has been removed because of a virus. It was infected with the \" %%VIRUS%%\" virus. File quarantined as: \" %%QUARFILENAME%%\" ." set header none set format text end config system replacemsg nntp " nntp-dl-blocked" set buffer " The file %%FILE%% has been blocked. File quarantined as: %%QUARFILENAME%%" set header none set format text end config system replacemsg nntp " nntp-dl-filesize" set buffer " This article has been blocked. The article is larger than the configured file size limit." set header none set format text end config system replacemsg nntp " nntp-dlp" set buffer " This article has been blocked. It appears to contain a data leak." set header none set format text end config system replacemsg nntp " nntp-dlp-subject" set buffer " Data leak detected!" set header none set format text end config system replacemsg nntp " nntp-dlp-ban" set buffer " this article has been blocked. The user is banned for sending a data leak. Please contact your admin to be re-enabled." set header none set format text end config system replacemsg fortiguard-wf " ftgd-block" set buffer " <html><head><title>Web Filter Violation</title></head><body><font size=2><table width=\" 100%\" ><tr><td>%%FORTIGUARD_WF%%</td><td align=\" right\" >%%FORTINET%%</td></tr><tr><td bgcolor=#ff6600 align=\" center\" colspan=2><font color=#ffffff><b>Web Page Blocked</b></font></td></tr></table><br><br>You have tried to access a web page which is in violation of your internet usage policy.<br><br>URL: %%URL%%<br>Category: %%CATEGORY%%<br><br>To have the rating of this web page re-evaluated <u><a href=\" %%FTGD_RE_EVAL%%\" >please click here</a></u>.<br>%%OVERRIDE%%<br><hr><br>Powered by %%SERVICE%%.</font></body></html>" set header http set format html end config system replacemsg fortiguard-wf " http-err" set buffer " <html><head><title>%%HTTP_ERR_CODE%% %%HTTP_ERR_DESC%%</title></head><body><font size=2><table width=\" 100%\" ><tr><td>%%FORTIGUARD_WF%%</td><td align=\" right\" >%%FORTINET%%</td></tr><tr><td bgcolor=#3300cc align=\" center\" colspan=2><font color=#ffffff><b>%%HTTP_ERR_CODE%% %%HTTP_ERR_DESC%%</b></font></td></tr></table><br><br>The webserver for %%URL%% reported that an error occurred while trying to access the website. Please click <u><a onclick=\" history.back()\" >here</a></u> to return to the previous page.<br><br><hr><br>Powered by %%SERVICE%%.</font></body></html>" set header http set format html end config system replacemsg fortiguard-wf " ftgd-ovrd" set buffer " <html><head><title>Web Filter Block Override</title></head><body><font size=2><table width=\" 100%\" ><tr><td>%%FORTIGUARD_WF%%</td><td align=\" right\" >%%FORTINET%%</td></tr><tr><td bgcolor=#3300cc align=\" center\" colspan=2><font color=#ffffff><b>Web Filter Block Override</b></font></td></tr><tr><td colspan=2><br><br>If you have been granted override creation privileges by your administrator, you can enter your username and password here to gain immediate access to the blocked web-page. If you do not have these privileges, please contact your administrator to gain access to the web-page.<br><br></td></tr><tr><td align=\" center\" colspan=2>%%OVRD_FORM%%</td></tr></table><br><br><hr><br>Powered by %%SERVICE%%.</font></body></html>" set header http set format html end config system replacemsg spam " ipblocklist" set buffer " Mail from this IP address is not allowed and has been blocked." set header none set format text end config system replacemsg spam " smtp-spam-dnsbl" set buffer " This message has been blocked because it is from a DNSBL/ORDBL IP address." set header none set format text end config system replacemsg spam " smtp-spam-feip" set buffer " This message has been blocked because it is from a FortiGuard - AntiSpam black IP address." set header none set format text end config system replacemsg spam " smtp-spam-helo" set buffer " This message has been blocked because the HELO/EHLO domain is invalid." set header none set format text end config system replacemsg spam " smtp-spam-emailblack" set buffer " Mail from this email address is not allowed and has been blocked." set header none set format text end config system replacemsg spam " smtp-spam-mimeheader" set buffer " This message has been blocked because it contains an invalid header." set header none set format text end config system replacemsg spam " reversedns" set buffer " This message has been blocked because the return email domain is invalid." set header none set format text end config system replacemsg spam " smtp-spam-bannedword" set buffer " This message has been blocked because it contains a banned word." set header none set format text end config system replacemsg spam " smtp-spam-ase" set buffer " This message has been blocked because ASE reports it as spam. " set header none set format text end config system replacemsg spam " submit" set buffer " If this email is not spam, click here to submit the signatures to FortiGuard - AntiSpam Service." set header none set format text end config system replacemsg im " im-file-xfer-block" set buffer " Transfer failed. You are not permitted to transfer the file \" %%FILE%%\" ." set header none set format text end config system replacemsg im " im-file-xfer-name" set buffer " Transfer %%ACTION%%. The file name \" %%FILE%%\" matches the configured file name block list." set header none set format text end config system replacemsg im " im-file-xfer-infected" set buffer " Transfer %%ACTION%%. The file \" %%FILE%%\" is infected with the virus %%VIRUS%%. File quarantined as %%QUARFILENAME%%." set header none set format text end config system replacemsg im " im-file-xfer-size" set buffer " Transfer %%ACTION%%. The file \" %%FILE%%\" is larger than the configured limit." set header none set format text end config system replacemsg im " im-dlp" set buffer " Transfer %%ACTION%%. The file \" %%FILE%%\" contains a data leak." set header none set format text end config system replacemsg im " im-dlp-ban" set buffer " Transfer %%ACTION%%. The user is banned because of a detected data leak." set header none set format text end config system replacemsg im " im-voice-chat-block" set buffer " Connection failed. You are not permitted to use voice chat." set header none set format text end config system replacemsg im " im-photo-share-block" set buffer " Photo sharing failed. You are not permitted to share photo." set header none set format text end config system replacemsg im " im-long-chat-block" set buffer " Message blocked. The message is longer than the configured limit." set header none set format text end config system replacemsg alertmail " alertmail-virus" set buffer " Virus/Worm detected: %%VIRUS%% Protocol: %%PROTOCOL%% Source IP: %%SOURCE_IP%% Destination IP: %%DEST_IP%% Email Address From: %%EMAIL_FROM%% Email Address To: %%EMAIL_TO%% " set header none set format text end config system replacemsg alertmail " alertmail-block" set buffer " File Block Detected: %%FILE%% Protocol: %%PROTOCOL%% Source IP: %%SOURCE_IP%% Destination IP: %%DEST_IP%% Email Address From: %%EMAIL_FROM%% Email Address To: %%EMAIL_TO%% " set header none set format text end config system replacemsg alertmail " alertmail-nids-event" set buffer " The following intrusion was observed: %%NIDS_EVENT%%." set header none set format text end config system replacemsg alertmail " alertmail-crit-event" set buffer " The following critical firewall event was detected: %%CRITICAL_EVENT%%." set header none set format text end config system replacemsg alertmail " alertmail-disk-full" set buffer " The log disk is Full." set header none set format text end config system replacemsg admin " admin-disclaimer-text" set buffer " W A R N I N G W A R N I N G W A R N I N G W A R N I N G This is a private computer system. Unauthorized access or use is prohibited and subject to prosecution and/or disciplinary action. All use of this system constitutes consent to monitoring at all times and users are not entitled to any expectation of privacy. If monitoring reveals possible evidence of violation of criminal statutes, this evidence and any other related information, including identification information about the user, may be provided to law enforcement officials. If monitoring reveals violations of security regulations or unauthorized use, employees who violate security regulations or make unauthorized use of this system are subject to appropriate disciplinary action. W A R N I N G W A R N I N G W A R N I N G W A R N I N G " set header none set format text end config system replacemsg auth " auth-disclaimer-page-1" set buffer " <HTML><HEAD><TITLE>Firewall Disclaimer</TITLE></HEAD><BODY><FORM ACTION=\" /\" method=\" POST\" ><INPUT TYPE=\" hidden\" NAME=\" %%MAGICID%%\" VALUE=\" %%MAGICVAL%%\" ><INPUT TYPE=\" hidden\" NAME=\" %%ANSWERID%%\" VALUE=\" %%DECLINEVAL%%\" ><INPUT TYPE=\" hidden\" NAME=\" %%REDIRID%%\" VALUE=\" %%PROTURI%%\" ><TABLE ALIGN=\" CENTER\" width=400 height=250 cellpadding=2 cellspacing=0 border=0 bgcolor=\" #008080\" ><TR><TD><TABLE border=0 width=\" 100%\" height=\" 100%\" cellpadding=0 cellspacing=0 bgcolor=\" #9dc8c6\" ><TR height=30 bgcolor=\" #008080\" ><TD><b><font size=2 face=\" Verdana\" color=\" #ffffff\" >Disclaimer Agreement</font></b></TD><TR><TR height=\" 100%\" ><TD><TABLE border=0 cellpadding=5 cellspacing=0 width=\" 320\" align=center><TR><TD colspan=2><font size=2 face=\" Times New Roman\" >You are about to access Internet content that is not under the control of the network access provider. The network access provider is therefore not responsible for any of these sites, their content or their privacy policies. The network access provider and its staff do not endorse nor make any representations about these sites, or any information, software or other products or materials found there, or any results that may be obtained from using them. If you decide to access any Internet content, you do this entirely at your own risk and you are responsible for ensuring that any accessed material does not infringe the laws governing, but not exhaustively covering, copyright, trademarks, pornography, or any other material which is slanderous, defamatory or might cause offence in any other way.</font></TD></TR><TR><TD>Do you agree to the above terms?</TD></TR><TR><TD><INPUT CLASS=\" button\" TYPE=\" button\" VALUE=\" Yes, I agree\" ONCLICK=\" agree()\" ><INPUT CLASS=\" button\" TYPE=\" button\" VALUE=\" No, I decline\" ONCLICK=\" decline()\" ></TD></TR></TABLE></TD></TR></TABLE></TD></TR></TABLE></FORM><SCRIPT LANGUAGE=\" JavaScript\" >function agree(){document.forms[0].%%ANSWERID%%.value=\" %%AGREEVAL%%\" ;document.forms[0].submit();}function decline(){document.forms[0].submit();}</SCRIPT></BODY></HTML>" set header http set format html end config system replacemsg auth " auth-disclaimer-page-2" set buffer ' ' set header http set format html end config system replacemsg auth " auth-disclaimer-page-3" set buffer ' ' set header http set format html end config system replacemsg auth " auth-reject-page" set buffer " <HTML><HEAD><TITLE>Firewall Disclaimer Declined</TITLE></HEAD><BODY><FORM ACTION=\" /\" method=\" POST\" ><INPUT TYPE=\" hidden\" NAME=\" %%MAGICID%%\" VALUE=\" %%MAGICVAL%%\" ><INPUT TYPE=\" hidden\" NAME=\" %%REDIRID%%\" VALUE=\" %%PROTURI%%\" ><TABLE ALIGN=\" CENTER\" width=400 height=250 cellpadding=2 cellspacing=0 border=0 bgcolor=\" #008080\" ><TR><TD><TABLE border=0 width=\" 100%\" height=\" 100%\" cellpadding=0 cellspacing=0 bgcolor=\" #9dc8c6\" ><TR height=30 bgcolor=\" #008080\" ><TD><b><font size=2 face=\" Verdana\" color=\" #ffffff\" >Disclaimer Declined</font></b></TD><TR><TR height=\" 100%\" ><TD><TABLE border=0 cellpadding=5 cellspacing=0 width=\" 320\" align=center><TR><TD colspan=2><font size=2 face=\" Times New Roman\" >Sorry, network access cannot be granted unless you agree to the disclaimer.</font></TD><TR><TR><TD></TD><TD><INPUT TYPE=\" submit\" VALUE=\" Return to Disclaimer\" ></TD></TR></TABLE></TD></TR></TABLE></TD></TR></TABLE></FORM></BODY></HTML>" set header http set format html end config system replacemsg auth " auth-login-page" set buffer " <HTML><HEAD><TITLE>Firewall Authentication</TITLE></HEAD><BODY><FORM ACTION=\" /\" method=\" POST\" ><INPUT TYPE=\" hidden\" NAME=\" %%MAGICID%%\" VALUE=\" %%MAGICVAL%%\" ><TABLE ALIGN=\" CENTER\" width=400 height=250 cellpadding=2 cellspacing=0 border=0 bgcolor=\" #008080\" ><TR><TD><TABLE border=0 cellpadding=0 cellspacing=0 bgcolor=\" #9dc8c6\" ><TR height=30 bgcolor=\" #008080\" ><TD><b><font size=2 face=\" Verdana\" color=\" #ffffff\" >Authentication Required</font></b></TD></TR><TR><TD><TABLE border=0 cellpadding=5 cellspacing=0 width=\" 320\" align=center><TR><TD colspan=2><font size=2 face=\" Times New Roman\" >%%QUESTION%%</font></TD></TR><TR><TD><font size=2 face=\" Times New Roman\" >Username:</font></TD><TD><INPUT TYPE=\" text\" NAME=\" %%USERNAMEID%%\" size=25></TD></TR><TR><TD><font size=2 face=\" Times New Roman\" >Password:</font></TD><TD><INPUT TYPE=\" password\" NAME=\" %%PASSWORDID%%\" size=25></TD></TR><TR><TD><INPUT TYPE=\" hidden\" NAME=\" %%REDIRID%%\" VALUE=\" %%PROTURI%%\" ><INPUT TYPE=\" submit\" VALUE=\" Continue\" ></TD></TR></TABLE></TD></TR></TABLE></TD></TR></TABLE></FORM></BODY></HTML>" set header http set format html end config system replacemsg auth " auth-login-failed-page" set buffer " <HTML><HEAD><TITLE>Firewall Authentication</TITLE></HEAD><BODY><FORM ACTION=\" /\" method=\" POST\" ><INPUT TYPE=\" hidden\" NAME=\" %%MAGICID%%\" VALUE=\" %%MAGICVAL%%\" ><TABLE ALIGN=\" CENTER\" width=400 height=250 cellpadding=2 cellspacing=0 border=0 bgcolor=\" #008080\" ><TR><TD><TABLE border=0 cellpadding=0 cellspacing=0 bgcolor=\" #9dc8c6\" ><TR height=30 bgcolor=\" #008080\" ><TD><b><font size=2 face=\" Verdana\" color=\" #ffffff\" >Authentication Failed</font></b></TD></TR><TR><TD><TABLE border=0 cellpadding=5 cellspacing=0 width=\" 320\" align=center><TR><TD colspan=2><font size=2 face=\" Times New Roman\" >%%FAILED_MESSAGE%%</font></TD></TR><TR><TD><font size=2 face=\" Times New Roman\" >Username:</font></TD><TD><INPUT TYPE=\" text\" NAME=\" %%USERNAMEID%%\" size=25></TD></TR><TR><TD><font size=2 face=\" Times New Roman\" >Password:</font></TD><TD><INPUT TYPE=\" password\" NAME=\" %%PASSWORDID%%\" size=25></TD></TR><TR><TD><INPUT TYPE=\" hidden\" NAME=\" %%REDIRID%%\" VALUE=\" %%PROTURI%%\" ><INPUT TYPE=\" submit\" VALUE=\" Continue\" ></TD></TR></TABLE></TD></TR></TABLE></TD></TR></TABLE></FORM></BODY></HTML>" set header http set format html end config system replacemsg auth " auth-challenge-page" set buffer " <HTML><HEAD><TITLE>Firewall Authentication</TITLE></HEAD><BODY><FORM ACTION=\" /\" method=\" POST\" ><INPUT TYPE=\" hidden\" NAME=\" %%MAGICID%%\" VALUE=\" %%MAGICVAL%%\" ><TABLE ALIGN=\" CENTER\" width=400 height=250 cellpadding=2 cellspacing=0 border=0 bgcolor=\" #008080\" ><TR><TD><TABLE border=0 cellpadding=0 cellspacing=0 bgcolor=\" #9dc8c6\" ><TR height=30 bgcolor=\" #008080\" ><TD><b><font size=2 face=\" Verdana\" color=\" #ffffff\" >Authentication Required</font></b></TD></TR><TR><TD><TABLE border=0 cellpadding=5 cellspacing=0 width=\" 320\" align=center><TR><TD colspan=2><font size=2 face=\" Times New Roman\" >%%QUESTION%%</font></TD></TR><TR><TD><font size=2 face=\" Times New Roman\" >Answer:</font></TD><TD><INPUT TYPE=\" password\" NAME=\" %%PASSWORDID%%\" size=25></TD></TR><TR><TD><INPUT TYPE=\" hidden\" NAME=\" %%USERNAMEID%%\" VALUE=\" %%USERNAMEVAL%%\" ><INPUT TYPE=\" hidden\" NAME=\" %%REQUESTID%%\" VALUE=\" %%REQUESTVAL%%\" ><INPUT TYPE=\" hidden\" NAME=\" %%REDIRID%%\" VALUE=\" %%PROTURI%%\" ><INPUT TYPE=\" hidden\" NAME=\" %%USERGROUPID%%\" VALUE=\" %%USERGROUPVAL%%\" ><INPUT TYPE=\" submit\" VALUE=\" Continue\" ></TD></TR></TABLE></TD></TR></TABLE></TD></TR></TABLE></FORM></BODY></HTML>" set header http set format html end config system replacemsg auth " auth-keepalive-page" set buffer " <HTML> <HEAD> <TITLE>Firewall Authentication Keepalive Window</TITLE> </HEAD> <BODY> <SCRIPT LANGUAGE=\" JavaScript\" > var countDownTime=%%TIMEOUT%% + 1; function countDown(){ countDownTime--; if (countDownTime <= 0){ location.href=\" %%KEEPALIVEURL%%\" ; return; } document.getElementById(\' countdown\' ).innerHTML = countDownTime; counter=setTimeout(\" countDown()\" , 1000); } function startit(){ countDown(); } window.onload=startit </SCRIPT> <table width=\" 100%\" height=\" 100%\" ><tr><td align=\" center\" > <H3>This browser window is used to keep your authentication session active.</H3> <H3>Please leave it open in the background and open a <a href=\" %%AUTH_REDIR_URL%%\" target=\" _blank\" >new window</a> to continue.</H3> <p>Authentication Refresh in <b id=countdown>%%TIMEOUT%%</b> seconds</p> <p><a href=\" %%AUTH_LOGOUT%%\" >logout</a></p> </td></tr></table> </BODY> </HTML> " set header http set format html end config system replacemsg sslvpn " sslvpn-login" set buffer " <html><head><title>login</title><meta http-equiv=\" Pragma\" content=\" no-cache\" ><meta http-equiv=\" cache-control\" content=\" no-cache\" ><meta http-equiv=\" cache-control\" content=\" must-revalidate\" ><link href=\" /sslvpn/css/login.css\" rel=\" stylesheet\" type=\" text/css\" ><script type=\" text/javascript\" >if (top && top.location != window.location) top.location = top.location;if (window.opener && window.opener.top) { window.opener.top.location = window.opener.top.location; self.close(); }</script></head><body class=\" main\" ><center><table width=\" 100%\" height=\" 100%\" align=\" center\" class=\" container\" valign=\" middle\" cellpadding=\" 0\" cellspacing=\" 0\" ><tr valign=middle><td><form action=\" %%SSL_ACT%%\" method=\" %%SSL_METHOD%%\" name=\" f\" ><table class=\" list\" cellpadding=10 cellspacing=0 align=center width=400 height=180>%%SSL_LOGIN%%</table>%%SSL_HIDDEN%%</td></tr></table></form></center></body><script>document.forms[0].username.focus();</script></html>" set header http set format html end config system replacemsg sslvpn " sslvpn-limit" set buffer " <html><head><title>Already Logged In</title><meta http-equiv=\" Pragma\" content=\" no-cache\" ><meta http-equiv=\" cache-control\" content=\" no-cache\" ><meta http-equiv=\" cache-control\" content=\" must-revalidate\" ><link href=\" /sslvpn/css/login.css\" rel=\" stylesheet\" type=\" text/css\" ><script type=\" text/javascript\" >if (top && top.location != window.location) top.location = top.location;if (window.opener && window.opener.top) { window.opener.top.location = window.opener.top.location; self.close(); }</script></head><body class=\" main\" ><center><table class=\" container\" height=\" 100%\" cellspacing=\" 0\" cellpadding=\" 0\" align=\" center\" width=\" 100%\" valign=\" middle\" ><tbody><tr valign=\" middle\" ><td><table class=\" list\" height=\" 180\" cellspacing=\" 0\" cellpadding=\" 10\" align=\" center\" width=\" 400\" ><tbody><tr class=\" dark\" ><td colspan=\" 2\" > <b>Already Logged In</b></td></tr><tr><td colspan=\" 2\" ><p>You already have an open SSL VPN connection. Opening multiple connections is not permitted.</p><p>If you proceed, your other connection will be disconnected.</p><p>Please contact your administrator if you blevieve there is a problem.</p></td></tr><tr><td style=\" text-align:center\" >%%SSL_LOGIN_ANYWAY%%</td><td style=\" text-align:center\" >%%SSL_LOGIN_CANCEL%%</td></tr></tbody></table></td></tr></tbody></table></center></body></html>" set header http set format html end config system replacemsg ec " endpt-download-portal" set buffer " <HTML><HEAD><TITLE>Endpoint Security Required</TITLE></HEAD><BODY><TABLE ALIGN=\" CENTER\" width=500 height=250 cellpadding=2 cellspacing=0 border=0 bgcolor=\" #008080\" ><TR><TD><TABLE border=0 width=\" 100%\" height=\" 100%\" cellpadding=0 cellspacing=0 bgcolor=\" #9dc8c6\" ><TR height=30 bgcolor=\" #008080\" ><TD style=\" text-align: center\" ><b><font size=2 face=\" Verdana\" color=\" #ffffff\" >Endpoint Security Required</font></b></TD><TR><TR height=\" 100%\" ><TD><TABLE border=0 cellpadding=5 cellspacing=0 width=\" 500\" align=center><TR><TD><font size=2 face=\" Times New Roman\" >The security policy requires the latest FortiClient Endpoint Security software and antivirus signature package to to be installed.<br><br>Installing FortiClient requires that you have administrator privileges on your computer. If you do not, please contact your network administrator to have FortiClient installed.<br><br>The installer may be downloaded using the following link:<br>%%LINK%%<br>Installation instructions:<br><ul><li><span style=\" font-style:italic\" >For Internet Explorer:</span></li><ol><li>Click the above link to download the installer</li><li>When Internet Explorer asks what action you would like to take, click \" Run\" </li></ol><br><li><span style=\" font-style:italic\" >For Firefox:</span></li><ol><li>Click the above link to download the installer</li><li>Save the installer and note the location it is saved to</li><li>Open the folder containing the installer and run it</li></ol></ul>FortiClient installation may take a few minutes. Thank you for your patience.<br><br></font></TD></TR><TR><TD></TD></TR></TABLE></TD></TR></TABLE></TD></TR></TABLE></BODY></HTML>" set header http set format html end config system replacemsg ec " endpt-recommendation-portal" set buffer " <HTML><HEAD><TITLE>Endpoint Security Required</TITLE></HEAD><BODY><TABLE ALIGN=\" CENTER\" width=500 height=250 cellpadding=2 cellspacing=0 border=0 bgcolor=\" #008080\" ><TR><TD><TABLE border=0 width=\" 100%\" height=\" 100%\" cellpadding=0 cellspacing=0 bgcolor=\" #9dc8c6\" ><TR height=30 bgcolor=\" #008080\" ><TD style=\" text-align: center\" ><b><font size=2 face=\" Verdana\" color=\" #ffffff\" >Endpoint Security Required</font></b></TD><TR><TR height=\" 100%\" ><TD><TABLE border=0 cellpadding=5 cellspacing=0 width=\" 500\" align=center><TR><TD><font size=2 face=\" Times New Roman\" >The use of this security policy recommends that the latest FortiClient Endpoint Security software and antivirus signature package are installed.<br><br>Installing FortiClient requires that you have administrator privileges on your computer. If you do not, please contact your network administrator to have FortiClient installed.<br><br>The installer may be downloaded using the following link:<br>%%LINK%%<br>Installation instructions:<br><ul><li><span style=\" font-style:italic\" >For Internet Explorer:</span></li><ol><li>Click the above link to download the installer</li><li>When Internet Explorer asks what action you would like to take, click \" Run\" </li></ol><br><li><span style=\" font-style:italic\" >For Firefox:</span></li><ol><li>Click the above link to download the installer</li><li>Save the installer and note the location it is saved to</li><li>Open the folder containing the installer and run it</li></ol></ul>FortiClient installation may take a few minutes. Thank you for your patience.<br><br></font></TD></TR><TR><TD></TD></TR></TABLE><TR height=30 bgcolor=\" #9dc8c6\" ><TD style=\" text-align: center\" ><b><font size=2 face=\" Verdana\" color=\" #ffffff\" ><a href=\" %%DST_ADDR_LINK%%\" > Continue to %%DST_ADDR_LABEL%% </a></font></b></TD><TR></TD></TR></TABLE></TD></TR></TABLE></BODY></HTML>" set header http set format html end config system replacemsg nac-quar " nac-quar-virus" set buffer " <html><head><title>Virus Quarantine</title></head><body><font size=2><table width=\" 100%\" ><tr><td bgcolor=#3300cc align=\" center\" colspan=2><font color=#ffffff><b>Blocked because of virus</b></font></td></tr></table><br><br>A virus was detected, originating from your system. Please contact the system administrator.<br><br><hr></font></body></html>" set header http set format html end config system replacemsg nac-quar " nac-quar-dos" set buffer " <html><head><title>Attack Detected</title></head><body><font size=2><table width=\" 100%\" ><tr><td bgcolor=#3300cc align=\" center\" colspan=2><font color=#ffffff><b>Blocked because of DoS Attack</b></font></td></tr></table><br><br>A DoS attack was detected, originating from your system. Please contact the system administrator.<br><br><hr></font></body></html>" set header http set format html end config system replacemsg nac-quar " nac-quar-ips" set buffer " <html><head><title>Attack Detected</title></head><body><font size=2><table width=\" 100%\" ><tr><td bgcolor=#3300cc align=\" center\" colspan=2><font color=#ffffff><b>Blocked because of IPS attack</b></font></td></tr></table><br><br>An attack was detected, originating from your system. Please contact the system administrator.<br><br><hr></font></body></html>" set header http set format html end config system replacemsg nac-quar " nac-quar-dlp" set buffer " <html><head><title>Data Leak Detected</title></head><body><font size=2><table width=\" 100%\" ><tr><td bgcolor=#3300cc align=\" center\" colspan=2><font color=#ffffff><b>Blocked because of data leak</b></font></td></tr></table><br><br>A data leak was detected, originating from your system. Please contact the system administrator.<br><br><hr></font></body></html>" set header http set format html end config system replacemsg traffic-quota " per-ip-shaper-block" set buffer " <html><head><title>Traffic Quota Control</title></head><body><font size=2><table width=\" 100%\" ><tr><td bgcolor=#3300cc align=\" center\" colspan=2><font color=#ffffff><b>Traffic blocked because of exceed quota</b></font></td></tr></table><br><br>Traffic blocked because of exceed per IP traffic shaper quota. Please contact the system administrator.<br>%%QUOTA_INFO%%<br><br><hr></font></body></html>" set header http set format html end config system replacemsg traffic-quota " traffic-shaper-block" set buffer " <html><head><title>Traffic Quota Control</title></head><body><font size=2><table width=\" 100%\" ><tr><td bgcolor=#3300cc align=\" center\" colspan=2><font color=#ffffff><b>Traffic blocked because of exceed quota</b></font></td></tr></table><br><br>Traffic blocked because of exceed shared traffic shaper quota. Please contact the system administrator.<br>%%QUOTA_INFO%%<br><br><hr></font></body></html>" set header http set format html end config system autoupdate schedule set frequency every set status disable set time 00:60 end config vpn certificate ca end config vpn certificate local edit " Fortinet_CA_SSLProxy" set password ENC MKTiTyaIiojcG2Jjon96cCuqG9h8yKPaNMRY0aC0yyC64QSENmekKGcofzWTpLq4Et0s4oX3qQFejWKs5YiLIob2JXDKRII1X4k2PbW4UsupLa8K set comments " This certificate is embedded in the firmware and is the same on every unit (not unique). This is the default CA certificate the SSL Inspection will use when generating new server certificates." set private-key " -----BEGIN RSA PRIVATE KEY----- Proc-Type: 4,ENCRYPTED DEK-Info: DES-EDE3-CBC,C3A82021B8889DC6 ezE/DHhZM5ydCyqzHQmKQKgqiE4s3klzfWUYbLmw7Wh/QYGurBNncdtz8L6UlPkN beL6AGCJI/LmZg5+Wvu3Pfs5A6XeZ4DRp+biN5qduIluwvXQYFbW/4k+ZYzmoQAe ladRK5XxVePWd89s5bY94TmxhAHEJDGJn3M5UooYgrQHbUIQ87UaWU7aq1KuSkVv OzWNuYTKOQdYTjmwLjD8M9L/6C+T3PFHLOP02MtXJzqh1qs8Sl5TTmjREJtf7r9O C+GIRl1In8Qzwx74ZbEPQgCycfqZjOtfCAi5zgpbR6+ctK7SPpYvE7cIQk0MX/b1 lLoQYWilnSwhM5UNNA2ijXzR/5Lmu3KJtdyeufFmMY93f+Qd45wDJtLXKoH3ov3w MLtJASqq5hef0OdIFJz9F08Fzhu2MqMf9TuviScghcY7vvRImydqcy0A8iRDUwNx 2gY2Z6yfKduZvrgx4QdG7x8aNxu/uDooeT5amSK7hCw+/jPBHr+qOoKuiXTDVVjI eAWCjf/bFi31967ZM7uzCsCY2VFoHljLKBrzwRsFB1g/kF68dWCxQbRHgNVseXik 8NuzFtJ9FlKJ7bNHEYL7WSyxA/Ka0iL/ONYAZJaeTvHy8n71KmZ5pUWI0nNrx2Uh WqsgOXAe7rDW20VvUKhzokj3WkEvs69sNJzbEvmK3bXddpUfsOw9iAciLpkmple8 85ZPgERBbqfl1+Xdh83Rvi45RSSlkhl+sN1rVO8zZSzWs5COJPyay0NIZe7AR12w 2bXJTt+UaOVCeHz28mp7tWSUmN3uofGQCAHFL1BGKm1Xkt8Kw1ees9Cm2QUbZfbo 3z6ODnLLDaX+J9oejvDQtUaTkvphoCfvenyz4TLq9EMHV+ywgq651LHalKylVkTL T0Qpt7LwgBiZAqebr5TC75st5SkqhBbzbcV4FP2IhFn/DBOQ+G5mDc+Kdr40bTpD esaCIzlv0DuKoVzBOAcNFm0Xz/utEyIQZPh4DAehUBsEdKH8LeUggKCF1MqsdzZD oUq0KxPOAXvWBG2aGWT7X4yUEuZwDBuO5FlTUmUc/eop9GcU65YMQflWX3vefnoq rFwMv0nWZh7/rq3DrFdA/HrHyq004GBlKRJopIt48+pU6NeDj4NOh76qVLORihY0 p4AYDvn488caDoPXbTlC3hITxTsHt2HLEJg5i5fv7iXpiz1NObE3VU63wN5/PjJB zUiVYL5UOFDUQNqrahULFLLoQSFhMfGDDx8Arun716OqUJ2sxnlMk46zNgRgDFpI KWApol7nIcm0Au7B0g9jNcAdeDN8vf3QzOv+Bs5hEE/hKwTHfI74f7MeM7jDY8ML vZ1pZs4ZE9nQvqsaYsGZUWYsukB/xgjGbM9ahAOJJ8+GZbfo638Pj7ajbKaHioRJ C6fySgOMYuFwqboHFeRnCc/OziPgyHjsEgrAII27/D70x/fxlxHeDHis7ttIrLY/ vqXEv1W5tp4l31x6DhP8PY9QgE1bzSEOyzF5W7La1uH8o+nIGruIZSSiA5fKekhB lAHPUDiFnJYVZfuTGx28sU4unXxCCC3LF3Rj2jS5rjOTi7gnNjiciQ== -----END RSA PRIVATE KEY-----" set certificate " -----BEGIN CERTIFICATE----- MIID1zCCAr+gAwIBAgIBADANBgkqhkiG9w0BAQUFADCBpTELMAkGA1UEBhMCVVMx EzARBgNVBAgTCkNhbGlmb3JuaWExEjAQBgNVBAcTCVN1bm55dmFsZTERMA8GA1UE ChMIRm9ydGluZXQxHjAcBgNVBAsTFUNlcnRpZmljYXRlIEF1dGhvcml0eTEVMBMG A1UEAxMMRm9ydGlHYXRlIENBMSMwIQYJKoZIhvcNAQkBFhRzdXBwb3J0QGZvcnRp bmV0LmNvbTAeFw0wODEwMTgwMDQ2MzlaFw0yODEwMTMwMDQ2MzlaMIGlMQswCQYD VQQGEwJVUzETMBEGA1UECBMKQ2FsaWZvcm5pYTESMBAGA1UEBxMJU3Vubnl2YWxl MREwDwYDVQQKEwhGb3J0aW5ldDEeMBwGA1UECxMVQ2VydGlmaWNhdGUgQXV0aG9y aXR5MRUwEwYDVQQDEwxGb3J0aUdhdGUgQ0ExIzAhBgkqhkiG9w0BCQEWFHN1cHBv cnRAZm9ydGluZXQuY29tMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA tveDq5vViSsRgHROaylt0qMdteLi1D/L0AWct+j5Y+N+HskBqsK5eGHrgytW6Jr3 dtQ/53/usTI+8HHpPXj8gWune6ivjQcOAmGsB/gfwLPCa98+kLgo9wpu0NxLVbyU i5F9OjFtMpEGsYlnu6jtrsIR8EonAnaUtYKCqPLNSVc/U97ZX9m7zyjLYEGENt2M elnAeTDNy2VHdxvjCkHBZYuI8lygtQsFvAGdvHsoIGEKgnLHbycLCWUk1j9mTkYB 0QFKWdy45jsvrUEnaEuWBlIKNZEgy8uI1wW/Rtv1HHbofuWr/2gTIaggPjIWshak sPA5wXth1N5pBMrPOxNoHwIDAQABoxAwDjAMBgNVHRMEBTADAQH/MA0GCSqGSIb3 DQEBBQUAA4IBAQBrAfI+ULwg3M+k4s3FB6//6sPG5TcrvPdrQ8gArEeYJJCzHnVY tknIPPx1K5V+QueAXRpLiuWphFP5w9OxWuDqHw8zwb24wJc7BD4CeFKUyYinbpDi Yg035SKYl4TSGMOTiYRoTxqgkfzcmTFfpfD1pOJQ08Kh+1yle35WqG9Ab1jrO0Y/ vltGReZckwh9e95SPzNA43xGZPSIgxZ8007EUqYBekoSKGAQPqTalHBkzpB1Us3F 5yCZzxA4WYT9UGVwPhIVgMlZvm5NL29/5dFgts51U+P4OZ0Or+xQfWYIxTzCWtAC 1ikZ/6HeIvet27H4CPP1rolBTXw4z6olP32T -----END CERTIFICATE-----" next end config system fortiguard set hostname " service.fortiguard.net" set srv-ovrd disable set port 8888 set client-override-status disable set service-account-id ' ' set load-balance-servers 1 set analysis-service enable set antispam-status enable set antispam-cache enable set antispam-cache-ttl 1800 set antispam-cache-mpercent 2 set antispam-timeout 7 set avquery-status disable set avquery-cache enable set avquery-cache-ttl 1800 set avquery-cache-mpercent 2 set avquery-timeout 7 set webfilter-status enable set webfilter-cache enable set webfilter-cache-ttl 3600 set webfilter-timeout 15 set antispam-score-threshold 80 end config gui console unset preferences end config system session-helper edit 1 set name pptp set port 1723 set protocol 6 next edit 2 set name h323 set port 1720 set protocol 6 next edit 3 set name ras set port 1719 set protocol 17 next edit 4 set name tns set port 1521 set protocol 6 next edit 5 set name tftp set port 69 set protocol 17 next edit 6 set name rtsp set port 554 set protocol 6 next edit 7 set name rtsp set port 7070 set protocol 6 next edit 8 set name rtsp set port 8554 set protocol 6 next edit 9 set name ftp set port 21 set protocol 6 next edit 10 set name mms set port 1863 set protocol 6 next edit 11 set name pmap set port 111 set protocol 6 next edit 12 set name pmap set port 111 set protocol 17 next edit 13 set name sip set port 5060 set protocol 17 next edit 14 set name dns-udp set port 53 set protocol 17 next edit 15 set name rsh set port 514 set protocol 6 next edit 16 set name rsh set port 512 set protocol 6 next edit 17 set name dcerpc set port 135 set protocol 6 next edit 18 set name dcerpc set port 135 set protocol 17 next edit 19 set name mgcp set port 2427 set protocol 17 next edit 20 set name mgcp set port 2727 set protocol 17 next end config system auto-install set auto-install-config enable set auto-install-image enable set default-config-file " fgt_system.conf" set default-image-file " image.out" end config system ntp config ntpserver edit 1 set server " pool.ntp.org" next end set ntpsync disable set syncinterval 60 end config antivirus service " http" set scan-bzip2 disable set uncompnestlimit 12 set uncompsizelimit 10 end config antivirus service " https" end config antivirus service " ftp" set scan-bzip2 disable set uncompnestlimit 12 set uncompsizelimit 10 end config antivirus service " pop3" set scan-bzip2 disable set uncompnestlimit 12 set uncompsizelimit 10 end config antivirus service " pop3s" set scan-bzip2 disable set uncompnestlimit 12 set uncompsizelimit 10 end config antivirus service " imap" set scan-bzip2 disable set uncompnestlimit 12 set uncompsizelimit 10 end config antivirus service " imaps" set scan-bzip2 disable set uncompnestlimit 12 set uncompsizelimit 10 end config antivirus service " smtp" set scan-bzip2 disable set uncompnestlimit 12 set uncompsizelimit 10 end config antivirus service " smtps" set scan-bzip2 disable set uncompnestlimit 12 set uncompsizelimit 10 end config antivirus service " nntp" set scan-bzip2 disable set uncompnestlimit 12 set uncompsizelimit 10 end config antivirus service " im" set scan-bzip2 disable set uncompnestlimit 12 set uncompsizelimit 10 end config system dhcp server edit " internal_dhcp_server" set default-gateway 192.168.10.1 set dns-server1 192.168.10.1 set interface " internal" set netmask 255.255.255.0 set end-ip 192.168.10.210 set start-ip 192.168.10.110 next end config firewall address edit " all" next edit " SSLVPN-P-TUN-0" set type iprange set end-ip 10.0.0.10 set start-ip 10.0.0.1 next edit " SSLVPN-P-TUN-1" set type iprange set end-ip 10.0.0.10 set start-ip 10.0.0.1 next edit " lan subnet" set associated-interface " internal" set subnet 192.168.10.0 255.255.255.0 next edit " subnet cisco" set associated-interface " To_cisco" set subnet 192.168.1.0 255.255.255.0 next end config firewall address6 edit " all" next end config ips sensor edit " all_default" set comment " all predefined signatures with default setting" config filter edit " 1" next end next edit " all_default_pass" set comment " all predefined signatures with PASS action" config filter edit " 1" set action pass next end next edit " protect_http_server" set comment " protect against HTTP server-side vulnerabilities" config filter edit " 1" set location server set protocol HTTP next end next edit " protect_email_server" set comment " protect against EMail server-side vulnerabilities" config filter edit " 1" set location server set protocol SMTP POP3 IMAP next end next edit " protect_client" set comment " protect against client-side vulnerabilities" config filter edit " 1" set location client next end next end config ips DoS edit " all_default" config anomaly edit " tcp_syn_flood" set status enable set threshold 2000 next edit " tcp_port_scan" set status enable set threshold 1000 next edit " tcp_src_session" set status enable set threshold 5000 next edit " tcp_dst_session" set status enable set threshold 5000 next edit " udp_flood" set status enable set threshold 2000 next edit " udp_scan" set status enable set threshold 2000 next edit " udp_src_session" set status enable set threshold 5000 next edit " udp_dst_session" set status enable set threshold 5000 next edit " icmp_flood" set status enable set threshold 250 next edit " icmp_sweep" set status enable set threshold 100 next edit " icmp_src_session" set status enable set threshold 300 next edit " icmp_dst_session" set status enable set threshold 1000 next end next edit " block_flood" config anomaly edit " tcp_syn_flood" set status enable set action block set threshold 2000 next edit " tcp_port_scan" set threshold 1000 next edit " tcp_src_session" set threshold 5000 next edit " tcp_dst_session" set threshold 5000 next edit " udp_flood" set status enable set action block set threshold 2000 next edit " udp_scan" set threshold 2000 next edit " udp_src_session" set threshold 5000 next edit " udp_dst_session" set threshold 5000 next edit " icmp_flood" set status enable set action block set threshold 250 next edit " icmp_sweep" set threshold 100 next edit " icmp_src_session" set threshold 300 next edit " icmp_dst_session" set threshold 1000 next end next end config firewall shaper traffic-shaper edit " high-priority" set maximum-bandwidth 131072 set per-policy enable next edit " medium-priority" set maximum-bandwidth 131072 set per-policy enable set priority medium next edit " low-priority" set maximum-bandwidth 131072 set per-policy enable set priority low next edit " guarantee-100kbps" set guaranteed-bandwidth 12 set maximum-bandwidth 131072 set per-policy enable next edit " shared-1M-pipe" set maximum-bandwidth 128 next end config antivirus filepattern edit 1 config entries edit " *.bat" next edit " *.com" next edit " *.dll" next edit " *.doc" next edit " *.exe" next edit " *.gz" next edit " *.hta" next edit " *.ppt" next edit " *.rar" next edit " *.scr" next edit " *.tar" next edit " *.tgz" next edit " *.vb?" next edit " *.wps" next edit " *.xl?" next edit " *.zip" next edit " *.pif" next edit " *.cpl" next end set name " builtin-patterns" next end config dlp rule edit " All-Email" set protocol email set sub-protocol smtp pop3 imap set field transfer-size set operator greater-equal next edit " All-HTTP" set protocol http set sub-protocol http-get http-post set field transfer-size set operator greater-equal next edit " All-FTP" set protocol ftp set sub-protocol ftp-get ftp-put set field transfer-size set operator greater-equal next edit " All-NNTP" set protocol nntp set field transfer-size set operator greater-equal next edit " All-IM" set protocol im set sub-protocol aim icq msn ym set field transfer-size set operator greater-equal next edit " HTTP-Visa-Mastercard" set protocol http set sub-protocol http-post set regexp " (\\W|\\b)(4\\d|5[1-5])\\d{2}([ \\-]?\\d{4}[ \\-]?){3}(\\W|\\b)" next edit " HTTP-AmEx" set protocol http set sub-protocol http-post set regexp " (\\W|\\b)3[47]\\d{2}([ \\-]?)\\d{6}\\2\\d{5}(\\W|\\b)" next edit " HTTP-Canada-SIN" set protocol http set sub-protocol http-post set regexp " (\\b|\\W)[1-79]\\d{2}([ \\-]?)\\d{3}\\2\\d{3}(\\b|\\W)" next edit " HTTP-US-SSN" set protocol http set sub-protocol http-post set regexp " \\b(?!000)([0-6]\\d{2}|7([0-6]\\d|7[012]))([ -]?)(?!00)\\d\\d\\3(?!0000)\\d{4}(\\b|\\W)" next edit " HTTP-Post-Not-Webex" set protocol http set sub-protocol http-post set regexp " WebEx" set regexp-negated enable set regexp-wildcard enable next edit " Email-AmEx" set protocol email set sub-protocol smtp pop3 imap set regexp " (\\W|\\b)(4\\d|5[1-5])\\d{2}([ \\-]?\\d{4}[ \\-]?){3}(\\W|\\b)" next edit " Email-Visa-Mastercard" set protocol email set sub-protocol smtp pop3 imap set regexp " (\\W|\\b)(4\\d|5[1-5])\\d{2}([ \\-]?)\\d{4}(\\3\\d{4}){2}(\\W|\\b)" next edit " Email-Canada-SIN" set protocol email set sub-protocol smtp pop3 imap set regexp " (\\b|\\W)[1-79]\\d{2}([ \\-]?)\\d{3}\\2\\d{3}(\\b|\\W)" next edit " Email-US-SSN" set protocol email set sub-protocol smtp pop3 imap set regexp " \\b(?!000)([0-6]\\d{2}|7([0-6]\\d|7[012]))([ -]?)(?!00)\\d\\d\\3(?!0000)\\d{4}(\\b|\\W)" next edit " Email-Not-Webex" set protocol email set sub-protocol smtp pop3 imap set regexp " WebEx" set regexp-negated enable set regexp-wildcard enable next edit " Large-Attachment" set protocol email set sub-protocol smtp pop3 imap set field attachment-size set value 5120 set operator greater-equal next edit " Large-FTP-Put" set protocol ftp set sub-protocol ftp-put set field transfer-size set value 5120 set operator greater-equal next edit " Large-HTTP-Post" set protocol http set sub-protocol http-post set field transfer-size set value 5120 set operator greater-equal next end config dlp compound edit " Email-SIN" set comment " Emails containing canadian SIN but are not WebEx invites" set protocol email set sub-protocol smtp pop3 imap set member " Email-Canada-SIN" " Email-Not-Webex" next edit " HTTP-Post-SIN" set comment " Posts containing canadian SIN but are not WebEx invites" set protocol http set sub-protocol http-post set member " HTTP-Canada-SIN" " HTTP-Post-Not-Webex" next end config dlp sensor edit " Content_Summary" config rule edit " All-Email" next edit " All-FTP" next edit " All-HTTP" next edit " All-IM" next edit " All-NNTP" next end next edit " Content_Archive" config rule edit " All-Email" set archive enable next edit " All-FTP" set archive enable next edit " All-HTTP" set archive enable next edit " All-IM" set archive enable next edit " All-NNTP" next end next edit " Large-File" config rule edit " Large-Attachment" next edit " Large-FTP-Put" next edit " Large-HTTP-Post" next end next edit " Credit-Card" config rule edit " Email-AmEx" next edit " Email-Visa-Mastercard" next edit " HTTP-AmEx" next edit " HTTP-Visa-Mastercard" next end next edit " SSN-Sensor" config rule edit " Email-US-SSN" next edit " HTTP-US-SSN" next end config compound-rule edit " Email-SIN" set status enable next edit " HTTP-Post-SIN" set status enable next end next end config webfilter content end config webfilter urlfilter end config spamfilter bword end config spamfilter emailbwl end config spamfilter ipbwl end config spamfilter mheader end config spamfilter dnsbl end config spamfilter iptrust end config firewall profile edit " strict" config log set log-web-ftgd-err enable end set ftp block oversize scan splice set http block oversize scan activexfilter bannedword cookiefilter javafilter rangeblock urlfilter unset https set imap block oversize scan bannedword spamemailbwl spamfsip spamfschksum spamfssubmit spamfsurl spamhdrcheck spamraddrdns set imaps spamfssubmit set pop3 block oversize scan bannedword spamemailbwl spamfsip spamfschksum spamfssubmit spamfsurl spamhdrcheck spamraddrdns set pop3s spamfssubmit set smtp block oversize scan bannedword spamemailbwl spamfsip spamfschksum spamfssubmit spamfsurl spamhdrcheck spamhelodns spamipbwl spamraddrdns spamrbl splice set smtps spamfssubmit splice set nntp block oversize scan config app-recognition edit " http" set port 80 next edit " https" set port 443 next edit " smtp" set port 25 next edit " pop3" set port 110 next edit " imap" set port 143 next edit " nntp" set port 119 next edit " ftp" set port 21 next edit " smtps" set port 465 next edit " pop3s" set port 995 next edit " imaps" set port 993 next end set im block oversize scan unset http-post-lang set http-avdb extended set smtp-avdb extended set pop3-avdb extended set imap-avdb extended set ftp-avdb extended set im-avdb extended set nntp-avdb extended set ftgd-wf-options strict-blocking set ftgd-wf-https-options strict-blocking next edit " scan" config log set log-web-ftgd-err enable end set ftp scan splice set http scan rangeblock unset https set imap scan set imaps spamfssubmit set pop3 scan set pop3s spamfssubmit set smtp scan splice set smtps spamfssubmit splice set nntp scan config app-recognition edit " http" set port 80 next edit " https" set port 443 next edit " smtp" set port 25 next edit " pop3" set port 110 next edit " imap" set port 143 next edit " nntp" set port 119 next edit " ftp" set port 21 next edit " smtps" set port 465 next edit " pop3s" set port 995 next edit " imaps" set port 993 next end set im scan unset http-post-lang set ftgd-wf-options strict-blocking set ftgd-wf-https-options strict-blocking next edit " web" config log set log-web-ftgd-err enable end set ftp splice set http scan bannedword rangeblock urlfilter unset https set imap fragmail set imaps fragmail spamfssubmit set pop3 fragmail set pop3s fragmail spamfssubmit set smtp fragmail splice set smtps fragmail spamfssubmit splice unset nntp config app-recognition edit " http" set port 80 next edit " https" set port 443 next edit " smtp" set port 25 next edit " pop3" set port 110 next edit " imap" set port 143 next edit " nntp" set port 119 next edit " ftp" set port 21 next edit " smtps" set port 465 next edit " pop3s" set port 995 next edit " imaps" set port 993 next end unset im unset http-post-lang set ftgd-wf-options strict-blocking set ftgd-wf-https-options strict-blocking next edit " unfiltered" config log set log-web-ftgd-err enable end set ftp no-content-summary set http no-content-summary rangeblock set https no-content-summary set imap fragmail no-content-summary set imaps fragmail spamfssubmit set pop3 fragmail no-content-summary set pop3s fragmail spamfssubmit set smtp fragmail no-content-summary splice set smtps fragmail spamfssubmit splice set nntp no-content-summary config app-recognition edit " http" set port 80 next edit " https" set port 443 next edit " smtp" set port 25 next edit " pop3" set port 110 next edit " imap" set port 143 next edit " nntp" set port 119 next edit " ftp" set port 21 next edit " smtps" set port 465 next edit " pop3s" set port 995 next edit " imaps" set port 993 next end unset im unset http-post-lang set ftgd-wf-options strict-blocking set ftgd-wf-https-options strict-blocking next end config vpn ssl web host-check-software edit " FortiClient-AV" set guid " C86EC76D-5A4C-40E7-BD94-59358E544D81" next edit " FortiClient-FW" set guid " 528CB157-D384-4593-AAAA-E42DFF111CED" set type fw next edit " AVG-Internet-Security-AV" set guid " 17DDD097-36FF-435F-9E1B-52D74245D6BF" next edit " CA-Anti-Virus" set guid " 17CFD1EA-56CF-40B5-A06B-BD3A27397C93" next edit " F-Secure-Internet-Security-AV" set guid " E7512ED5-4245-4B4D-AF3A-382D3F313F15" next edit " Kaspersky-AV" set guid " 2C4D4BC6-0793-4956-A9F9-E252435469C0" next edit " McAfee-Internet-Security-Suite-AV" set guid " 84B5EE75-6421-4CDE-A33A-DD43BA9FAD83" next edit " McAfee-Virus-Scan-Enterprise" set guid " 918A2B0B-2C60-4016-A4AB-E868DEABF7F0" next edit " Norton-360-2.0-AV" set guid " A5F1BC7C-EA33-4247-961C-0217208396C4" next edit " Norton-360-3.0-AV" set guid " E10A9785-9598-4754-B552-92431C1C35F8" next edit " Norton-Internet-Security-AV" set guid " E10A9785-9598-4754-B552-92431C1C35F8" next edit " Symantec-Endpoint-Protection-AV" set guid " FB06448E-52B8-493A-90F3-E43226D3305C" next edit " Panda-Antivirus+Firewall-2008-AV" set guid " EEE2D94A-D4C1-421A-AB2C-2CE8FE51747A" next edit " Panda-Internet-Security-AV" set guid " 4570FB70-5C9E-47E9-B16C-A3A6A06C4BF0" next edit " Sophos-Anti-Virus" set guid " 3F13C776-3CBE-4DE9-8BF6-09E5183CA2BD" next edit " Trend-Micro-AV" set guid " 7D2296BC-32CC-4519-917E-52E652474AF5" next edit " ZoneAlarm-AV" set guid " 5D467B10-818C-4CAB-9FF7-6893B5B8F3CF" next edit " AVG-Internet-Security-FW" set guid " 8DECF618-9569-4340-B34A-D78D28969B66" set type fw next edit " CA-Personal-Firewall" set guid " 14CB4B80-8E52-45EA-905E-67C1267B4160" set type fw next edit " F-Secure-Internet-Security-FW" set guid " D4747503-0346-49EB-9262-997542F79BF4" set type fw next edit " Kaspersky-FW" set guid " 2C4D4BC6-0793-4956-A9F9-E252435469C0" set type fw next edit " McAfee-Internet-Security-Suite-FW" set guid " 94894B63-8C7F-4050-BDA4-813CA00DA3E8" set type fw next edit " Norton-360-2.0-FW" set guid " 371C0A40-5A0C-4AD2-A6E5-69C02037FBF3" set type fw next edit " Norton-360-3.0-FW" set guid " 7C21A4C9-F61F-4AC4-B722-A6E19C16F220" set type fw next edit " Norton-Internet-Security-FW" set guid " 7C21A4C9-F61F-4AC4-B722-A6E19C16F220" set type fw next edit " Symantec-Endpoint-Protection-FW" set guid " BE898FE3-CD0B-4014-85A9-03DB9923DDB6" set type fw next edit " Panda-Antivirus+Firewall-2008-FW" set guid " 7B090DC0-8905-4BAF-8040-FD98A41C8FB8" set type fw next edit " Panda-Internet-Security-2006~2007-FW" set guid " 4570FB70-5C9E-47E9-B16C-A3A6A06C4BF0" set type fw next edit " Panda-Internet-Security-2008~2009-FW" set guid " 7B090DC0-8905-4BAF-8040-FD98A41C8FB8" set type fw next edit " Trend-Micro-FW" set guid " 3E790E9E-6A5D-4303-A7F9-185EC20F3EB6" set type fw next edit " ZoneAlarm-FW" set guid " 829BDA32-94B3-44F4-8446-F8FCFF809F8B" set type fw next end config vpn ssl web portal edit " full-access" set allow-access web ftp smb telnet ssh vnc rdp ping set heading " Welcome to SSL VPN Service" set page-layout double-column config widget edit 4 set name " Session Information" set type info next edit 2 set name " Bookmarks" set allow-apps web ftp smb telnet ssh vnc rdp next edit 3 set name " Connection Tool" set type tool set allow-apps web ftp smb telnet ssh vnc rdp next edit 1 set name " Tunnel Mode" set type tunnel set tunnel-status enable set ip-pools " SSLVPN-P-TUN-0" next end next edit " web-access" set allow-access web ftp smb telnet ssh vnc rdp ping set heading " Welcome to SSL VPN Service" config widget edit 4 set name " Session Information" set type info next edit 1 set name " Bookmarks" set allow-apps web ftp smb telnet ssh vnc rdp next end next edit " tunnel-access" set heading " Welcome to SSL VPN Service" config widget edit 4 set name " Session Information" set type info next edit 1 set name " Tunnel Mode" set type tunnel set tunnel-status enable set ip-pools " SSLVPN-P-TUN-1" next end next end config user group edit " FSAE_Guest_Users" set group-type directory-service next end config webfilter ftgd-ovrd end config webfilter ftgd-ovrd-user end config webfilter ftgd-local-rating end config vpn ipsec phase1-interface edit " To_cisco" set interface " wan1" set dhgrp 2 set proposal 3des-sha1 set keylife 86400 set remote-gw 83.206.64.250 set psksecret ENC V6WOCkCImwyn2B92ks25socQrgUmM7/DzA0guhYshmG32UXf2RbizntlskClIiZ5AE6Tem8C98J8MY7bZl8RUURJDhD8gGhe2mSEuXJ8E5yfyy5H next end config vpn ipsec phase2-interface edit " To_forti" set auto-negotiate enable set keepalive enable set pfs disable set phase1name " To_cisco" set proposal 3des-sha1 set replay disable set dst-subnet 192.168.1.0 255.255.255.0 set src-subnet 192.168.10.0 255.255.255.0 next end config firewall schedule recurring edit " always" set day sunday monday tuesday wednesday thursday friday saturday next end config firewall policy edit 1 set srcintf " internal" set dstintf " wan1" set srcaddr " all" set dstaddr " all" set action accept set schedule " always" set service " ANY" set nat enable next edit 2 set srcintf " To_cisco" set dstintf " internal" set srcaddr " subnet cisco" set dstaddr " lan subnet" set action accept set logtraffic enable set schedule " always" set service " ANY" next edit 3 set srcintf " internal" set dstintf " To_cisco" set srcaddr " lan subnet" set dstaddr " subnet cisco" set action accept set logtraffic enable set schedule " always" set service " ANY" next edit 4 set srcintf " To_cisco" set dstintf " wan1" set srcaddr " subnet cisco" set dstaddr " all" set action accept set logtraffic enable set schedule " always" set service " ANY" set nat enable next end config firewall policy6 end config firewall interface-policy end config firewall interface-policy6 end config firewall sniff-interface-policy end config firewall sniff-interface-policy6 end config log memory setting set status enable end config router rip config redistribute " connected" end config redistribute " static" end config redistribute " ospf" end config redistribute " bgp" end end config router ripng config redistribute " connected" end config redistribute " static" end config redistribute " ospf" end config redistribute " bgp" end end config router static edit 2 set device " To_cisco" set dst 192.168.1.0 255.255.255.0 set weight 50 next end config router ospf config redistribute " connected" end config redistribute " static" end config redistribute " rip" end config redistribute " bgp" end end config router ospf6 config redistribute " connected" end config redistribute " static" end config redistribute " rip" end config redistribute " bgp" end end config router bgp config redistribute " connected" end config redistribute " rip" end config redistribute " ospf" end config redistribute " static" end config redistribute6 " connected" end config redistribute6 " rip" end config redistribute6 " ospf" end config redistribute6 " static" end end config router multicast end

rwpatterson

New Member

In your static route, set the distance manually lower than the default. Equal won' t work.

A

Anonymous_UserAuthor

Contributor

Hi! Ok but on the cisco or the Fortigate configuration ?

emnoc

New Member

I don' t think that' s the problem. The default route is just that, a default route. You can' t place any other route on the cisco. The ACL that' s matching the traffic to encrypt is where I would look at 1st; access-list 100 remark SDM_ACL Category=4 access-list 100 remark IPSec Rule access-list 100 permit ip 192.168.1.0 0.0.0.255 192.168.10.0 0.0.0.255 that' s only matchin 192.168.1.0/24 to 192.168.10.0/24, what about to the rest of the world? Next, do you really need to NAT traffic ? Or I' m I missing something in your design? access-list 102 remark SDM_ACL Category=2 access-list 102 remark IPSec Rule access-list 102 deny ip 192.168.1.0 0.0.0.255 192.168.10.0 0.0.0.255 access-list 102 permit ip 192.168.1.0 0.0.0.255 any Just like with the ASA, I would do a nonat, and NOT nat traffic for the encrypted tunnel which you have defined with the following ; access-list 102 deny ip 192.168.1.0 0.0.0.255 192.168.10.0 0.0.0.255 With out spending alot of time, I would not enable NAT unless 192.168.1.0/24 has traffic going externally to the 871 and needs to be NAT' d to the outside interface ( ethernet 4 in this case ) I think the ACL for the crypto map on the cisco side should be written as; access-list 100 remark " encrypt all of 192.168.1.0/24 to anywhere" access-list 100 permit ip 192.168.1.0 0.0.0.255 0.0.0.0 255.255.255.255 reading your very 1st post, I ' m thinking you want to funnel all traffic from 192.168.1.0/24 thru the fortigate for possible security concerns ( web filter, AV, AS, etc...) is this a correct assumption?
