VPN Fortigate and Cisco RV042

Forum|Forum|14 years ago
April 20, 2012
7 replies
9451 views

Hello friends, I am not able to establish an IPSEC VPN between a FortiGate 60C and a RV042, I left the settings in Phase1 and Phase2 equal in both the FortiGate when the RV042. Can anyone here give me a hint? For 03 VPNS need to create, with the FortiGate the parent company and a RV042 in each subsidiary. Thank you!

Fullmoon

New Member

Hi, I deployed this setup before long time ago and for me pretty works fine. There is no special config on these setup

Ivanildo_GalvaoAuthor

New Member

Hello, you can post here the configuration that you put in the RV042 and the FortiGate? Thus I am safer. Thank you!

rich99

New Member

Hi, Try these commands in the CLI to troubleshoot vpn issues. The output will probably show you where the problem is. # diag debug application ike -1 # diag debug enable

Ivanildo_GalvaoAuthor

New Member

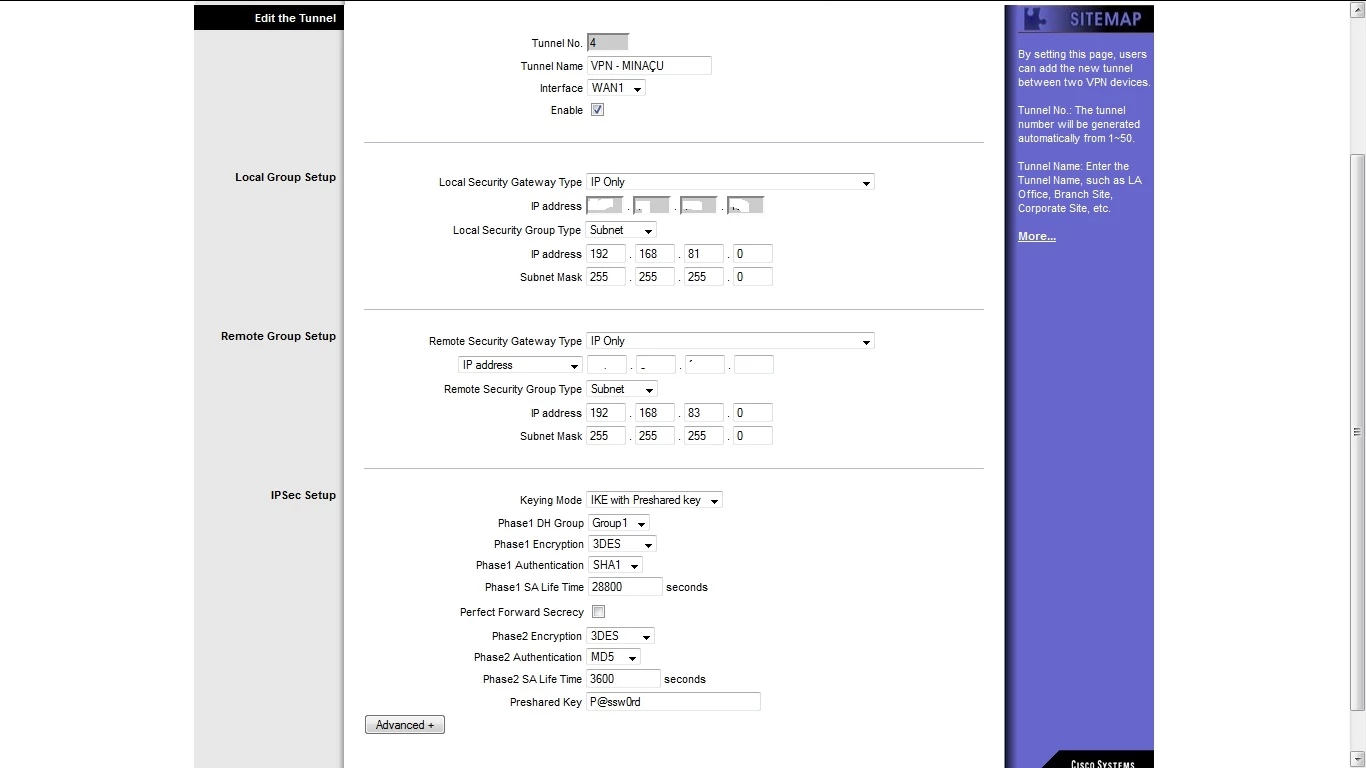

Friends, this is the configuration of RV042, see the image, I set the FortiGate the same way, with the same parameters, but the VPN does not rise, I will use the CLI debug commands to find out where the problem is, but who have a tip, practical experience of setting up this scenario. I thank you!


SA_rgio_Paulo

New Member

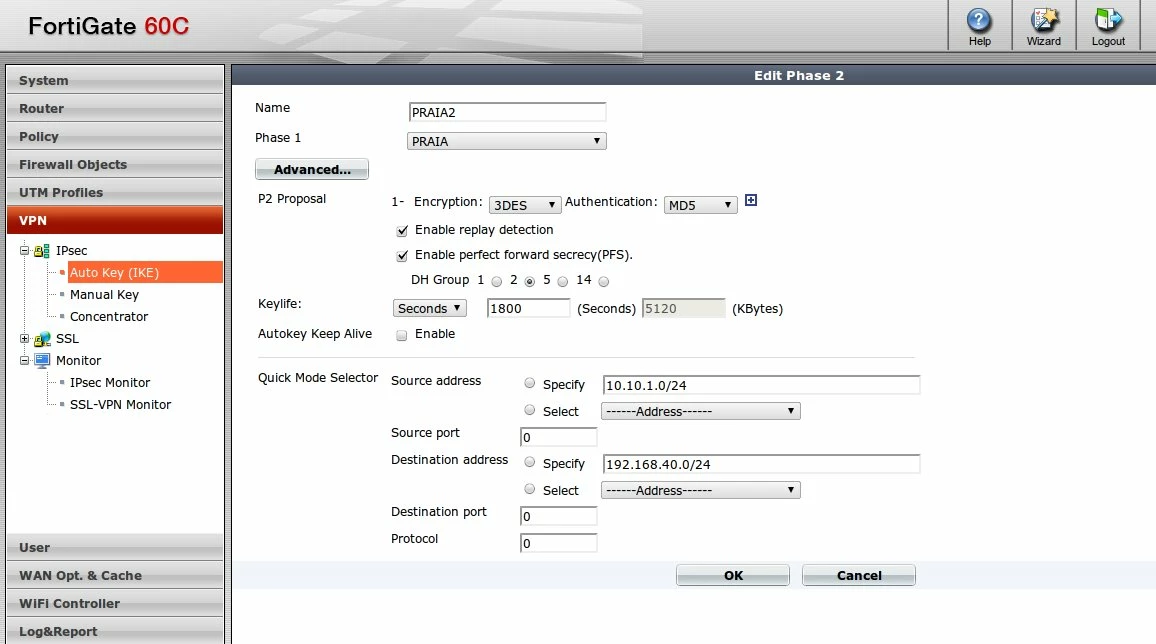

Hello Mr. Ivanildo, Please, test those configuration on the Fortigate side and replace one to Cisco side. Generally we use this configuration with Dynamic DNS into Fortigate to make IPSEC VPN.


SA_rgio_Paulo

New Member

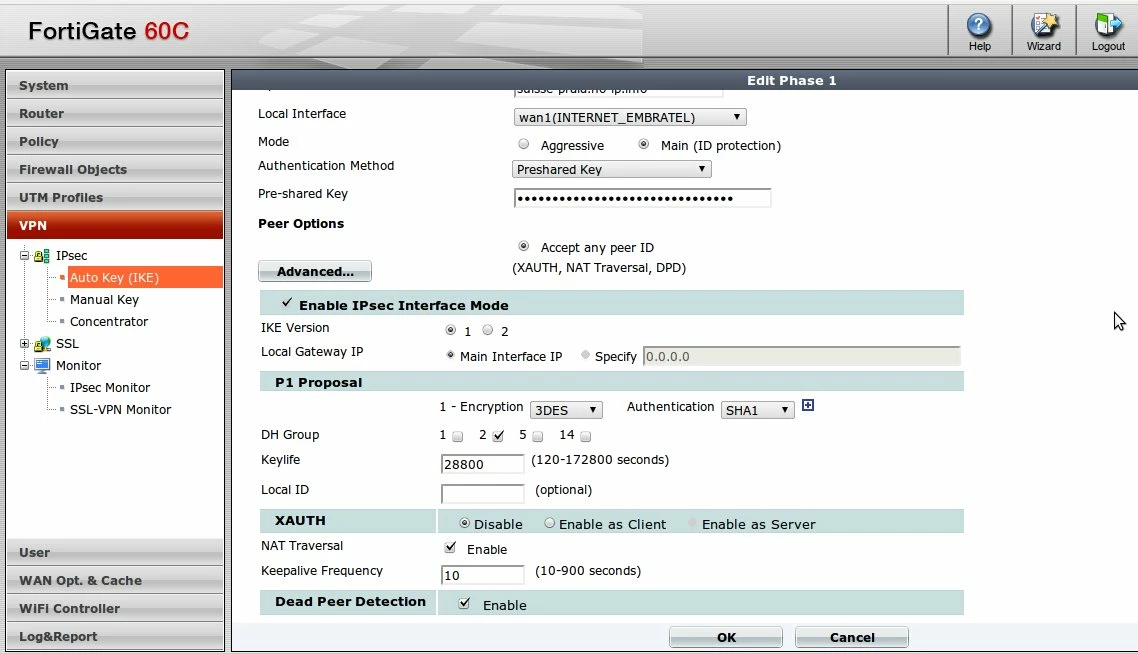

And into Phase 1, please look at the picture.


Ivanildo_GalvaoAuthor

New Member

Hello friends, I solved the problem, were two things, one that was needed to put the interface in an aggressive way and had to decrease the distance on the route of the WAN1 link to 5, I kept my distance from the link on WAN2 as 10 in this specific case VPN has to leave the WAN1. The third VPNS are working fine! Thanks for the support everyone!
