VLANS are not functioning in my lap

  • May 9, 2024
  • 6 replies
  • 4475 views

I Have WAN and LAN port.

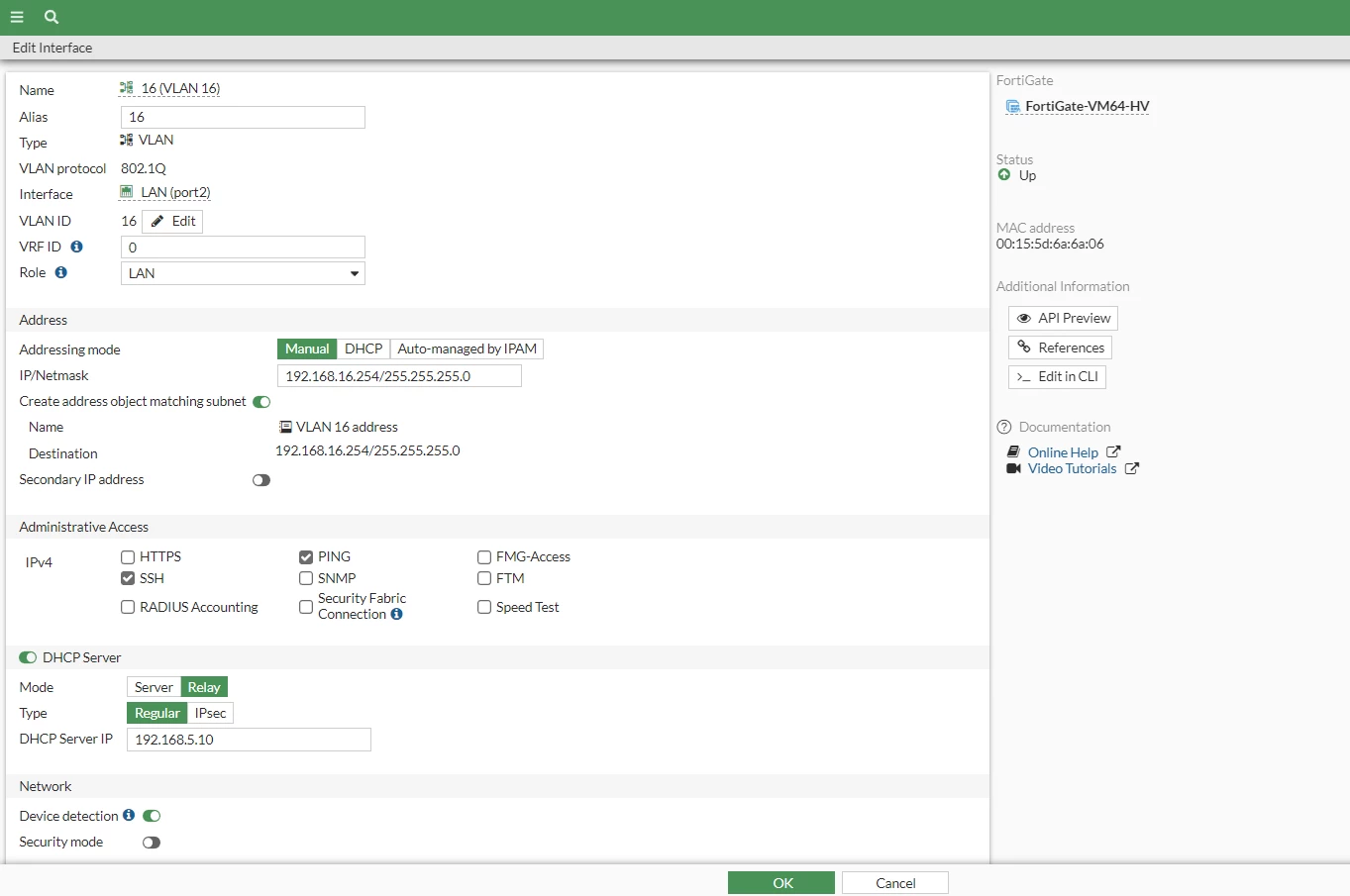

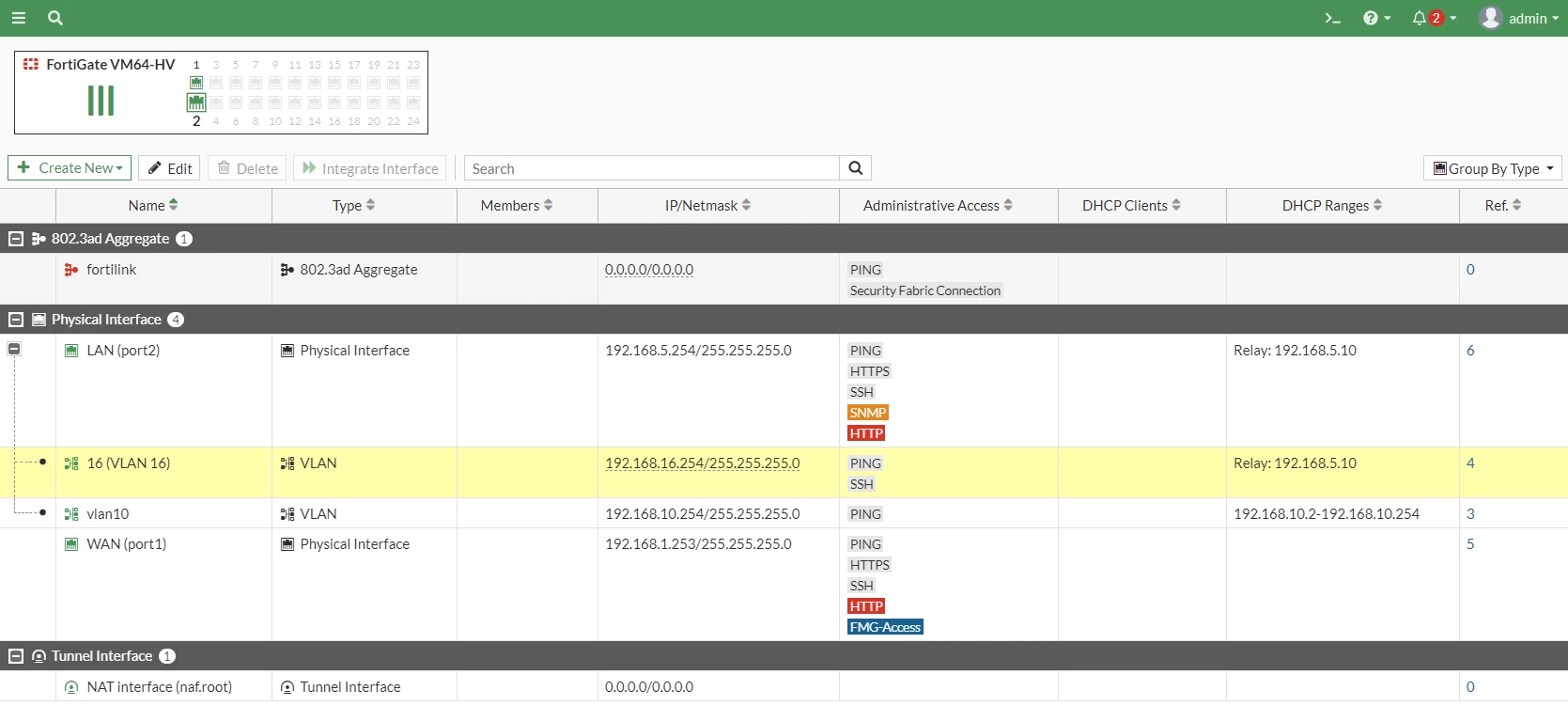

But I am trying to create vlans under the lan port, see the pictures

The LAN(port2) network is working fine on my vm's. It works also through dhcp server relay.



The ip adresses of my 2 vlans created under the LAN(port2) are not working in my vm's. and they cannot reach my Vm's.



I also created firewall policy from the VLANs to the WAN port, but that doesnt work either

I Am using Hyper-v Environment.



Any Suggestions please?



Schermafbeelding 2024-05-09 201518.pngSchermafbeelding 2024-05-09 203037.png



6 replies

AEK
SuperUser
AEK
SuperUser
May 9, 2024

Port2 is connected to which kind of device?

If it is L2 switch or server or anything else, the port of that device must be configured as trunk allowing VLANs 10 & 16.

AEK
    Nuur
    NuurAuthor
    New Member
    May 10, 2024

    Hi AEK,



    Its connected to a internal virtual Ethernet from Hyper-V
    I will try to configure the trunk, but I dont know if that is possible in the virtual Ethernet

    ozkanaltas
    ozkanaltas
    Valued Contributor III
    May 9, 2024

    Hello @Nuur ,



    You need to create trunk interface on Hyper-V for port2.

    https://learn.microsoft.com/en-us/powershell/module/hyper-v/set-vmnetworkadaptervlan?view=windowsserver2022-ps

    And also you need to create every vlan on Hyper-V for vm machines.



      Nuur
      NuurAuthor
      New Member
      May 10, 2024

      Hi @ozkanaltas



      I will try to follow the instructions in the link.

      I will let you know.

      Thanks

      Nuur
      NuurAuthor
      New Member
      May 11, 2024

      Hi @ozkanaltas,



      I am new to the Fortigate. Iam now facing issues that my VM Licence has expired.

      normally I do factory reset, then I import the configuration which I backed-up.

      But now I cant get passed the License window. I will look for a solution for this.



      But for my VLAN Issues

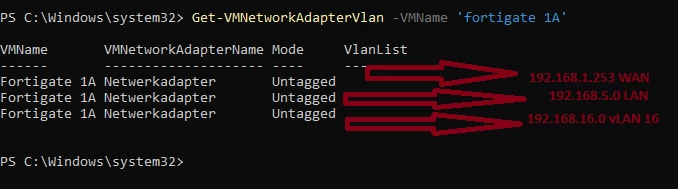

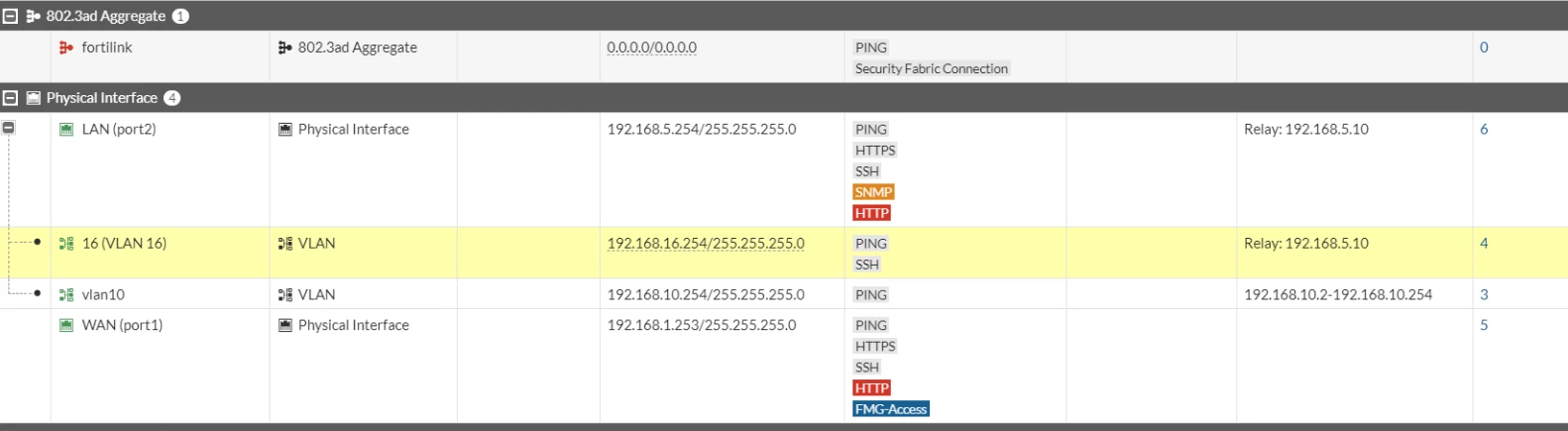

      Which interface should be trunked? The physical LAN port on fortigate of vlan16.

      Schermafbeelding 2024-05-11 095649.pngSchermafbeelding 2024-05-11 075823.png

      AEK
      SuperUser
      AEK
      SuperUser
      May 11, 2024

      Hi Nuur

      The screenshot shows that you created VLANs 10 and 16 on FG's port2, so it seems from FG side you did it well.

      Now you need to create the same from HyperV side, I mean create tagged VLANs on your HV port and propagate them to your VMs. I can't help on HV since I'm not experienced with it, but I'm pretty sure this doc can help:

      https://learn.microsoft.com/en-us/windows-server/virtualization/hyper-v/deploy/configure-virtual-local-areal-networks-for-hyper-v

      AEK
        OceanMiller
        OceanMiller
        New Member
        June 8, 2024

        I created two VLANs under the LAN port and assigned them specific IP addresses. While the main LAN network continues to operate seamlessly with my VMs, the VMs associated with the VLANs are not receiving the expected IP addresses and are unable to communicate with each other or the WAN. Interestingly, despite configuring part worn tyres uxbridge firewall policies to facilitate traffic from the VLANs to the WAN port.

        sw2090
        SuperUser
        sw2090
        SuperUser
        June 10, 2024

        Accoardng to your screenshots on FortiGate Side you alreaday created a trunk on Port2 (LAN) which has the two Vlans and port2 itself. This means traffic that hits the FGT and has a vid of one of the two vlans will be hitting that vlan interface any other traffic will match based on destination ip and routing.

        This also means that behind the port2 every hop between Port2 and your vms musst carry along those vids in both direction (which is what on switches you usually call a vlan-trunk). This makes sure that vlan tagged traffic can reach your vms.

        This also includes that (as it is the last hop before your vms) HyperV also has to do that.

        Alas I cannot say much about HyperV hence we only use vmware here.

          ceed
          ceed
          New Member
          May 16, 2025

          bonjour, il faudra configurer le vswitch pour les vlan

          exemple :  commande powershell :    set-vmnetworkadaptervlan -vmname <vmforti> -trunk -allowedvlanidlist 1-100 -nativevlanid 0


            AEK
            SuperUser
            AEK
            SuperUser
            May 17, 2025

            Here is the full man page.

            https://learn.microsoft.com/en-us/powershell/module/hyper-v/set-vmnetworkadaptervlan?view=windowsserver2025-ps

            AEK
