VDOM Routing

Forum|Forum|8 years ago
September 21, 2017
1 reply
7327 views

Hi,

I am new to Fortigate. I got 4 Vdoms (Management Vdom configuration). I am following link http://help.fortinet.com/fos50hlp/52data/Content/FortiOS/fortigate-virtual-domains-52/inter-VDOM.htm#Example

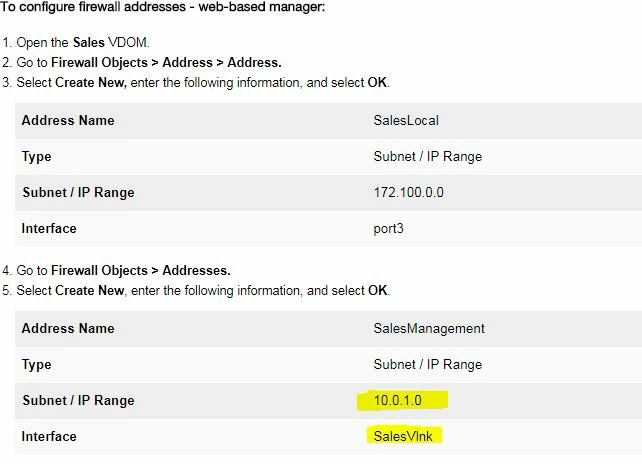

Can I put any IP address for link interface? In example, both accounting and sales link got 10.0.1.0


oheigl

New Member

If you don't need NAT and not directly connect to the VDOM links, you don't have to assign any IP on the VDOM links, this would simplify the configuration for you. If you want to route something over the VDOM link, set the gateway in the route to 0.0.0.0 and it works.
