VDOM link can not be removed by GUI..

  • May 19, 2015
  • 3 replies
  • 13062 views

hi, fortinet..



I think it's a bug...

when could you fix it???

5.2.4 or later??

3 replies

emnoc
emnoc
New Member
May 19, 2015

Did you check any dependency against  the  interface for the vdom link. Check out my blog on one of many ways to execute this.



http://socpuppet.blogspot.com/2014/10/a-few-examples-of-how-to-do-dependency.html



storaid
storaidAuthor
New Member
May 19, 2015

emnoc wrote:

Did you check any dependency against  the  interface for the vdom link. Check out my blog on one of many ways to execute this.



http://socpuppet.blogspot.com/2014/10/a-few-examples-of-how-to-do-dependency.html

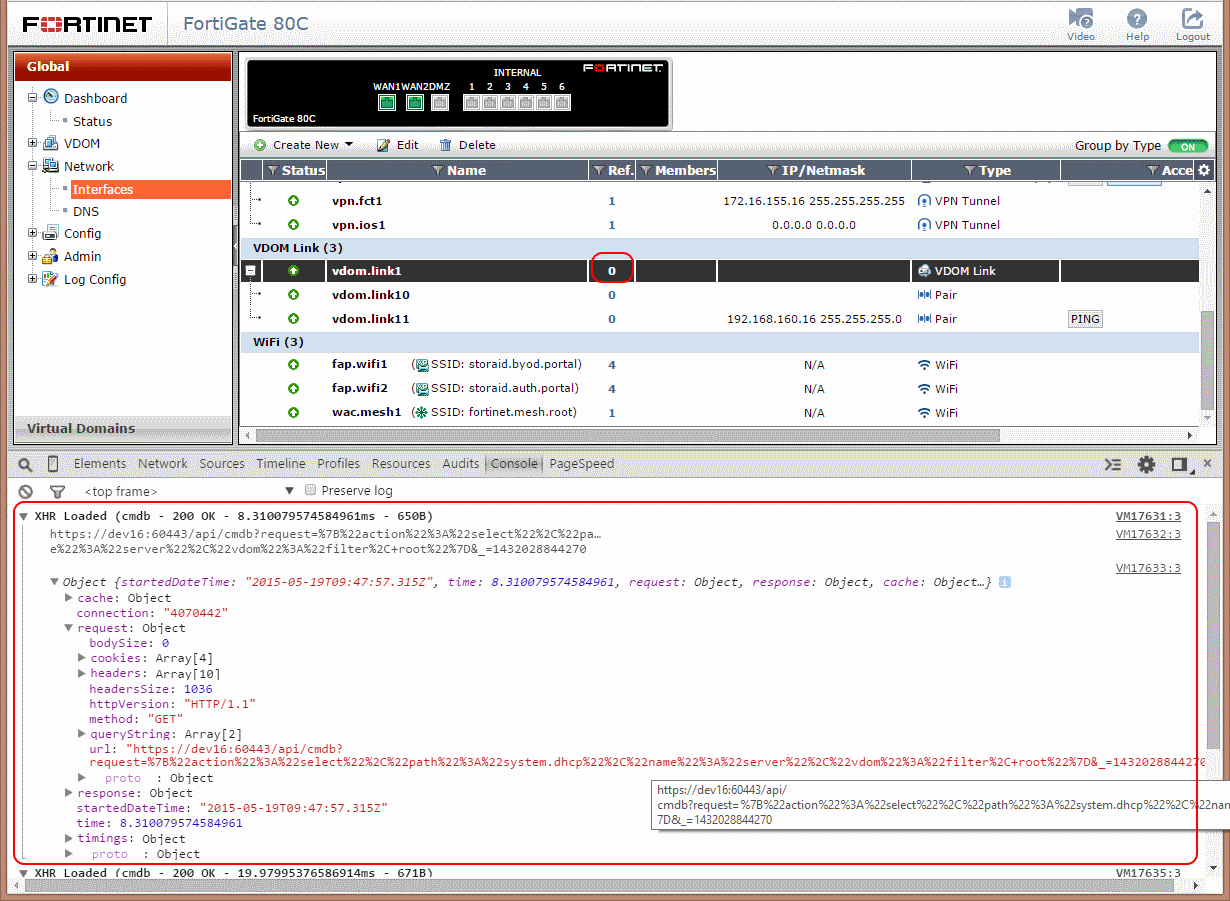

I can find an ajax request has been sent when remove operation was executed..

but nothing happens...

it's no problem for removing VDOM-link via CLI...

emnoc
emnoc
New Member
May 19, 2015

Open a case  with TAC, it could be a bug and needs tracking.





Christopher_McMullan
Staff
Christopher_McMullan
Staff
May 19, 2015

It may or may not end up being resolved as a bug, but in my mind it's more a question of unintended confusion. If I create an inter-VDOM link, then try to delete it from the GUI, I'm doing so under System > Network > Interfaces.



If you remove the link from the CLI, you're doing so under 'config system vdom-link', if I'm not mistaken.



The bug isn't so much the GUI trying to delete a VDOM link as it is the GUI trying to remove the link as an interface. The VDOM link, however, is a hybrid: it's an interface with a presence in multiple VDOMs, so it's dynamically generated with a trailing number to identify itself in a unique way in each VDOM.

storaid
storaidAuthor
New Member
May 19, 2015

Christopher McMullan_FTNT wrote:

It may or may not end up being resolved as a bug, but in my mind it's more a question of unintended confusion. If I create an inter-VDOM link, then try to delete it from the GUI, I'm doing so under System > Network > Interfaces.



If you remove the link from the CLI, you're doing so under 'config system vdom-link', if I'm not mistaken.



The bug isn't so much the GUI trying to delete a VDOM link as it is the GUI trying to remove the link as an interface. The VDOM link, however, is a hybrid: it's an interface with a presence in multiple VDOMs, so it's dynamically generated with a trailing number to identify itself in a unique way in each VDOM.

hello.. this issue may be fixed for next release if it was confirmed?



I don't meet this issue with latest v5.0..
