So i recently set up an Authentik radius server

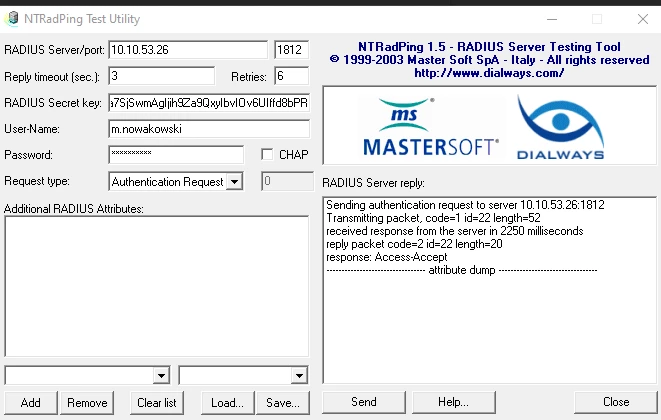

it works properly as tested by radtest and NTRadPing

Authentik itself also returns "accept" when asked by fortigate

But fortigate refuses to acknowledge that anything is properly configured

debug response:

RTR-032 # diagnose test authserver radius VFX_Authentik pap test test
authenticate 'test' against 'pap' failed, assigned_rad_session_id=103199522320389 session_timeout=0 secs idle_timeout=0 secs!

Does anyone have any idea what could be wrong?

AEK

SuperUser

Which version is your FortiGate?

Since CVE-2024-3596 fix, FortiOS (7.2.10 & 7.4.5) requires the "Message(Authenticator" attribute. Probably it is not enabled on your RADIUS server.
You can check with diag debug command and try again.

diagnose debug console timestamp enable
diagnose debug application fnbamd -1
diagnose debug enable

On case your RADIUS server doesn't support it then try update/upgrade it.

Otherwise there is a workaround in FOS 7.2.11 & 7.4.6 that allows you disable the "Message-Authenticator" attribute.

config user radius
 edit rad1
  set require-message-authenticator disable
 end

Hope it helps.

AEK

IT_DSSAuthor

Visitor III

Unfortunately, neither enabling message-authenticator in Authentik radius (though i'm not sure that worked), nor disabling it in fortigate worked. In the end the fortigate still seems to want it

to be funny, diagnose against pap worked
RTR-032 # diagnose test authserver radius VFX_Authentik pap test test
authenticate 'test' against 'pap' succeeded, server=primary assigned_rad_session_id=106803002163201 session_timeout=0 secs idle_timeout=0 secs!

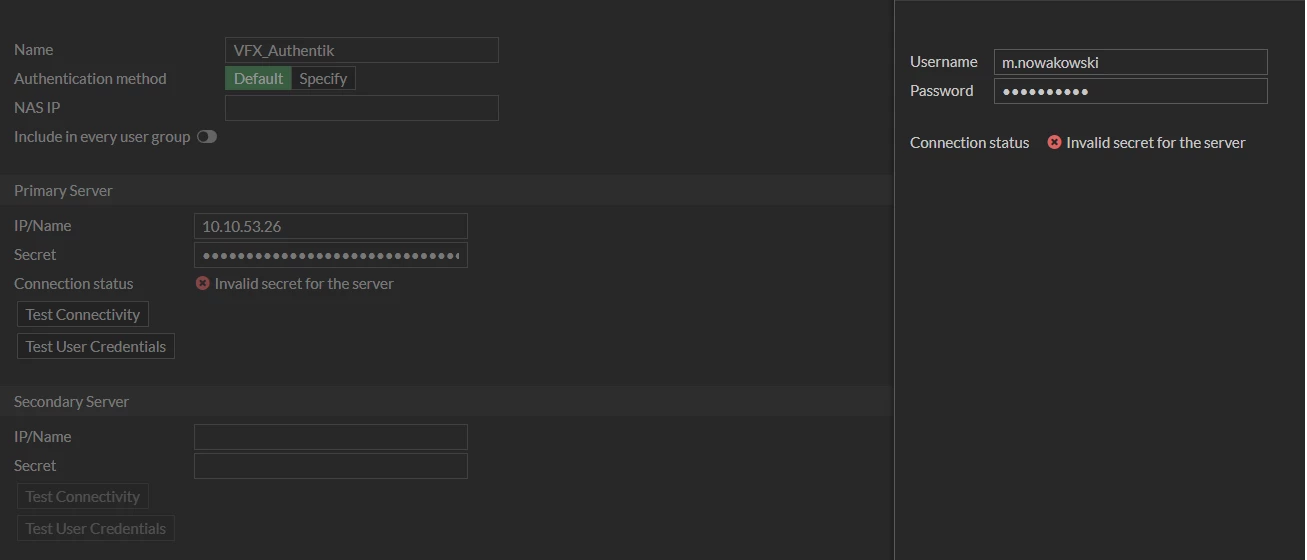

but testing user credentials in radius settings still doesn't work

IT_DSSAuthor

Visitor III

To be even funnier, even though the testing fails, using vpn with this radius server works O.O, thank you very much for the help
