Unable to ping/login to my Voip interface after upgrading from Forti200D to Forti200E

2 replies
3876 views

Hi,

I've recently upgraded my fortigate from a 200D to a 200E system and I copied the network configuration.

My fortiOS IS 5.6.7.

I have a voip server connected via port1 and an ipv4 policy for it (the phones are working just fine), however i'm unable to ping the voip UI (I ran tracert on the IP and saw it's trying to look outside my internal network)

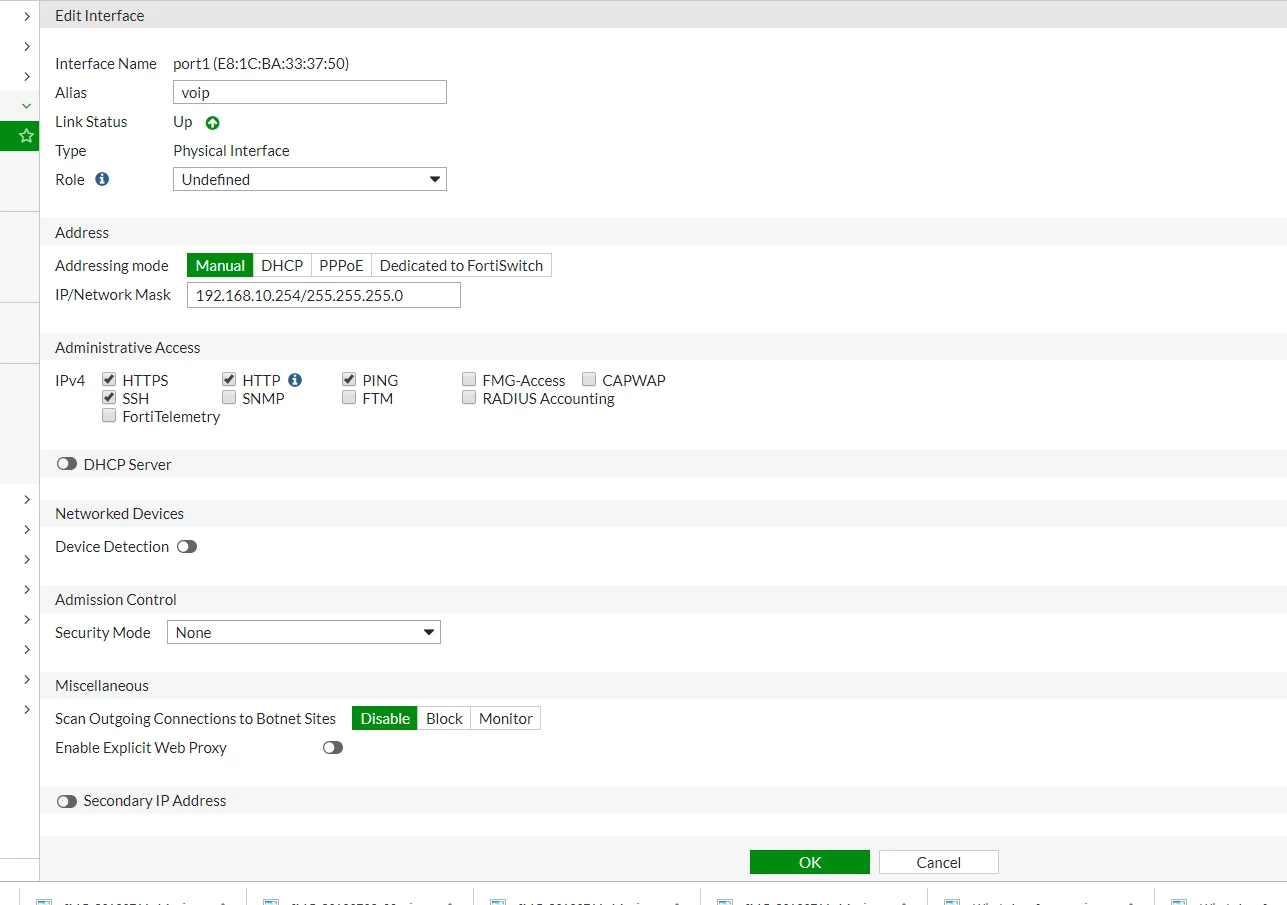

On the forti 200D it worked just fine with same rules I also ran diagnose debug config-error-log read on the CLI after the upgrade and found no errors. attached is the voip configuration (the UI is on 192.168.10.1 and I need to access it in order to make changes) Thanks.


Dave_Hall

New Member

Do you have a static route setup for port1? Check the routing monitor to see that the routes are set up correctly.

moran1409 wrote:
I have a voip server connected via port1 and an ipv4 policy for it (the phones are working just fine), however i'm unable to ping the voip UI (I ran tracert on the IP and saw it's trying to look outside my internal network)
