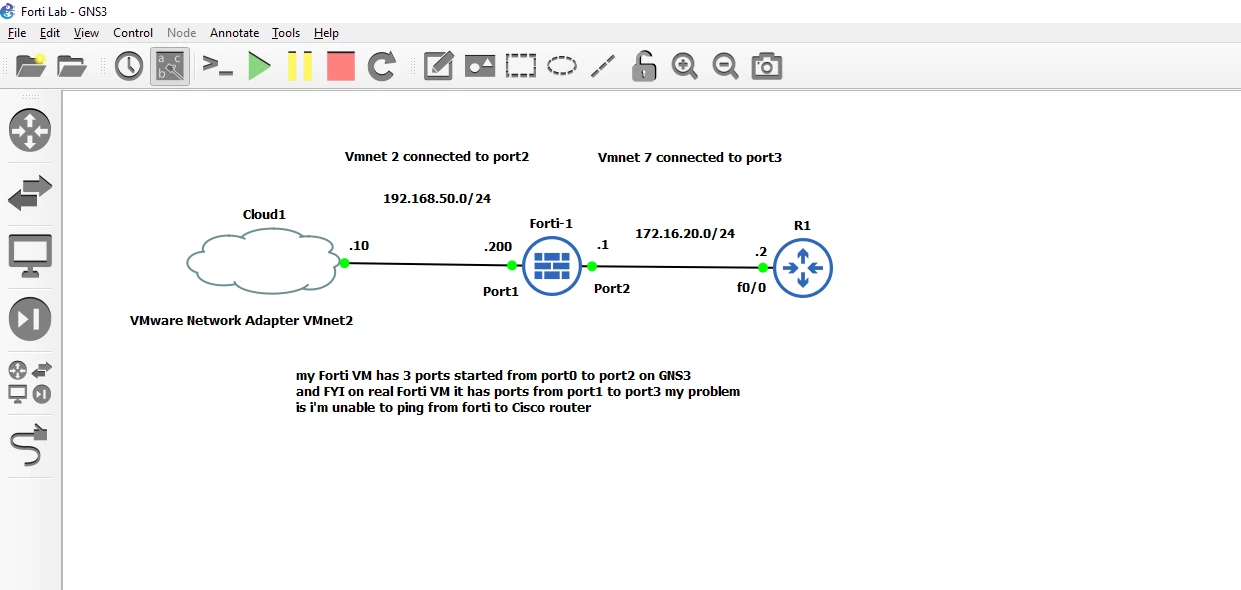

unable to ping from FortiGate VM throw Port2 and Port3

Hi @AhmedWahba ,

Your description is really unclear.

Can you elaborate on the issue?  Something like, what IP did you try to Ping?  Did you capture sniffer packets?  What does the routing table look like on FGT?  Did you specify the Ping source IP?  And so on.

First of all, go to device inventory (dashboard) and make sure the devices are connected to the right ports. If not, correct the interface/VLAN assignment from VMware and try again.

It seems like you can't ping devices on Port2 and Port3 of your FortiGate VM, even though ping is enabled. Since Port1 works fine, check these:

1. Ensure Port2/Port3 IPs and subnets are correct.

2. Verify firewall policies allow ICMP traffic.

3. Check routing tables for proper routes.

4. Confirm ARP entries for connected devices.

5. Ensure ports are up and error-free.

If the issue persists, review logs or contact Fortinet support.
