Question

Unable to change Operation Mode

  • October 11, 2014
  • 3 replies
  • 24782 views
Hi all, I have bought a Fortigate 200D recently, and about to configure it. But i cant change the operation mode from NAT to Transparent. Both Web GUI & CLI also failed. The CLI come out with a message below :- MYAEFW-01 # MYAEFW-01 # config system settings MYAEFW-01 (settings) # set opmode transparent MYAEFW-01 (settings) # set manageip 192.168.2.2/255.255.255.0 MYAEFW-01 (settings) # set gateway 192.168.2.1 MYAEFW-01 (settings) # end Cannot change to transparent mode because this vdom contains the following virtual switch: lan node_check_object fail! for opmode transparent Attribute ' opmode' value ' transparent' checkingfail -7 Command fail. Return code -7 Base on this message, i try to find the " virtual switch" inside the Interface option, but i only saw a " Hardware Switch" inside and unable to disable or delete it. I am totally new to this firewall unit, hopefully someone can answer my question. Thanks, Desmond Low

    3 replies

    emnoc
    emnoc
    New Member
    October 11, 2014
    I would pull the config and use a unix grep or find&replace and find the links and association to the vdom and switch. i bet you have a Layer3 addressed interface for the lan switch.
    Dave_Hall
    Dave_Hall
    New Member
    October 11, 2014

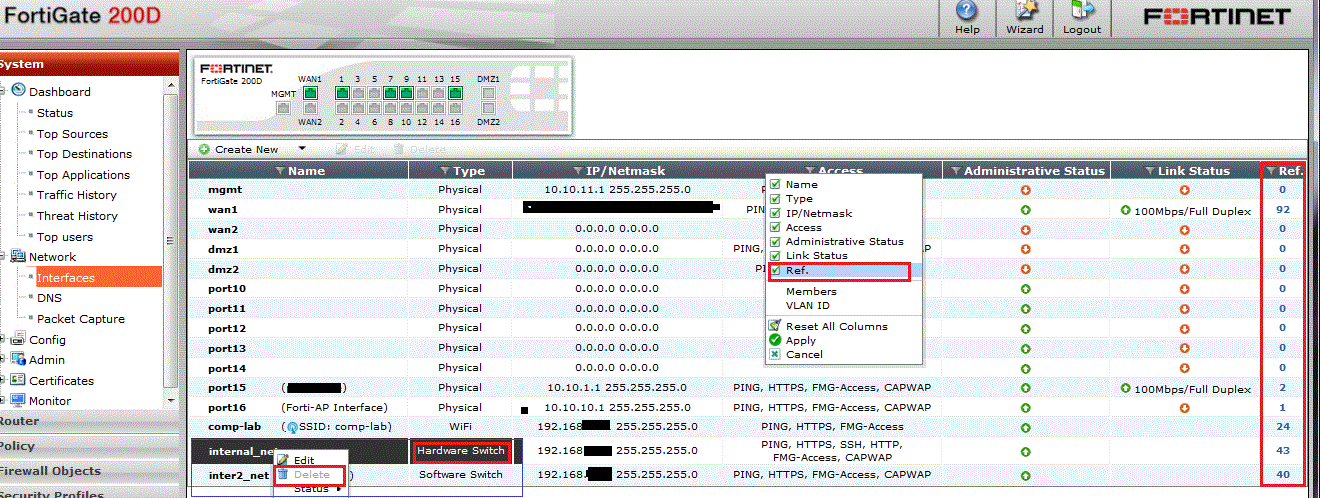

    By default or through a factory reset the config has a hardware switch called lan, which combines all the internal ports 1 through 16. You need to delete this lan interface, which is easy to do from the GUI. You need to make sure there are no references to this lan interface or you will not get the option to delete it. You can check this by enabling the " Ref." column (just right click on the column headings and add it). The default config will just have a firewall policy from lan to wan1 -- just delete that policy and I think you should be good with deleting that that interface. Once the lan interface has been deleted, you should see individual ports 1 though 16. You should be able to switch the Fortigate into transparent mode after that. (Firmware used in the fgt in the screenshots is 5.0.9.)
    Mark_Oakton
    Mark_Oakton
    New Member
    October 15, 2014
    Make sure you also disable dhcp on all interfaces
