Unable access local server through Public IP after configured policy route
- January 3, 2017
- 1 reply
- 4639 views
Hi All,

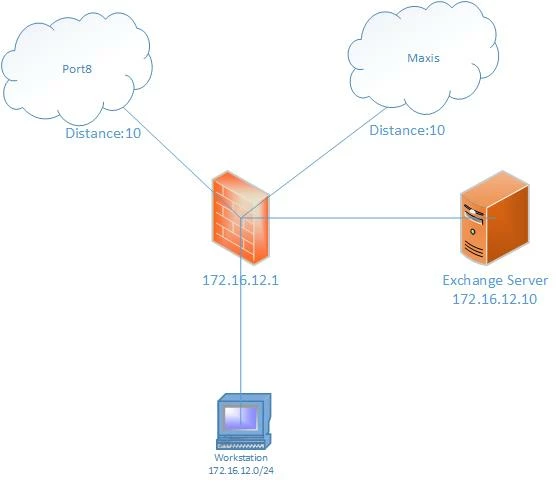

i recently subscribe a new ISP For secondly WAN line, below is my config related to that two WAN line and my routing rules,all machine under VLAN12 are able to access access and my local server without any issues. but i cannot access my local server through Public IP after i add the policy route(Front colour Blue) to force my vlan12 network to specific WAN line(Port8),vlan12 network had been successful force route to Port8 WAN line.
Anyone got idea for this ?
config router policy edit 8 set input-device "vlan12" set src "172.16.12.0/24" set dst "0.0.0.0/0.0.0.0" set output-device "port8"
config firewall vip edit "EXCHANGESVR" set extip 202.xxx.xxx.xxx set extintf "port8" set mappedip "172.16.12.10" config firewall policy edit 81 set srcintf "port8" set dstintf "vlan12" set srcaddr "all" set dstaddr "EXCHANGESVR" set action accept set schedule "always" set service "SMTP" "SMTPS" "HTTPS" "HTTP" "ALL_ICMP" "ALL_ICMP6" set utm-status enable set av-profile "exchangeAD" set spamfilter-profile "ExchangeEmail" set ips-sensor "exchangeSMTPIPS" set profile-protocol-options "ServerProxy" set ssl-ssh-profile "default" next edit 84 set srcintf "vlan12" set dstintf "port8" "Maxis" set srcaddr "vlan12_network" set dstaddr "all" set action accept set schedule "always" set service "ALL" set logtraffic all set nat enable next config system interface edit "port8" set vdom "root" set ip 202.xxx.xxx.xxx 255.255.255.252 set allowaccess ping https set type physical set spillover-threshold 50 set weight 50 set snmp-index 13 next edit "Maxis" set vdom "root" set mode pppoe set distance 10 set allowaccess ping https set fail-detect enable set fail-detect-option detectserver set spillover-threshold 50 set weight 50 set snmp-index 4 set username "xxxxxxxxxxxxxxxxx" set password ENC xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx set interface "wan2" set vlanid 621 next end config router static edit 5 set gateway 202.xxx.xxx.xxx set device "port8" next end
