Transparent Mode with Three WAN Connection

Forum|Forum|2 years ago
February 9, 2024
3 replies
1585 views

Hello techies,

We have requirements to configure the firewall without changing the IP addresses on the existing infra.

We have a plan to configure the Firewall in Transparent Mode.

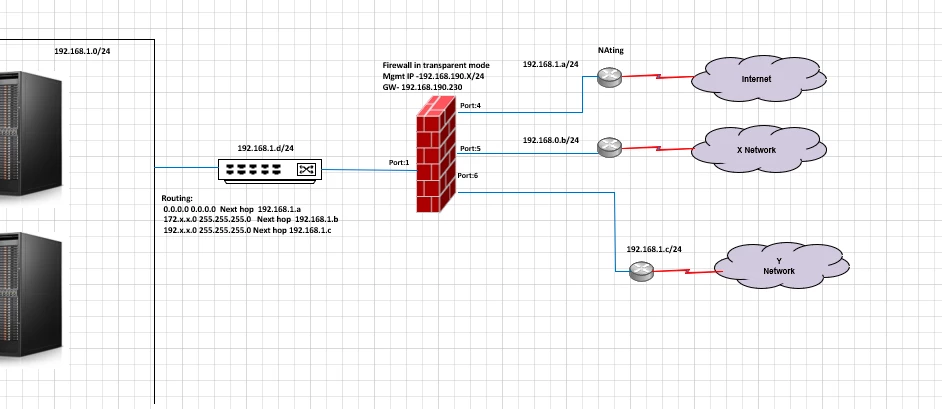

The attached Scenario is possible? and any one implemented the below scenario?

TP MOde-2.png

FortiGate

AEK

SuperUser

Hello Ahmed

Your design is correct.

AEK

dbu

Staff

Hello @Suh_Ahamed ,
Yes it is possible. Usually in transparent mode the firewall does not change the packets, but only inspecting the flow.
Here is a useful handbook to help you in your configuration .

https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/5aa37c8a-1a11-11e9-9685-f8bc1258b856/fortigate-transparent-mode-56.pdf

Suh_AhamedAuthor

New Member

Hello techies,

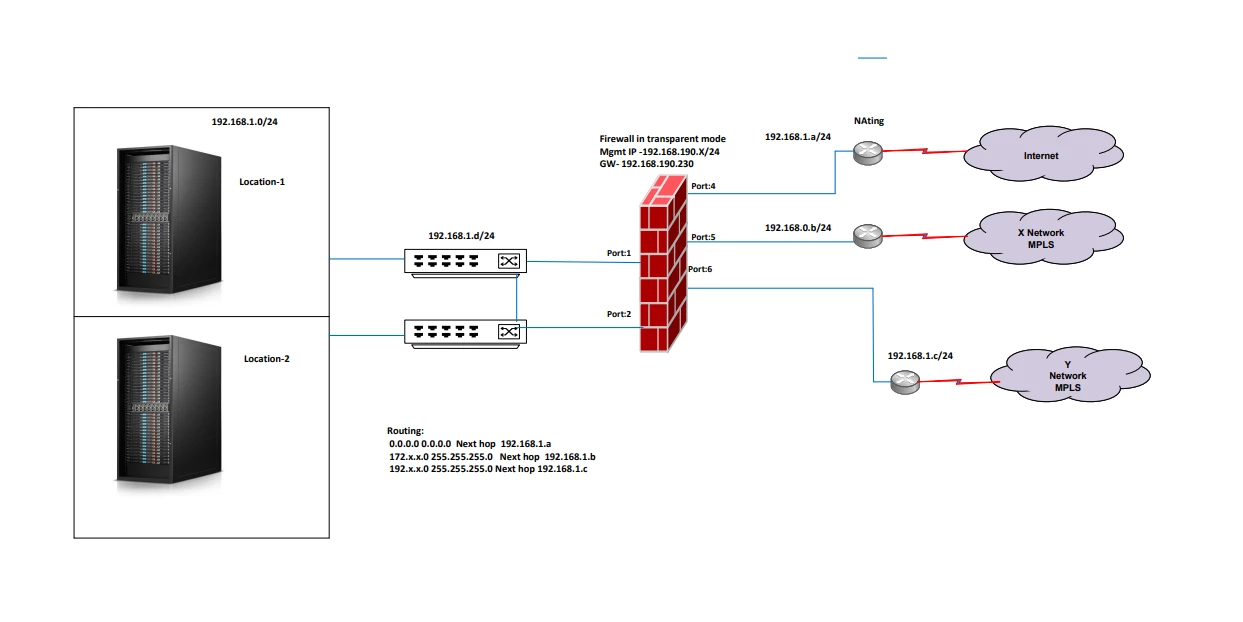

The below solution will create a layer 2 loop ?

or it's possible in the FortiGate firewall with TP mode.

AEK

SuperUser

Hi Ahmed

A loop is possible. Check this tech tip to avoid it.

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Transparent-mode-best-practices/ta-p/196626
