Traffic Shaping Policies - QOS for video band (NVR)

As per my understanding and experience with traffic shaping, you have to know where is the client application side and server application side.

A correct policy would be as follows:

• Source Interface: Interface on which the client App is located
• Ongoing Interface: Interface on which the client server App is located

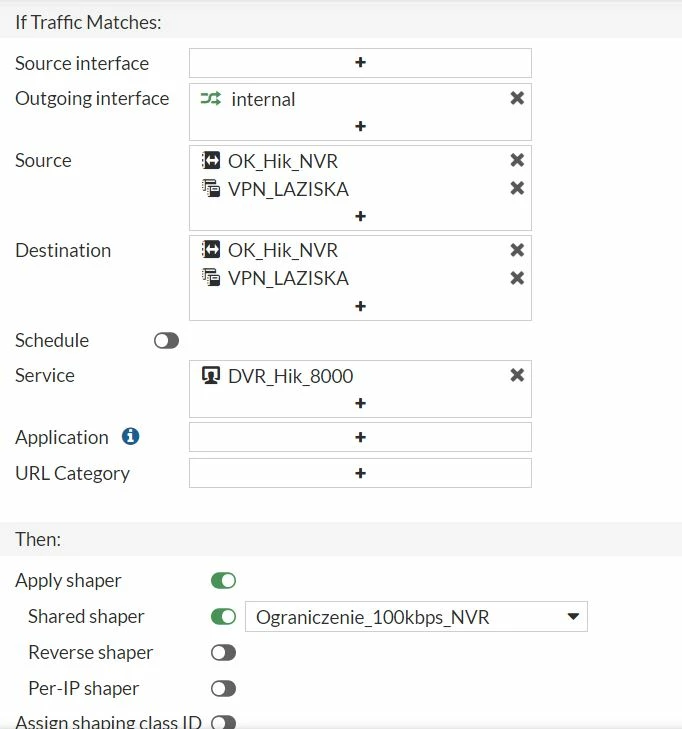

If I'm not wrong in your policy I feel like your client application is in the "internal" interface, and you have set it as Outgoing Interface. If so then I don't think it will work.

If you think what I said is correct then in addition to that you should use reverse shaper in order to limit the data coming from the server side.

Hi @sliver001,

Please check and make sure Source/Outgoing interfaces are configured correctly. You can also enable Reverse shaper.

Regards,

Hi @sliver001

Hi
I think you should check by command "diag sys session list"
In the output, you should find the correct session in that table. To know which protocol ?, which port ?, which direction? and which Traffic shaping had applied to your video traffic.

RG/Bill

I think I know what the problem is. The host belongs to two policies. The first one for the entire network allows full bandwidth. The second one only for 1 PC has bandwidth division. How to set a higher priority for the other one?
