Question

Traffic Shaper

  • June 16, 2025
  • 1 reply
  • 406 views

I do 5 minutes speedtest to the internet but why in the traffic shapper the utilization seem very low

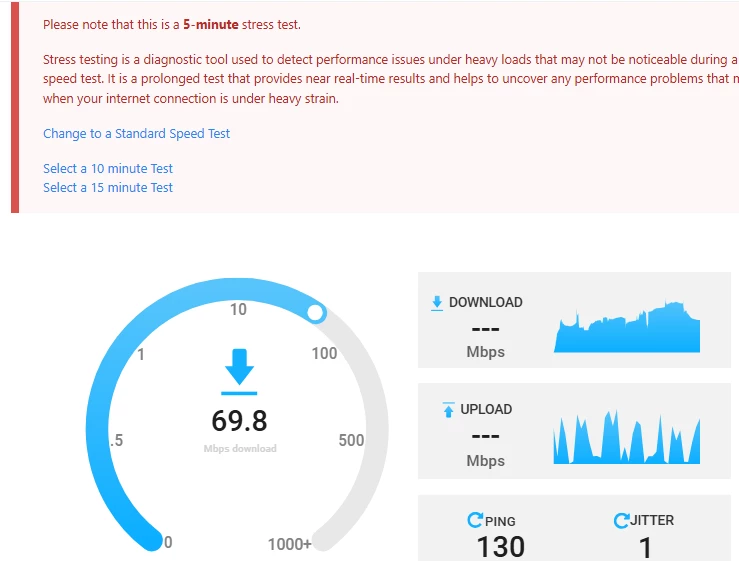

Screenshot 2025-06-16 201421.png

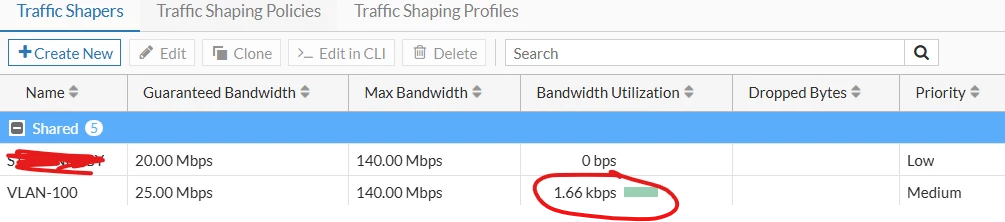

Screenshot 2025-06-16 201451.png

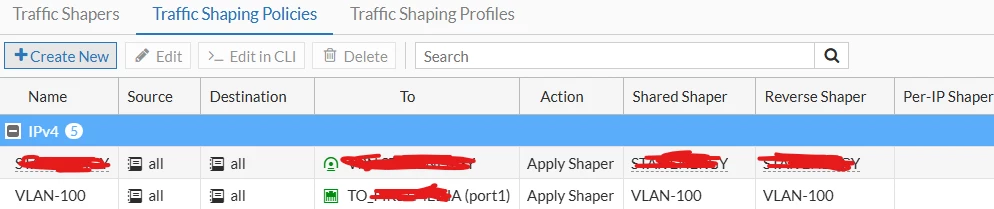

Screenshot 2025-06-16 201559.png

1 reply

BillH_FTNT
Staff
BillH_FTNT
Staff
June 16, 2025

Hi HS08,

The likely issue is that the policy you configured does not cover all traffic. I recommend using Wireshark on your PC to analyze the traffic pattern (IP addresses, ports, etc.) of the speed test. Then, you can adjust your QoS configuration on the gateway accordingly. thanks

Bill

HS08
HS08Author
Visitor III
June 17, 2025

I try to limit my speed to 50Mbps and seem my real traffic limited

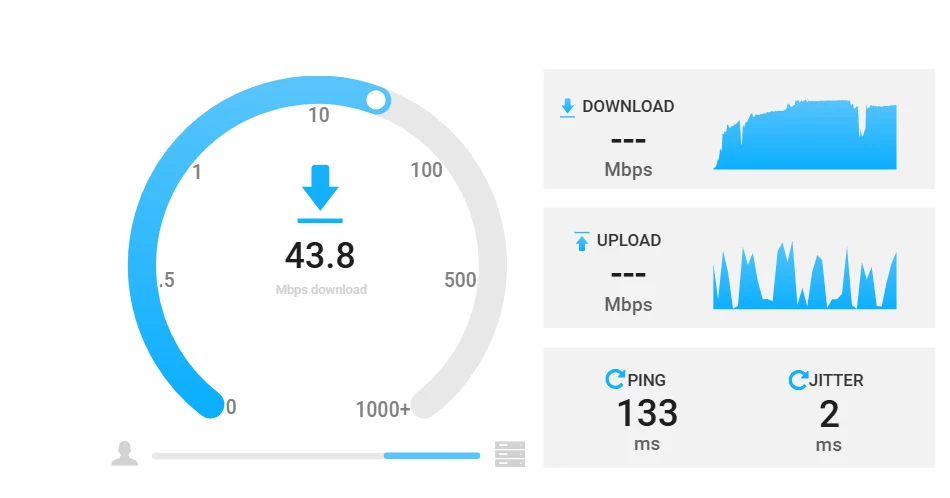

Screenshot 2025-06-17 082405.png



This same with the max bandwidth in traffic shapper, but bandwidth utilization always small (only in kbps)

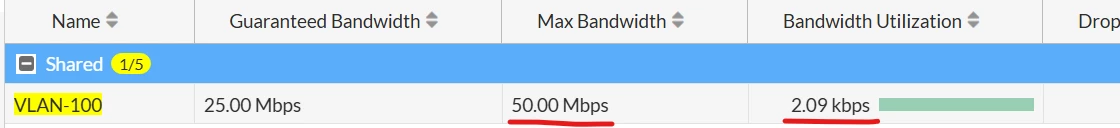

Screenshot 2025-06-17 082521.png
