Traffic match with wrong Schedule

Forum|Forum|2 years ago
July 4, 2024
19 replies
5994 views

Foritgate FW version : 7.4.4

I have created two proxy policy with different schedule, office hour and non office hour.

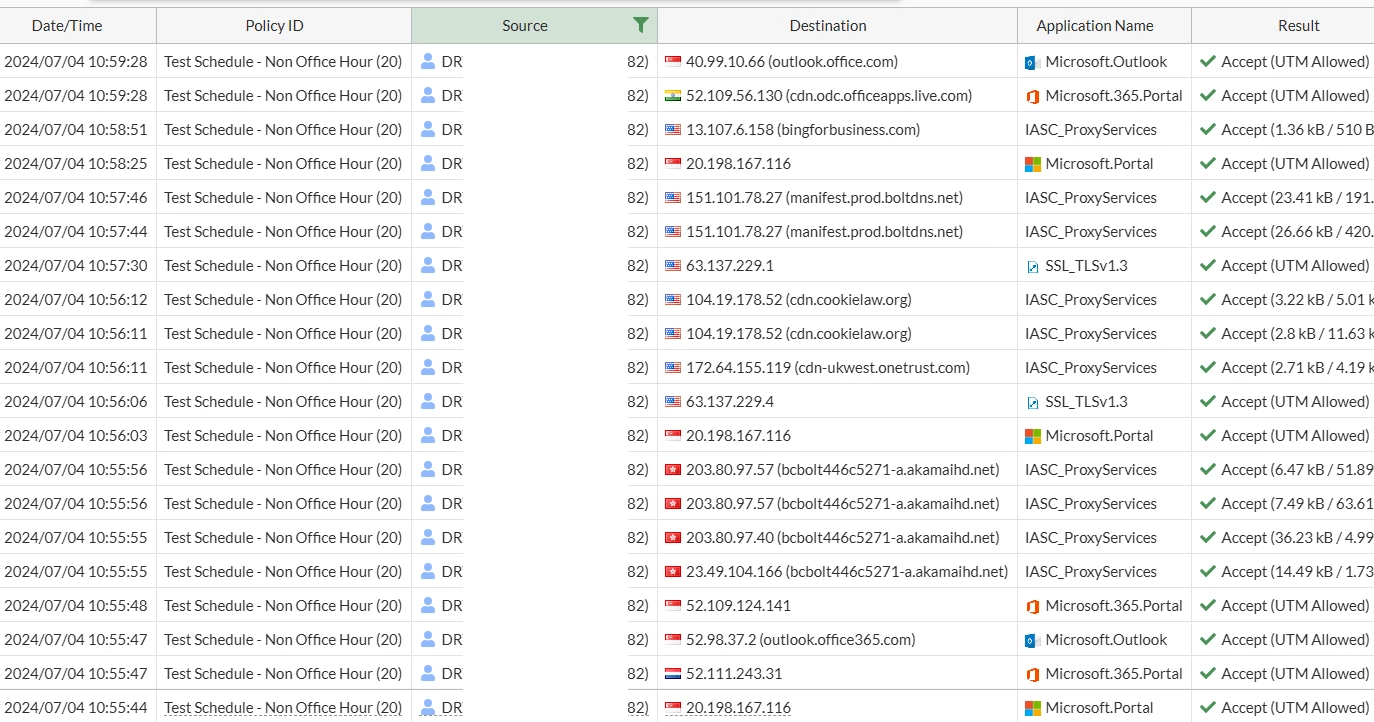

and i notice that the traffic is matched with non office hour schedule and policy when I access internet in office hour.

anyone have experience this issue ?

Observed Update on 8/July/2024:

Traffic between 4PM to 3 AM will go to office hour policy with schedule 8AM-7PM

Traffic between 3AM to 4 PM will go to non office hour policy with schedule 7PM-8AM

itmdadminAuthor

New Member

sry are you replied a wrong post...

hbac

Staff

Hi @itmdadmin,

I can't reproduce this issue in my lab. Please check FortiGate timezone and make sure it is correct. You can also collect debug flow to see if it really matches that policy. https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-First-steps-to-troubleshoot-connectivity/ta-p/192560

Regards,

itmdadminAuthor

New Member

Timezone is correct and I have worked with a foritgate engineer to troubleshoot it but still not solved and the case is under researching....

hbac

Staff

Hi @itmdadmin,

Does it also happen to regular firewall policy or just proxy policy?

Regards,

HarshChavda

Staff

Hello,

Can you verify source and destination in policy look up and Check to see there are no other firewall rules that supersede this rule. Remember that firewall rules are processed from top-to-bottom.

itmdadminAuthor

New Member

there is no other policy that will supersede those two rules

sw2090

SuperUser

what I see is that your one schedule's ending time is exactly the start time of the other and vice versa.

Probably this might result in sessions being created with wrong policy because both are active for that minute and then the first will match?

itmdadminAuthor

New Member

we had try setting the start time and end time with 1 min different but still the same result.

smaruvala

Staff

Hi,

- Do you see the issue all the time or only for a specific period of time every day?

- Is the "fast-policy-match" configuration enabled in the Firewall?

Regards,

Shiva

itmdadminAuthor

New Member

It happen all the time.

The "fast-policy-match" is not configurated, is it default enable ? shall i disable it ?

smaruvala

Staff

Hi,

- When was the Policy created? I can see the issue started from 8th of June. Was the Policy created on 7th of June?

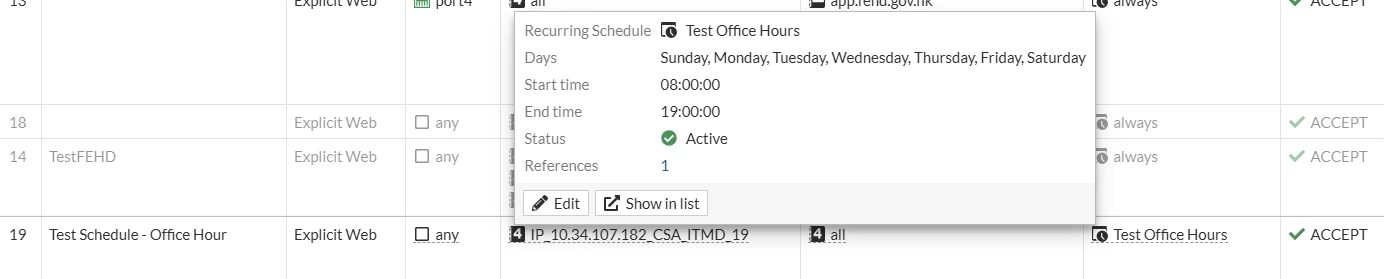

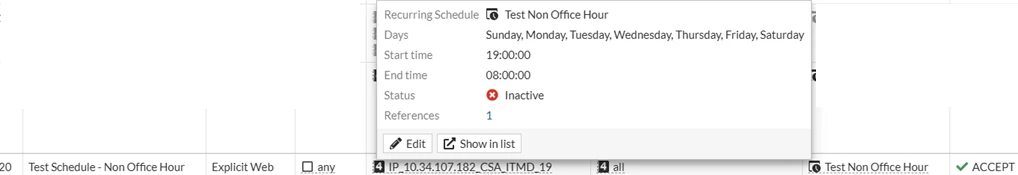

- In the screenshot we can see the schedule status is showing as inactive. But if you edit the policy and go into the policy then check the status of schedule, does it show inactive or active?

- I think I am able to reproduce the issue in the lab. I did not face the issue yesterday. But today I am seeing the issue. So I am assuming it was matching office-hours proxy policy first. Then during non-office hours it was matching the non-office policy and it has not changed back to office hours policy.

- I would suggest you to open a support case. Replication should be possible in version 7.4.4 but I think we need to give one day time. If you have already opened the case let me know the case number.

Regards,

Shiva

ede_pfau

SuperUser

I think it is related to session lifetime. When the correct schedule is matched, a session is allowed to be established. Then the schedule expires, but the session is not re-evaluated ('dirty').

~~Isn't there an option to force that lookup?~~

There is an option which governs the behavior of active sessions vs. schedule expiration:

config firewall policy

edit <nn>

set schedule-timeout enable

If enabled, sessions will be terminated on schedule expiry. If disabled, active sessions are allowed to continue while new sessions will be prevented. Disabled is the default.

I'd give it a try.

itmdadminAuthor

New Member

After some test, its seems that the scheduler is using the GMT+0 as the measure time instead of my local time GMT+8

SRaudi

Visitor III

Yes! Same here, today i updated from 7.4.2 to 7.4.4 and the schedules stopped working.

During research i found this post and moving the schedule 2 hours in the past is working here also.

Thanks for the hint!

Debbie_FTNT

Staff & Editor

Hey guys,

thanks for the info and detective work you've already done!

I had a look through the internal bug database, but didn't find anything for 7.4 and scheduler issues; I did find something for 7.2 that necessitated a fix for the scheduler, so perhaps something went slightly wrong? I've posted an update to the engineering team regarding this.

Cheers,

Debbie

SRaudi

Visitor III

Hi @Debbie_FTNT,

i noticed also that this problem is only when using schedules in the web proxy config. When using schedules for switching on/off WLAN SSID's the schedules are working normal.

Debbie_FTNT

Staff & Editor

Thanks for the clarification, SRaudi :)
