Traffic analysis with Fortinet or Fortianalyzer. Help.

Forum|Forum|3 years ago
June 13, 2023
5 replies
2274 views

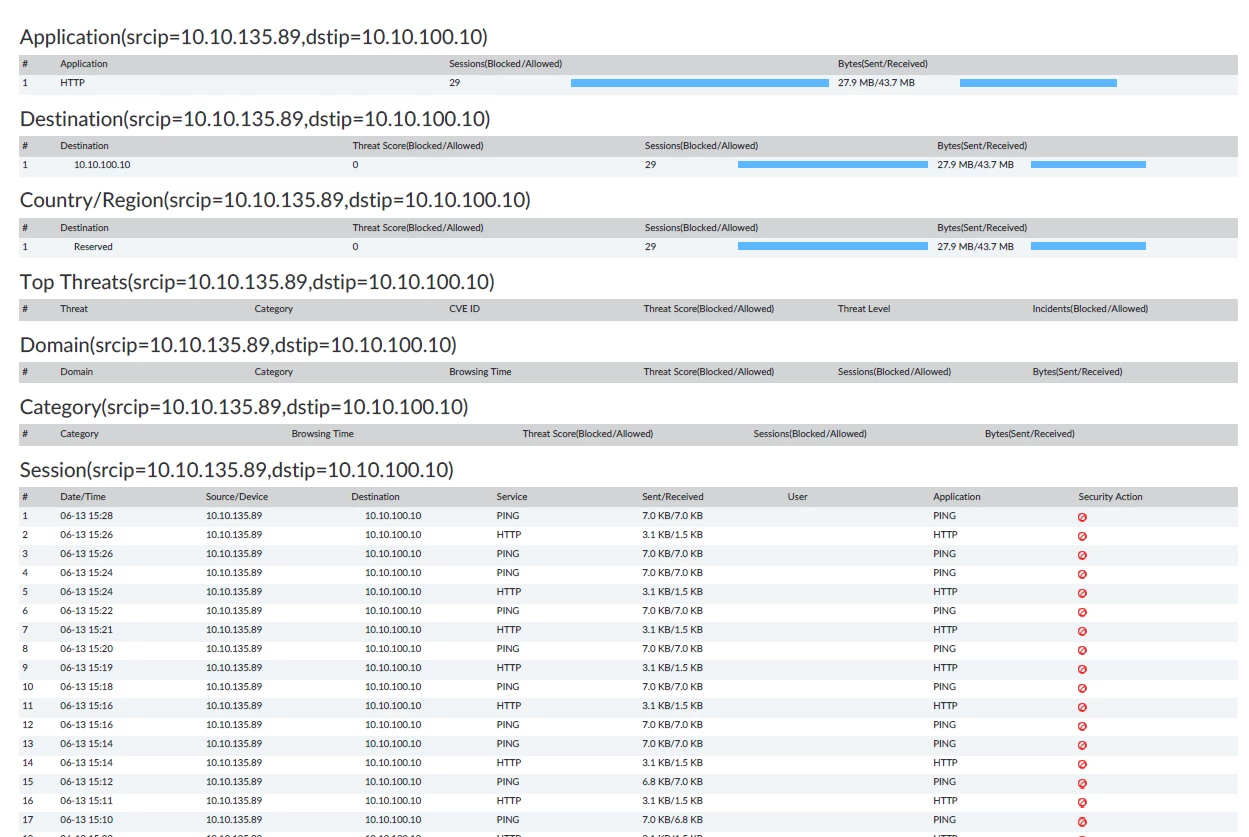

hello, i am trying to find the fault between a workstation and a DB server. So I generated the following report with my firewall but I'm not sure if the results indicate that everything is good or bad. I would also like to ask for help to be able to evaluate the traffic between a workstation and a DB server using fortianalyzer which I cannot handle.

akristof

Staff

Hello,

What are the log details for this traffic/session?

gaznaranAuthor

New Member

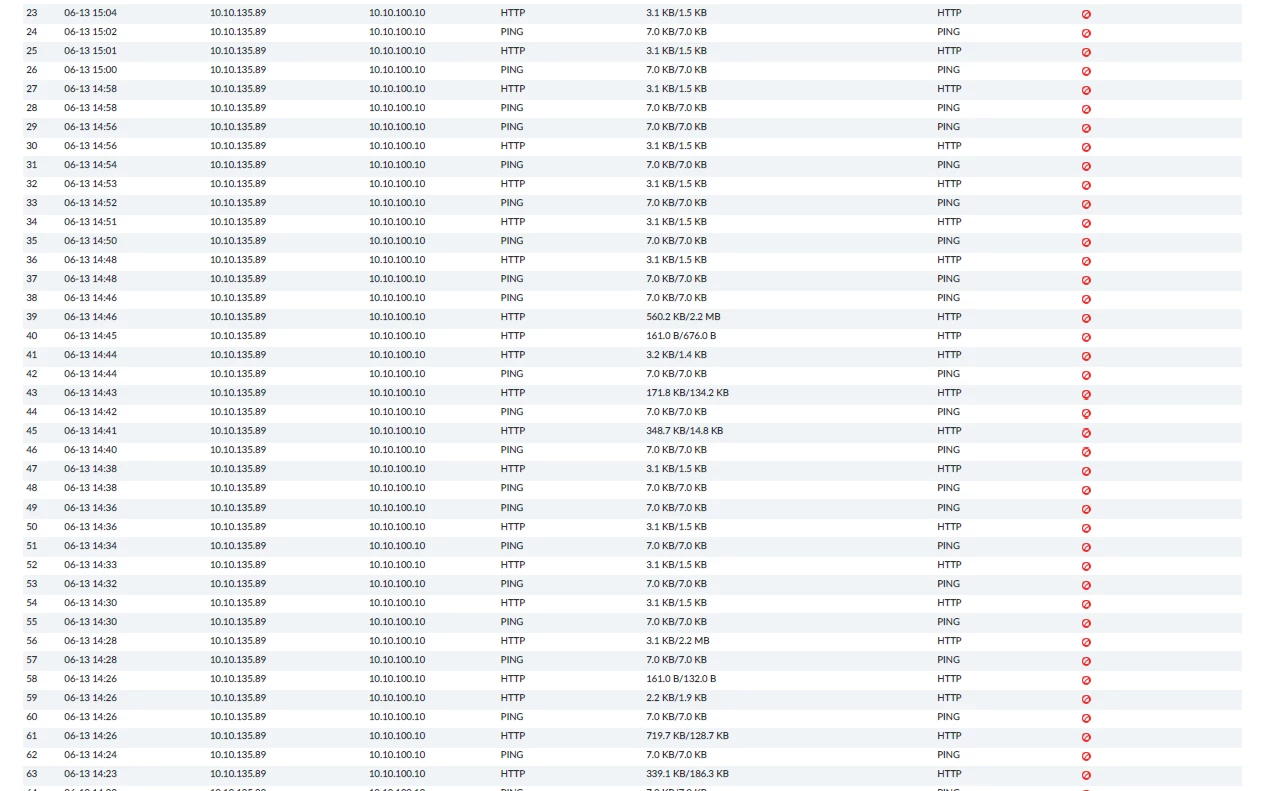

Hello Akristof, I attached them in the previous post, in image mode but I'll give it to you in text.

# Date/Time Source/Device Destination Service Sent/Received User Application Security Action
1 06-13 15:28 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
2 06-13 15:26 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
3 06-13 15:26 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
4 06-13 15:24 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
5 06-13 15:24 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
6 06-13 15:22 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
7 06-13 15:21 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
8 06-13 15:20 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
9 06-13 15:19 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
10 06-13 15:18 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
11 06-13 15:16 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
12 06-13 15:16 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
13 06-13 15:14 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
14 06-13 15:14 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
15 06-13 15:12 10.10.135.89 10.10.100.10 PING 6.8 KB/7.0 KB PING
16 06-13 15:11 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
17 06-13 15:10 10.10.135.89 10.10.100.10 PING 7.0 KB/6.8 KB PING
18 06-13 15:09 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
19 06-13 15:08 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
20 06-13 15:06 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
21 06-13 15:06 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
22 06-13 15:04 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
23 06-13 15:04 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
24 06-13 15:02 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
25 06-13 15:01 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
26 06-13 15:00 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
27 06-13 14:58 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
28 06-13 14:58 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
29 06-13 14:56 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
30 06-13 14:56 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
31 06-13 14:54 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
32 06-13 14:53 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
33 06-13 14:52 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
34 06-13 14:51 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
35 06-13 14:50 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
36 06-13 14:48 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
37 06-13 14:48 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
38 06-13 14:46 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
39 06-13 14:46 10.10.135.89 10.10.100.10 HTTP 560.2 KB/2.2 MB HTTP
40 06-13 14:45 10.10.135.89 10.10.100.10 HTTP 161.0 B/676.0 B HTTP
41 06-13 14:44 10.10.135.89 10.10.100.10 HTTP 3.2 KB/1.4 KB HTTP
42 06-13 14:44 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
43 06-13 14:43 10.10.135.89 10.10.100.10 HTTP 171.8 KB/134.2 KB HTTP
44 06-13 14:42 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
45 06-13 14:41 10.10.135.89 10.10.100.10 HTTP 348.7 KB/14.8 KB HTTP
46 06-13 14:40 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
47 06-13 14:38 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP
48 06-13 14:38 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
49 06-13 14:36 10.10.135.89 10.10.100.10 PING 7.0 KB/7.0 KB PING
50 06-13 14:36 10.10.135.89 10.10.100.10 HTTP 3.1 KB/1.5 KB HTTP

Do you know any guide to be able to get the traffic with the FORTIANALYZER?

akristof

Staff

Hello,

I've meant when you check details of single example log in FAZ, what it is saying?
