Kpax
New Member
December 21, 2015
Question

There is way to see vpn connection drop

  • December 21, 2015
  • 8 replies
  • 10801 views

Greetings,



I am using Fortigate 90D, with 5.2.3ver,  and created 30 users.

from some reason when I notice that when more than 10+ users connected the connection is became unstable which means users experience disconnection.

I checked Auto Connect, Always Up (Keep Alive) and Never Logout Inactive Users

but issue is still persist.



I mange to see via Logs & Report > Event Log > VPN or User (User xxx succeeded in logout, or login)

There is any way to see which connection is dropped and the reason for that?

Also users stay logged on with new IP, could be because of Never Logout Inactive Users







Thanks in advance,

Kpax



    8 replies

    emnoc
    New Member
    December 21, 2015

    10+ users  might be stressful on a FGT90D. Just how much traffic on the internet link and do you have  splittunnel?



    This might be helpful;



    http://socpuppet.blogspot.com/2015/12/sslvpn-diag-commands-fortios.html



    Kpax
    KpaxAuthor
    New Member
    December 21, 2015

    Hey Emnoc,



    According to Data Sheet, 200 users, and Throughput is 35Mbps

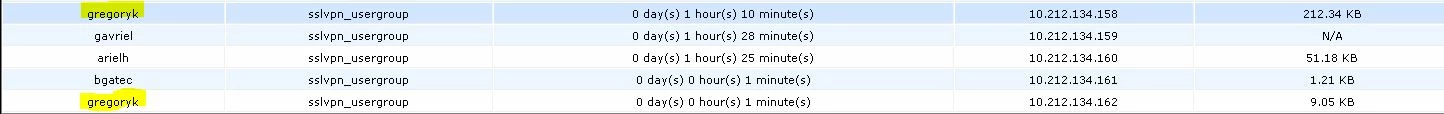

    Users usually connect via FortiClient for mobile (Android) and than work with ERP API application which transfer file(s)

    most of time few KB as u can see, and in some cases when they connect for few hours it is growing.

    yes. they are configure with split tunneling.

    If I will divided the users for small group of 5 each, do you think it will help?



    Thank in advance,

    Kpax







    Kpax
    KpaxAuthor
    New Member
    December 22, 2015

    ::update::



    When look deep on this matter, I notice that when users using VPN, they also using

    'other personal stuff' (e.g Radio-streaming, What's App, Skype,Waze etc) and probably this is my bottle neck 35Mbps, and why do we experiencing disconnections after 10 + concurrent session.

    I will remove the split-tunneling, because all their traffic is comes in, while they connected.

    I should create another policy to allow them Internet with different range without split-tunneling.

    Will update later on the outcome.



    thanks Emnoc for SSLVPN diag commands fortiOS very useful ;)



    Thanks in advance,

    Kpax





    JohnAgora
    New Member
    December 24, 2015

    You should check the name of your VPN. Long names allow less users: http://kb.fortinet.com/kb....do?externalID=FD31562

    Kpax
    KpaxAuthor
    New Member
    December 24, 2015

    JohnAgora wrote:

    You should check the name of your VPN. Long names allow less users: http://kb.fortinet.com/kb....do?externalID=FD31562

    didn't know that ;), thanks mate...I changed that
