Synchronization Problem in Fortigate Cluster

Forum|Forum|2 years ago
June 11, 2024
3 replies
2348 views

Dear all, good afternoon! All good? Recently we detected a behavior in our Fortigate cluster, where there are 3 boxes configured, and one of them presented a Not Synchronized error. When you see the HA screen, the synchronization error was due to "system.npu" .

We noticed that in box 01 (which is operational), there is no configuration that exists in box 03 (problematic), which is a configuration line called "config np-queues"

Could you tell me why this problem occurs?

FortiGate

jotaherre_94Author

New Member

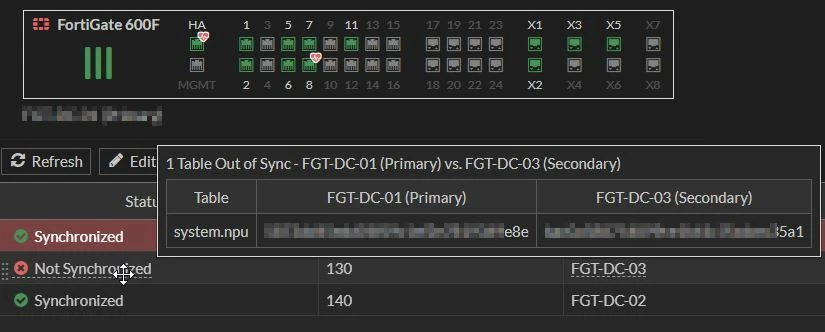

Evidence of the error on the HA screen

2024-06-11 13_47_22-FortiGate - FGT-DC-01.jpg

Hong_FTNT

Staff & Editor

Hi @jotaherre_94,

You can run the following command and compare the outputs:

show system npu

You can run "diagnose sys ha checksum recalculate" to see if it helps. If not, you can copy the config from the primary and paste it on the problematic FortiGate.

Regards,
