Switch disconnecting frequently

  • September 8, 2022
  • 2 replies
  • 7823 views

facing an issue with one of the access switch is going offline again and again.



Fortigate as a controller running a on 6.4.9

Core Switch 1048E running v 6.4.11

Access Switch 124F running v6.4.11



Ntp is synced. only on switch 124F is having an issue.

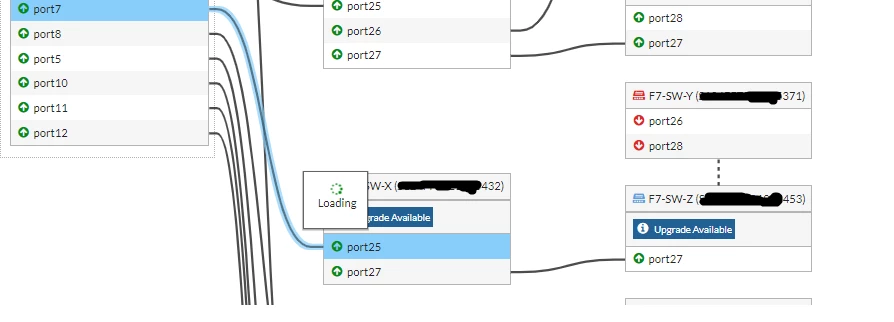

core switch connected as MCLAG Peers other access swi has below configuration



config switch trunk
edit "E48T0000000213-0"   ----->>>>> to another Core SW 1048E
set mode lacp-active
set auto-isl 1
set mclag-icl enable
set members "port45"
next
edit "G6H00000000"  ------->>>  TO Fortigate
set auto-isl 1
set fortilink 1
set mclag enable
set members "port48"
next
edit "4FF00000009417-0"  -------------->>>> Access Sw 124F connected
set mode lacp-active
set auto-isl 1
set mclag enable
set members "port2"
next

 **************************************

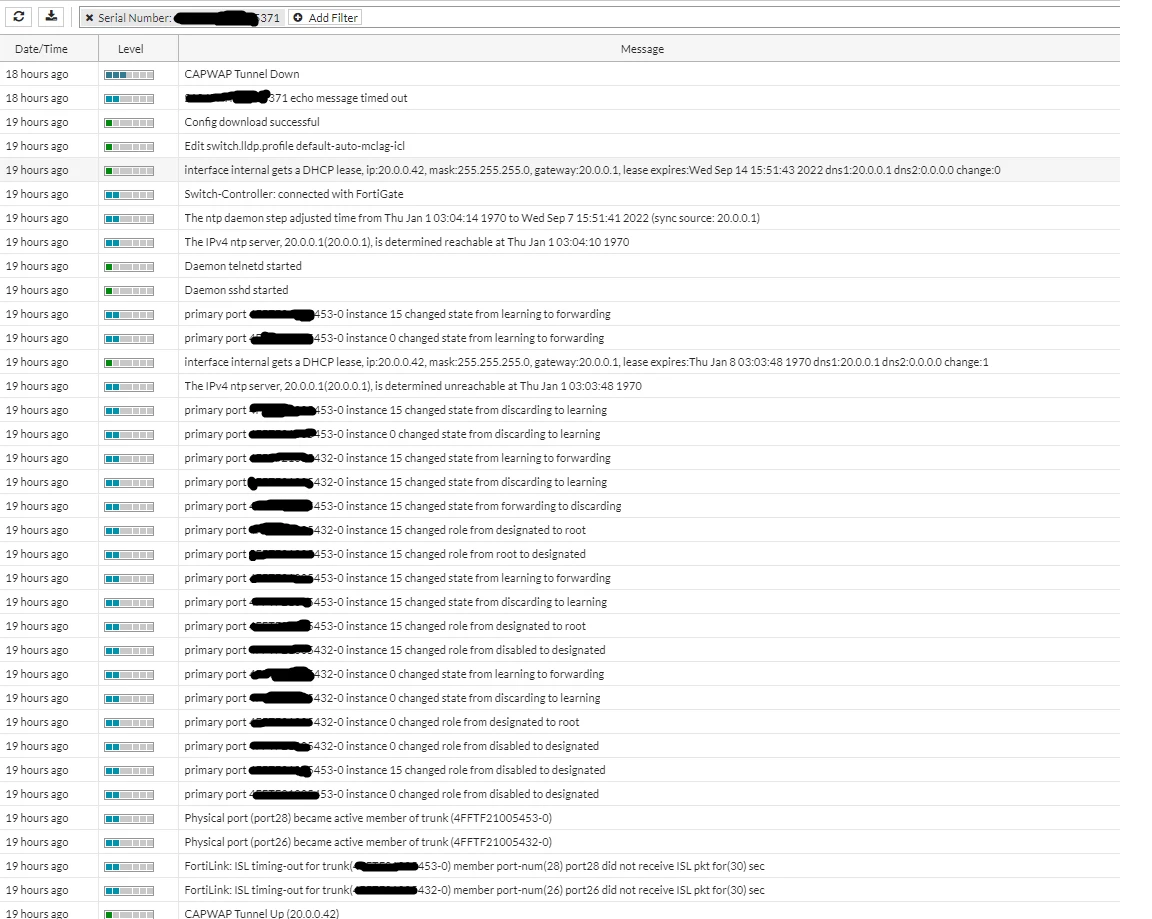

************* Troubled switch logs



connectivity



















Best answer by gfleming

6.4 is pretty stable. If all your switches are on same 6.4.11 then keep it that way IMO.

2 replies

gfleming
Staff
Staff
September 9, 2022

have you ruled out layer 1 (Cable, transceiver, interface errors, other connectivity issues?)



also am i reading this correctly? is the 124F connected to two different switches (two different trunk interfaces, *453-0 and *432-0)? what if you keep it connected to only one switch at a time?

ahamza89
ahamza89Author
New Member
September 9, 2022

Most of the Switches are connected in same way.




in actual design 2 of 3 124Fs have direct connections to 1048 and . 3rd 124F will have two trunks with each of two 124Fs.





gfleming
Staff
Staff
September 9, 2022

OK so the 124F that is disconnecting frequently is *371?



It is normally connected via two trunks to *432 and *453?


So far correct?



If so, what happens if you only keep on of the trunks active to either *432 or *452.


Also, have you looked at the interface stats. Any errors or disconnects there?

ahamza89
ahamza89Author
New Member
September 10, 2022

What about OS , upgrade is required or the 6.4.11 is best. Fortigate on 6.4.9.

gfleming
Staff
gflemingAnswer
Staff
September 10, 2022

6.4 is pretty stable. If all your switches are on same 6.4.11 then keep it that way IMO.
