Static route between 2 fortigates does not work correctly.

Forum|Forum|1 year ago
May 4, 2025
16 replies
2726 views

Hi,

If I summarize correctly, we have 2 sites A and B.

On site A, we have the fortigate which is a NAT router and the ISP's internet connection is connected to the fortigate.
On site A, we have the fortigate which is a NAT router and the ISP's Internet connection is connected to the fortigate's WAN port.
On site B, we have a 2nd Fortigate, and have connected port 1 of Fortigate1 to the WAN1 of the second Fortigate.
On the Lan of the second Fortigate, we've allocated the CCTV cameras, and we'd like to view them from our site A.

Fortigate1 LAN IP address: 172.20.100.1/24

Fortigate 2 LAN IP address: 192.168.1.1/24

Fortigate1 WAN IP address: 10.1.10.1

Fortigate2 WAN IP address: 10.1.10.2

Toshi_Esumi

SuperUser

FortiGate2's WAN IP should be inside of 172.100.0/24 then it's GW should be .1.

Toshi

Toshi_Esumi

SuperUser

Also, you need to/must have a site-to-site IPsec vpn or something else to reach LAN side of Site B from LAN side of Site A. Then proper static routes are needed on both sides through the tunnel. You haven't showed them yet.

Toshi

Atul_S

Staff & Editor

Hi Yacer,

Its best if you could share the static routes configured for your setup, along with the correct NAT mapping on both FGT and the correct security policy defined.

Thanks,

dingjerry_FTNT

Staff

Hi @Yac ,

1) "On site B, we have a 2nd Fortigate, and have connected port 1 of Fortigate1 to the WAN1 of the second Fortigate."

How did you connect FGT1 port1 to the FGT2 WAN1? MPLS? Via a switch or router in the middle?

2) What is the IP assigned to the FGT1 port1? There is no such info.

So based on your description, the network diagram seems like below:

ISP --> WAN (10.1.10.1) <--> FGT1 <--> Port1 ...... WAN1 (10.1.10.2)<-> FGT2 <-> LAN (192.168.1.1/24) <-> CCTV cameras

I don't know where I can put this info in this diagram: Fortigate1 LAN IP address: 172.20.100.1/24

YacAuthor

New Member

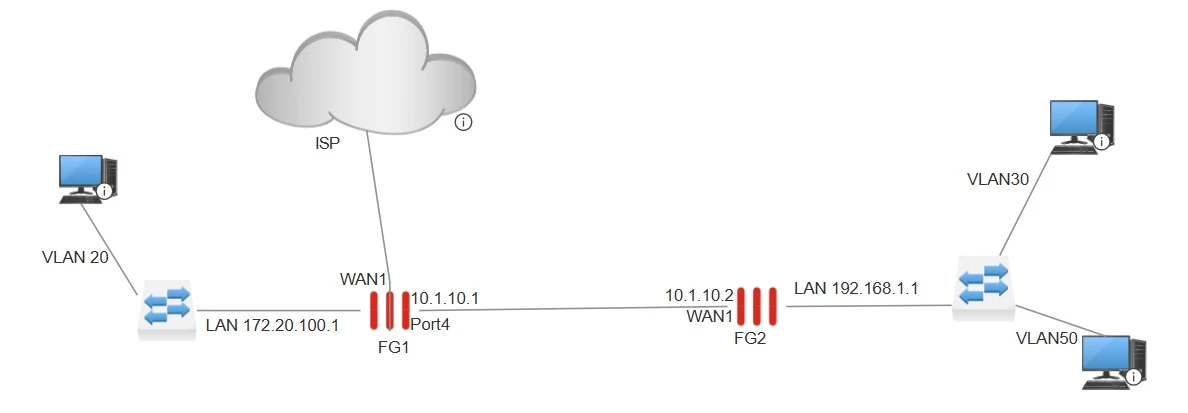

DIAGRAM FORTIGATE.jpg

Here's the diagram to summarize

dingjerry_FTNT

Staff

Thank you, and this is much better and it proves that this statement is incorrect:

Fortigate1 WAN IP address: 10.1.10.1

It is port4 interface with the IP address 10.1.10.1

I assume that the CCTV cameras have the IPs from the 192.168.1.0/24 subnet, correct?

Do they allow source IP from IPs other than the 192.168.1.0/24 subnet?

1) On FGT1, create a static route for the 192.168.1.0/24 subnet with interface port4 and default gateway 10.1.10.2;

2) On FGT2, create a static route for the 172.20.100.0/24 subnet with interface wan1 and default gateway 10.1.10.1;

3) Create appropriate firewall policies on FGT1 and FGT2 respectively. If CCTV cameras do not like source IP other than 192.168.1.0/24 subnet, you may enable NAT in the inbound firewall policy on FGT2.
