Static destination NAT problem

  • October 6, 2021
  • 1 reply
  • 3967 views

HI people,  im trying to implement a destination nat policy without success.

Im using VIP config and a policy allowing incoming traffic but the traffic is always blocked with thread 131072 message.

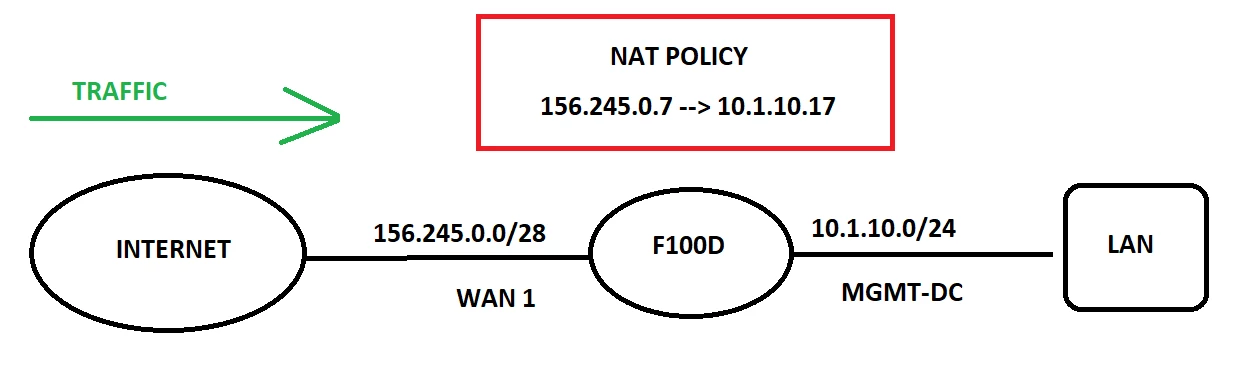

DIAGRAM:

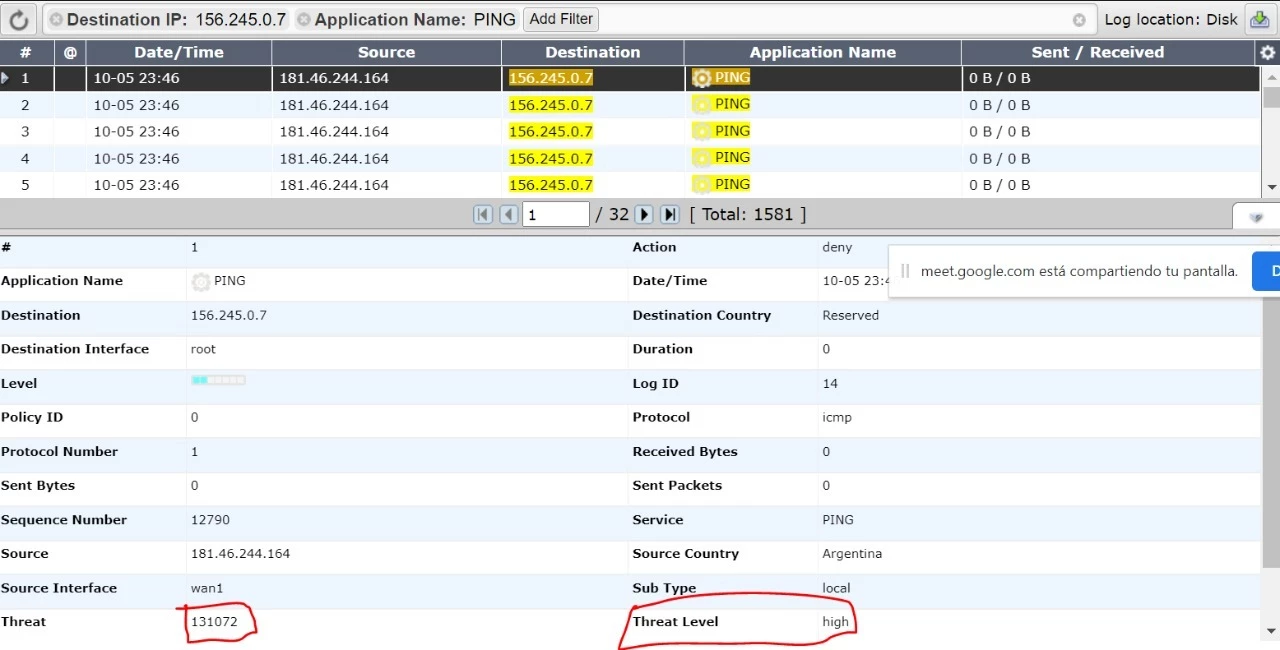

MESSAGE LOG:



policy config:

config firewall policy edit 6 set uuid ee869f6e-1763-51ec-2c06-3af0cdd4d970 set srcintf "any" set dstintf "any" set srcaddr "all" set dstaddr "NAT-IPERF-PUBLIC" "NAT-IPERF-PRIVATE" set action accept set schedule "always" set service "ALL" set logtraffic all set capture-packet enable next



vip config:



config firewall vip edit "NAT-IPERF-1" set uuid 86f995e6-17e9-51ec-e2cf-6bb4e9b41359 set comment "156.245.0.7 --> 10.1.10.17" set extip 156.245.0.7 set extintf "any" set mappedip "10.1.10.17" next end



    1 reply

    ac1
    ac1
    Explorer III
    October 7, 2021

    Hi, the destination address must be "NAT-IPERF-1":



    policy config:
    config firewall policy
    edit 6
    set uuid ee869f6e-1763-51ec-2c06-3af0cdd4d970
    set srcintf "any"
    set dstintf "any"
    set srcaddr "all"
    set dstaddr "NAT-IPERF-1"
    set action accept
    set schedule "always"
    set service "ALL"
    set logtraffic all
    set capture-packet enable
    next



    emnoc
    emnoc
    New Member
    October 7, 2021

    Agreed "NAT-IPERF-1" also if you looked at the log you would have seen you did not match any policy, hence policy id 0





    "diag debug flow" is your friend



    Ken Felix



    hfarias
    hfariasAuthor
    New Member
    November 4, 2021

    Thanks to all! Yes,  adding the nat policy to the ipv4 security policy solved the issue!



    Thanks Very much!
