Question

SSL VPN - Web mode disabled, but Forticlient connects in web mode

  • April 13, 2022
  • 6 replies
  • 17183 views

Hi Team,

We would like to use SSL VPN in tunnel mode only. We have disabled the web mode on portal, but some users using Forticlient are connected in ssl-web mode. After numerous session resets clients finally connect in tunnel mode. Any ideas and help finding the reason is appreciated.

6 replies

akristof
Staff
akristof
Staff
April 13, 2022

Hello,

Thank you for your question. Can you share some screenshots how Forticlient is connected in Webmode? Or how are you checking this exactly?

    dimitark
    dimitarkAuthor
    New Member
    April 13, 2022

    After login there's an error on the Forticlient:Forticlient.png

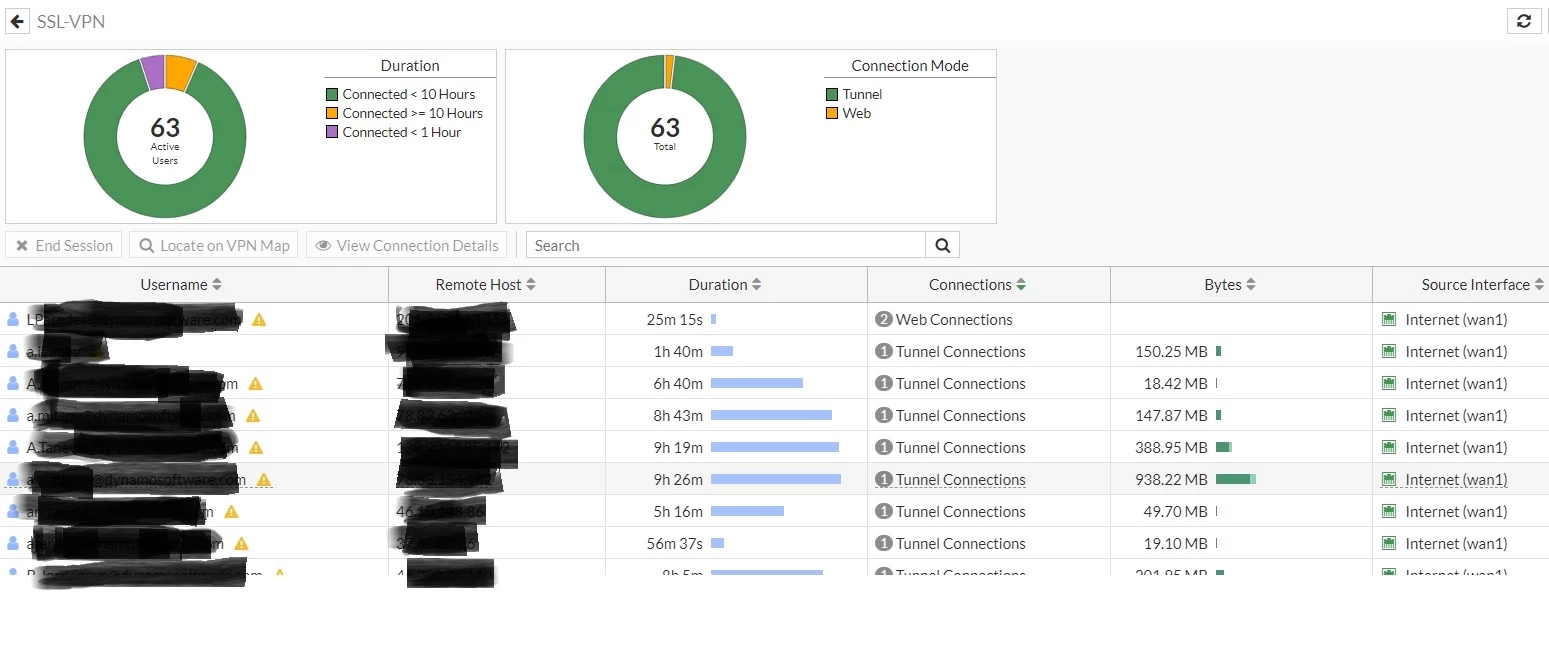

    Here is what we see on the Fortigate:

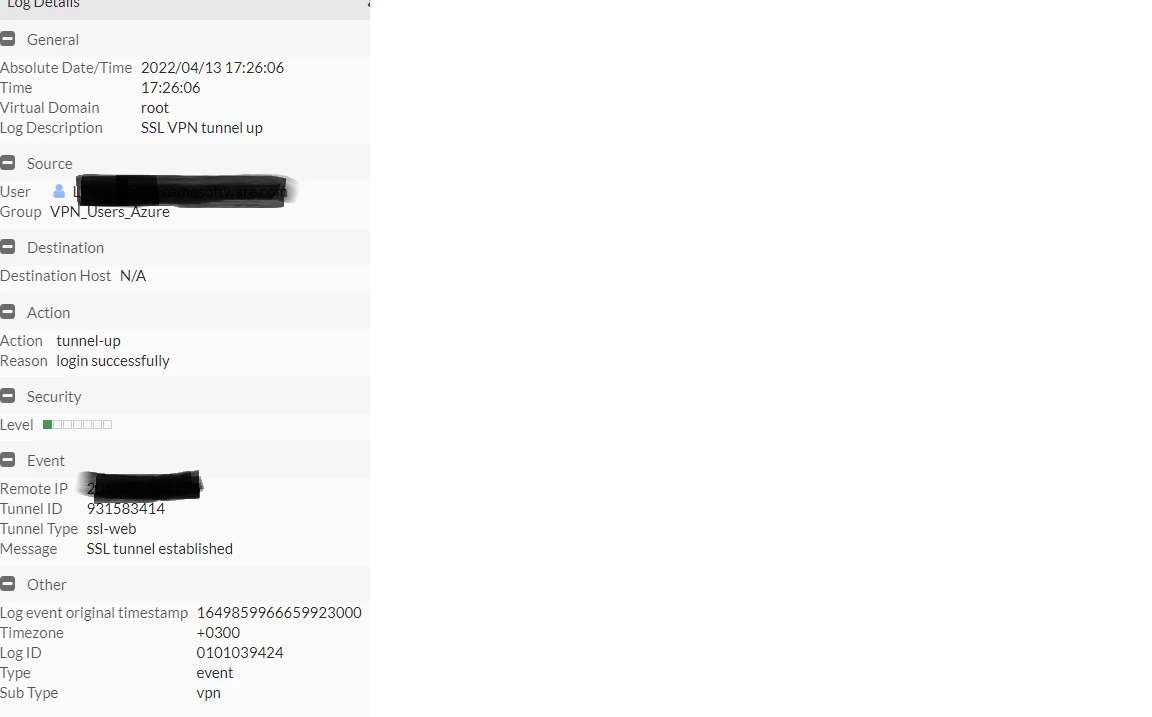

    And the event log:


    Yurisk
    SuperUser
    Yurisk
    SuperUser
    April 13, 2022

    Have you created the Authentication rule, so users in question will be mapped unequivocally to the specific portal where the Web mode is disabled ? By your description sounds like they fall through and finally reach default rule which has Web mode enabled.  It is also possible when you have the same users located in multiple AD groups with each group having different portals.



      tio3udes
      tio3udes
      Explorer III
      April 13, 2022

      Yes, you need to correctly map the user groups to the correct portal. And also, the Forticlient only uses tunnel-mode, so this is weird.



      A problem here is that, even though web-mode is disabled, if you try to access the vpn portal address through browser, tha page is still presented, although no one will be able to authenticate.

        dimitark
        dimitarkAuthor
        New Member
        April 14, 2022

        The users are authenticated and mapped to one portal. We use Azure as Identity Provider  if that matters. This particular problem happens only to limited number of users, who have the very  same group assignments as the rest, who never experience it and are able to connect normally.

        Hoid
        Hoid
        New Member
        June 23, 2022

        Did you ever find the root cause for this?  I'm seeing the same thing in my environment and am mystified as to why this is happening.

        jklee
        jklee
        New Member
        August 22, 2022

        I am also seeing this. Using FortiClient 7.0.6.0290 to Fortigate 7.0.6Build0366. Just one user is failing to connect and FG logs show it's trying to connect via web mode.

        BB1
        BB1
        New Member
        June 19, 2023

        Hi, does anyone found solution of this problem? In some cases users login correctly when change network to LTE...

        kkhushdeep
        Staff
        kkhushdeep
        Staff
        July 30, 2024

        Hello Team,



        After hiding the SSL VPN login page (on v 7.4.1 and below) or disabling it globally (v7.4.2 and above), it is expected to see every failed authentication for SSL VPN flagged with 'tunnel Type ssl-web'. The log does not mean an authentication attempt is being pushed through the SSL VPN login page.



        Every authentication failure on the FortiGate will be categorized as web for the tunnel type even if the attempt came from a FortiClient.

        This is due to FortiClient identifying itself to be accessing the tunnel mode after the authentication attempt and as a result, FortiGate cannot detect tunnel mode versus web mode on authentication failure



        Please check the link below for more information:

        https://community.fortinet.com/t5/FortiGate/Technical-Tip-SSL-VPN-authentication-failure-logs-are-still/ta-p/328096



        Thanks

        Khushdeep
