[SSL-VPN] Upgrade from FortiClient 7.0.5 to 7.0.6: SSL stuck at 40%

  • November 3, 2022
  • 1 reply
  • 13802 views

So we started updating the free FortiClient for Windows 10 Enterprise from release 7.0.5 to 7.0.7. Afterwards while connecting with SSL to the FortiGate, the client hangs at 40%. We downgraded to 7.0.6 and still the clients hang at 40%. Finally we downgraded to 7.0.5 and SSL VPN works again. To summarize:

FortiClient version <= 7.0.5: SSL connection works

FortiClient version >= 7.0.6: SSL clients hangs at 40%



Debugging with:

diagnose debug application sslvpn -1

diagnose debug enable



2022-11-03 15:02:10 [82:root:1037]Destroy sconn 0x425d4600, connSize=20. (root) 2022-11-03 15:02:10 [82:root:1038]allocSSLConn:247 sconn 0x425d4600 (0:root) 2022-11-03 15:02:10 [82:root:1038]SSL state:before/accept initialization (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 read client hello A (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 write server hello A (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 write certificate A (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 write key exchange A (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 write server done A (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 flush data (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 read client certificate A (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 read client key exchange A:system lib(x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 read client key exchange A:system lib(x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 read client key exchange A (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 read certificate verify A (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 read finished A (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 write session ticket A (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 write change cipher spec A (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 write finished A (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSLv3 flush data (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL state:SSL negotiation finished successfully (x.x.x.x) 2022-11-03 15:02:10 [82:root:1038]SSL established: TLSv1.2 ECDHE-RSA-AES256-GCM-SHA384 2022-11-03 15:02:10 [82:root:1038]req: /remote/info 2022-11-03 15:02:10 [82:root:1038]def: (nil) /remote/info 2022-11-03 15:02:10 [82:root:1038]req: /remote/login 2022-11-03 15:02:10 [82:root:1038]rmt_authutil.c:418 no session id in auth info 2022-11-03 15:02:10 [82:root:1038]rmt_authutil.c:701 invalid cache, ret=4103 2022-11-03 15:02:11 [82:root:1038]main.c,epollFdHandler,551, sconn=0x425d4600[52,-1,-1,-1,-1], fd=52, event=25. 2022-11-03 15:02:11 [82:root:1038]main.c:608 s: 0x425d4600 event: 0x19 2022-11-03 15:02:11 [82:root:1038]Destroy sconn 0x425d4600, connSize=20. (root)





So, what goes wrong?

1 reply

shams_sk
Visitor III
November 4, 2022

I'm also experience same issue, Can someone help with this.

Debbie_FTNT
Staff & Editor
Staff & Editor
November 7, 2022

In my experience, FortiClient VPN tends to hang at 40% if there is a certificate issue - meaning the FortiGate presents a server certificate the FortiClient might not trust for some reason (such as self-signed):

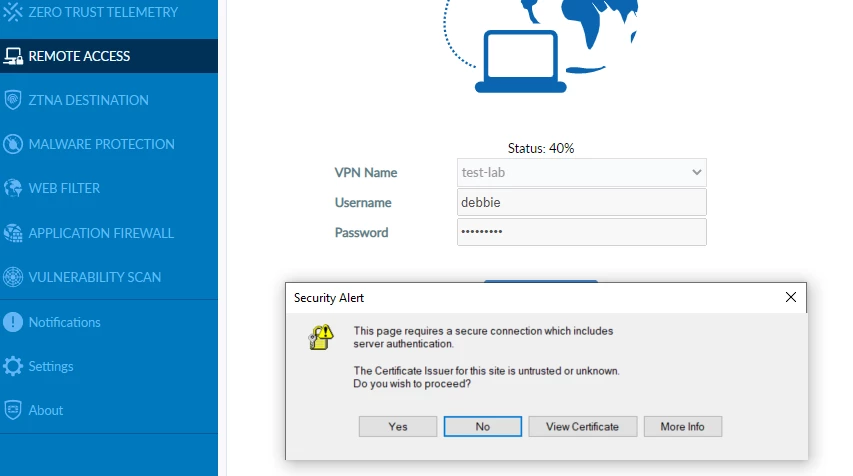

Can you check if a second FortiClient icons appears in the task bar?


The certificate warning might have only popped up in the background, and to proceed you would have to bring the window forward and click on 'Yes'.
