SSL VPN supported on FGR-60F

  • August 26, 2024
  • 1 reply
  • 2646 views

I'm looking to propose a FortiGate ruggedize 60F for an industrial environment, after reviewing the datasheet I notice that SSL VPN might not be supported.

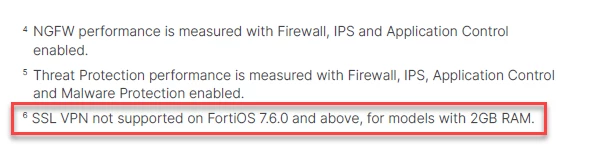

Extract from the Datasheet


There is nothing in the data sheet which indicates the memory of the device, for this deployment SSL VPN will be required. Can anyone provide some clarity on this?

Best answer by ametkola

Hello ,



You can use the command below to check the memory :

diagnose hardware sysinfo conserve

Further information regarding the features no longer supported for the devices with 2 GB RAM please check the Fortinet documentation >> https://docs.fortinet.com/document/fortigate/7.6.0/fortios-release-notes/877104/ssl-vpn-removed-from-2gb-ram-models-for-tunnel-and-web-mode

Regards,



1 reply

ametkola
Staff
ametkolaAnswer
Staff
August 26, 2024

Hello ,



You can use the command below to check the memory :

diagnose hardware sysinfo conserve

Further information regarding the features no longer supported for the devices with 2 GB RAM please check the Fortinet documentation >> https://docs.fortinet.com/document/fortigate/7.6.0/fortios-release-notes/877104/ssl-vpn-removed-from-2gb-ram-models-for-tunnel-and-web-mode

Regards,



    Toshi_Esumi
    SuperUser
    Toshi_Esumi
    SuperUser
    August 26, 2024

    alternatively you can use below command to see the total memory size with other hardware info.

    FortiGate-60F # get hardware status
    Model name: FortiGate-60F
    ASIC version: SOC4
    CPU: ARMv8
    Number of CPUs: 8
    RAM: 1917 MB
    EMMC: 3662 MB(MLC) /dev/mmcblk0
    Hard disk: not available
    USB Flash: not available
    Network Card chipset: FortiASIC NP6XLITE Adapter (rev.)

    Toshi
