SSL-VPN routing

Question

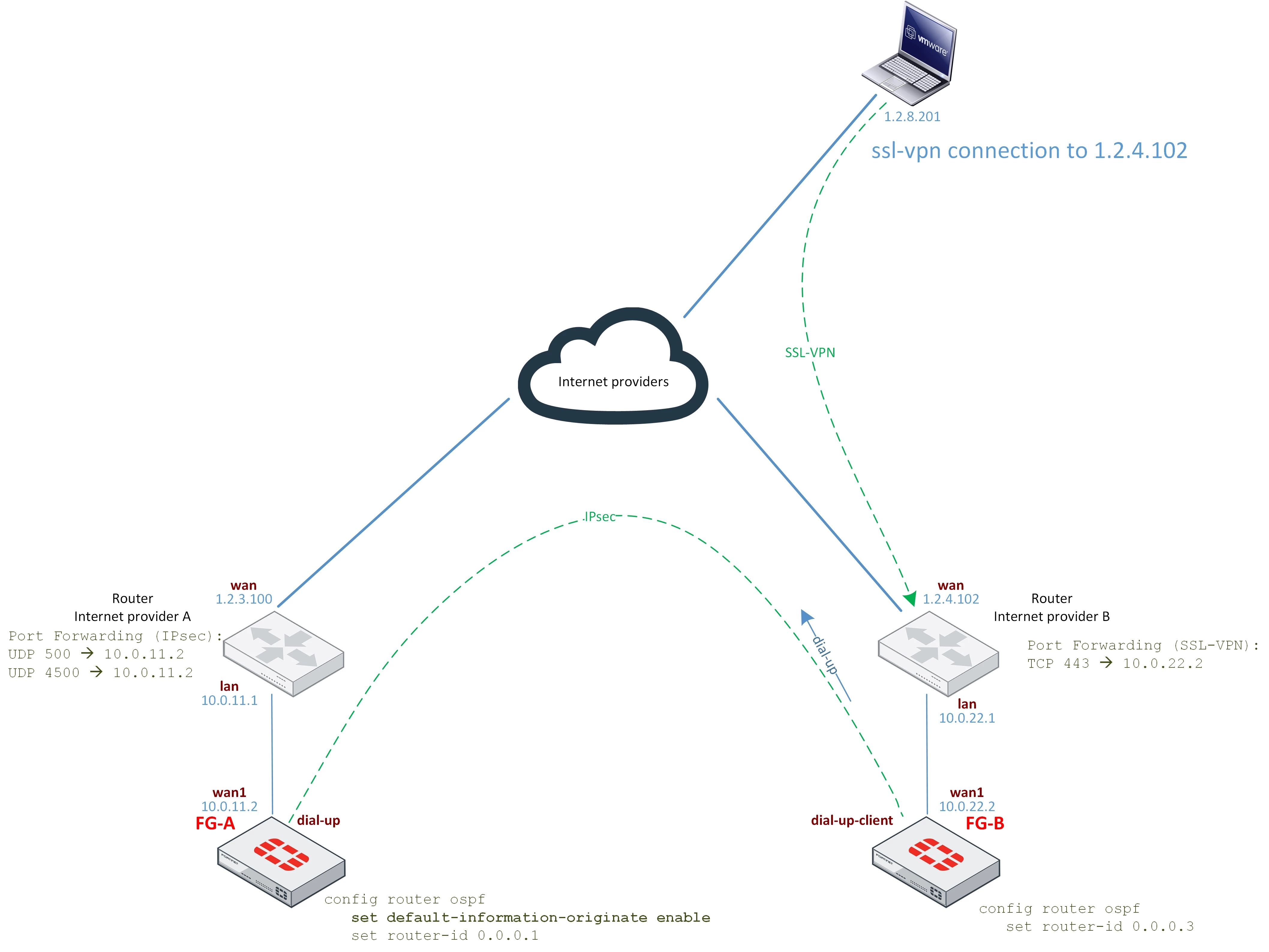

Hello,I'm running into one issue concerning a laptop connecting with SSL VPN to a FortiGate.The setup makes use of OSPF routing. The default routing for all traffic goes thru FG-A.FortiGate FG-B is the entry point for SSL VPN.Since all traffic has a default route to FG-A, the laptop cannot make a connection to FG-B, because that traffic is routed to FG-A via the IPsec tunnel, and not back to where it came from, the laptop.I want all traffic go thru FG-A since that one has security profiles.  When I make one static route for the laptop of FG-B, the result is good for a working SSL VPN for that laptop:FG-B # diagnose sniffer packet any 'host 1.2.8.201'interfaces=[any]filters=[host 1.2.8.201]8.234645 1.2.8.201.26381 -> 10.0.22.2.443: syn 29535066518.234830 10.0.22.2.443 -> 1.2.8.201.26381: syn 1439558356 ack 29535066528.272586 1.2.8.201.26381 -> 10.0.22.2.443: ack 14395583578.320566 1.2.8.201.26381 -> 10.0.22.2.443: fin 2953506652 ack 14395583578.320937 10.0.22.2.443 -> 1.2.8.201.26381: fin 1439558357 ack 29535066538.339497 1.2.8.201.26381 -> 10.0.22.2.443: ack 14395583588.389289 1.2.8.201.26382 -> 10.0.22.2.443: syn 3605904456 Without the static route for the laptop, the result is:FG-B # diagnose sniffer packet any 'host 1.2.8.201'interfaces=[any]filters=[host 1.2.8.201]16.222300 1.2.8.201.27042 -> 10.0.22.2.443: syn 374158717517.214982 1.2.8.201.27042 -> 10.0.22.2.443: syn 374158717519.233017 1.2.8.201.27042 -> 10.0.22.2.443: syn 3741587175 Since the laptop's IP address is constantly changing, due to providers, and most of the devices have unknown IP adresses, it's difficult to make static routes for those devices. So my question is, how to make it possible, that devices from the internet can succesfully connect to the FortiGate FG2 listening to SSL-VPN connections?

Toshi_Esumi · Answer

With the current network set-up on the FG-B, I don't think this is possible.

My wild idea is to have another connection between the router (maybe lan2 interface) and FG-B (wan2?) then assign a different interconnect subnet. Then set the port forwarding at the router to lan2.

At the FG-B, I would try a lower-priority(high number) static default route to wan2 while wan1 has a higher static default route. With this set up all internet bound traffic from FG-B goes out wan1 while it still accepts and returns traffic to SSL VPNs.

This is just my theory and never tested myself. There maybe some fallouts in this theory.

But this wocky setup is unnecessary if you simply move SSL VPN to FG-A, which is the common way.

Toshi
