SSL/TLS Full Inspection - OCSP checking

What exactly is your setup  & reasoning for this question ?

Would that not be a required of the browser to  initate  the the  cert validation or revocation  method? I mean a browser could perform this via OCSP or CRL, but not both at the same time ( in general speaking ) but that would all pertain if the sever has a embed  OCSP response in the certificate to begin with ( can't conduct a OCSP validation if none exist  ).

In fact all modern browsers execute some means of OCSP validation, but not all CAs respond to OCSP ( e.g your inhouse CA chain might never use OCSP  for these Domain Certs ).

So to answer your question, I believe a fortigate does NOT change the  cert validation method presented by the client during SSL inspection but mainly passes any certification revocation means that's present from the browser. You can inspect the site certificate by  exporting  the web-browers lock and  details certficate fields and validate if a OCSP  is listed and the CRL distro points.

Hi -

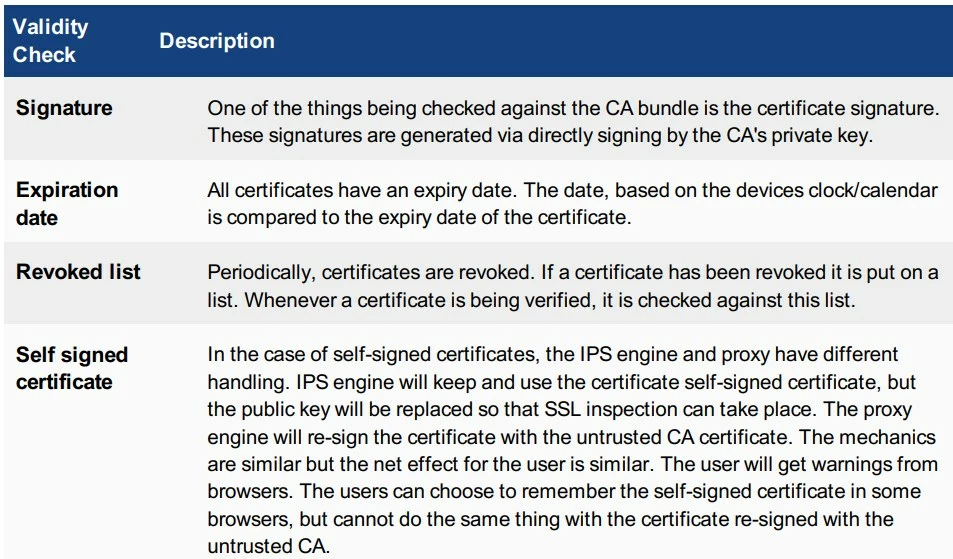

Thanks for the response.  Your understanding of how OSCP works is correct - in a non FULL SSL/TLS inspection mode in that the web browser is responsible for the OSCP query.  In the case for full SSL/TLS inpsection (ie.  man in the middle) the Fortigate is actually the client responsible for doing all the security checks that is normally performed by the web browser ex.

is the presented server certificate valid and trusted?

  - issued by a trusted CA;

 - has the certificate been revoked?  crl / OSCP checking

Does the web server use sufficient cipher/encryption strength?

- this is something the FG does not currently check, nor allow configuration of minimum values

Tom

Hello:

I ran tcpdump on the Internet facing interface of the switch - it sees all inbound and outbound Internet traffic.  No OSCP requests whatsoever.

Fortinet ticket number:  1481242

My SE says "This appears to be a bug.  But they are still researching the issue."

Tom

From Fortinet support:

"Currently, FGT does not support this feature. There is no option to check certificate validity against an OCSP server when using DPI(deep packet inspection)."

I've asked for this to be a feature request.

Tom

So this brings me back to the web-browser support ( OCSP/CRL ) and cert validation does the  fortigate pass this request thru transparentlt ", my experience == different browsers &  support certication to  various degree IE vrs Firefox vrs Chrome vrs Safari ,etc....). So I guess the answer is No based on what support said.

I find it strange and a big disappointment to see even with SSL certificate inspection ( not full ) that fortigate doesn't really validate the certificate  vocation lookup. It would be nice to at least try a query and have an option to allow or not-allow if the query does complete.

So any revoked cert could be pander off and a un-awared browser establishs a SSL/TLS connection to  the site. Or am I missing something?

This like  having a  strong door lock and everybody has a copy of the key ;)

Ken

emnoc -

I agree.  I have multiple issues with the way the FG presents these options.  For example (and this is directly from support)

1) If "ssl-ca-list" option is not enabled in SSL Inspection profile, only certificate expiration date is checked.

- so, by default, any certificate - privately issued or CA issued, with a valid expiration date, will be blindly accepted.  - So, what exactly is this check doing to improve security????

I hate to say it, but the Palo Alto kicks but in this area.  Granted its ridiculously expensive as compared to the FG but.....I think the FG presents a false sense of security.

- so, by default, any certificate - privately issued or CA issued, with a valid expiration date, will be blindly accepted.  - So, what exactly is this check doing to improve security????

and this;

I hate to say it, but the Palo Alto kicks but in this area.  Granted its ridiculously expensive as compared to the FG but.....I think the FG presents a false sense of security.

All browser check the cert expiration date AFAIK ;)  So the added security ( FTNT FGT )  is will Questionable ??????????s

This remind of my parent going out buying a 120usd door lock dollar but placing the key under the flower planter outside of the door.

Hello Tom, I am not aware of any project that is handling OCSP implementation(with DPI) in future release. Please contact your SE for New Feature Request. Thanks and Regards, Fortinet TAC Engineer, Americas

This is no surprised, check  https://www.grc.com/revocation/implementations.htm and the convergence extension YMMV. But this problem is seen across the board and in  numerous  OS/device where CRLs revoke is not checked.

Ken
