SSL Deep Inspection - Google Chrome

  • November 27, 2023
  • 11 replies
  • 36294 views

Hi, is anyone else having a problem doing deep inspection using Google Chrome?



Google Chrome version:  119.0.6045.160 (Versão oficial) 64 bits



Fortigate 200F, 7.4.1.
config sys global
set admin-https-ssl-versions tlsv1-2 tlsv1-3

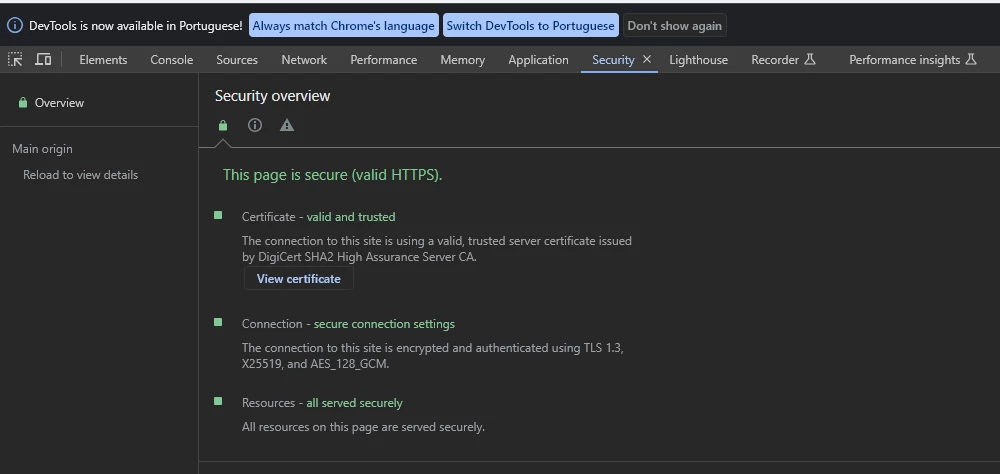

google same policy/ssl profile from prints below.

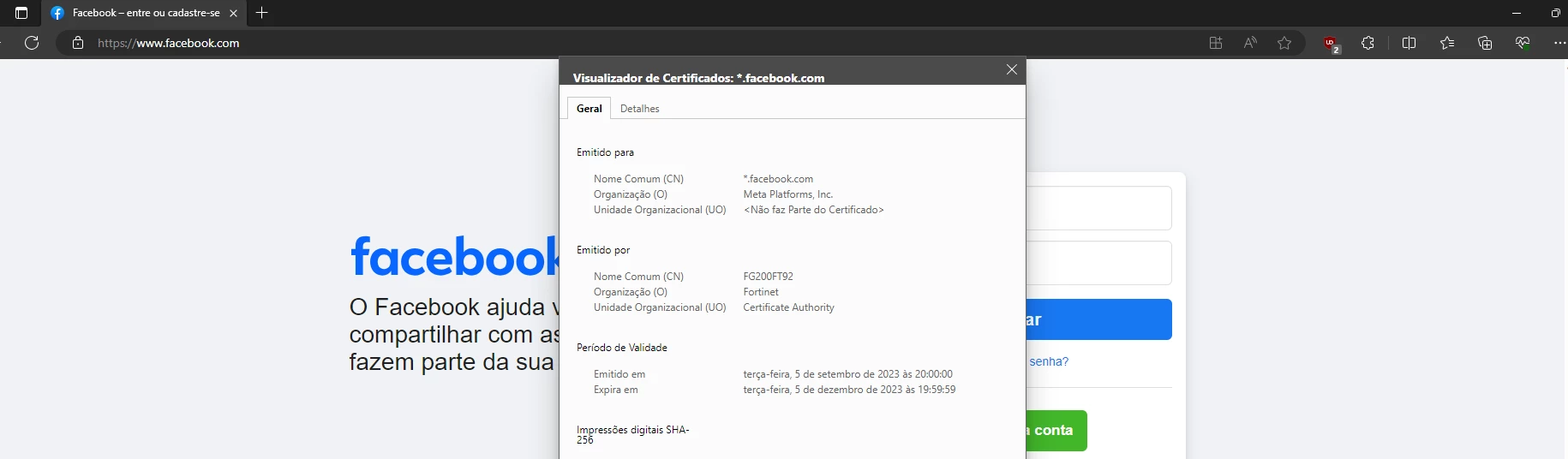

 same policy ID from above - EGDE

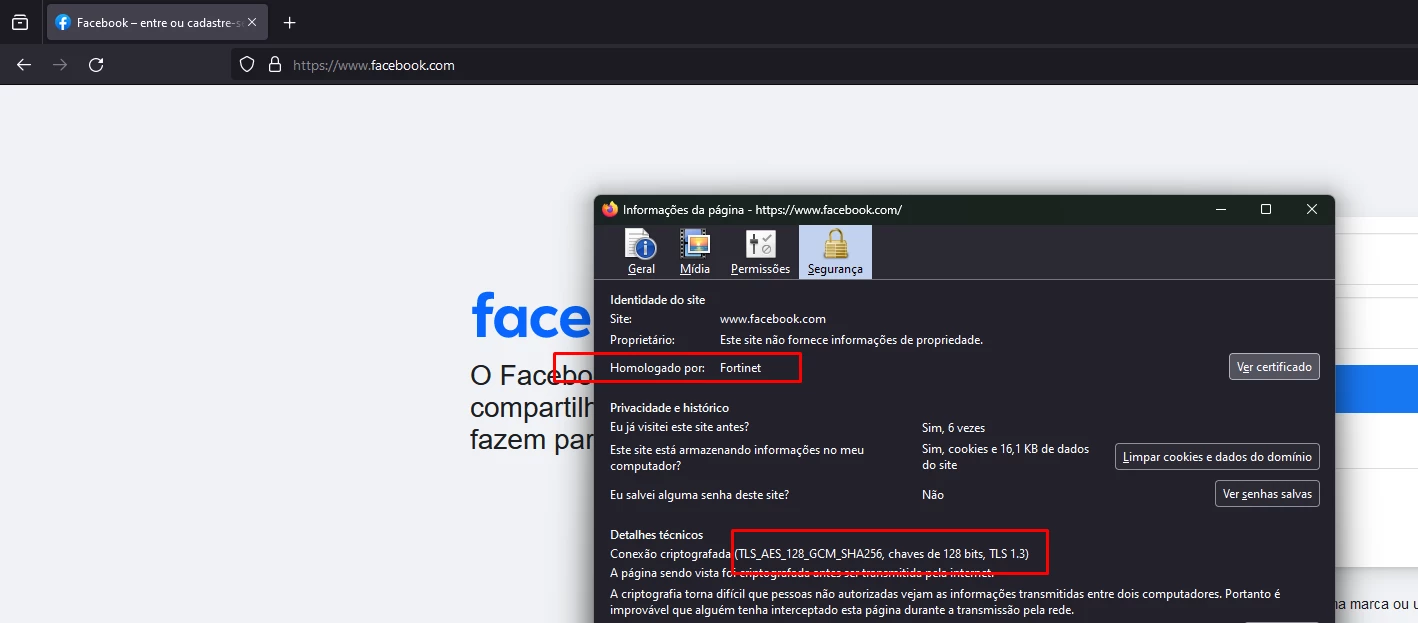

  same policy ID from abobe - firefox

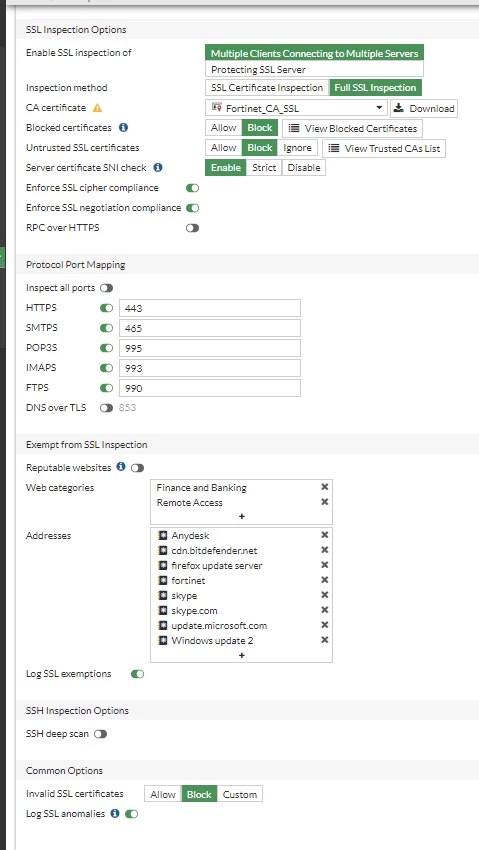

 SSL Profile:




 

 

Do you guys have some advices?
TY



 

Best answer by smaruvala

Hi,



- I suspect the issue is seen due to Kyber Support introduced by chrome for TLS1.3 version.

- Check the chrome flags the configuration of the same. You can use "chrome://flags/#enable-tls13-kyber" check the configuration in chrome.

- Try to disable the option and check if the issue gets fixed. If yes then we can confirm the issue matches to a reported issue for which fixes will be coming soon.



Regards,

Shiva

11 replies

smaruvala
Staff
smaruvala
Staff
November 28, 2023

Hi,



- The command "set admin-https-ssl-versions" is used for GUI access of the Firewall.

- I tried to check using the same chrome version. I didn't face any issue in which I saw the DigiCert CA certificate instead of the Fortigate certificate.

- Was the issue not seen when chrome version was older?

- Is the issue seen in every or multiple users behind the Firewall?

- I don't see the page you are accessing in the chrome. Is it the facebook URL as well?



Regards,

Shiva

    DarioP
    DarioP
    Visitor III
    November 28, 2023

    Hi, the same issue with 400F, 7.0.13. WebFilter doesn't work too. But on some stations with Google Chrome 119.0.6045.160/64 deep inspection and WebFilter work fine. Interesting...

    Regards

    DarioP



    smaruvala
    Staff
    smaruvalaAnswer
    Staff
    November 28, 2023

    Hi,



    - I suspect the issue is seen due to Kyber Support introduced by chrome for TLS1.3 version.

    - Check the chrome flags the configuration of the same. You can use "chrome://flags/#enable-tls13-kyber" check the configuration in chrome.

    - Try to disable the option and check if the issue gets fixed. If yes then we can confirm the issue matches to a reported issue for which fixes will be coming soon.



    Regards,

    Shiva

      PixoPuro
      PixoPuroAuthor
      New Member
      November 28, 2023

      Thank you, I was able to use deep inspection in Chrome with your tip.

      DarioP
      DarioP
      Visitor III
      November 28, 2023

      Hi again,

      It works for me. After disabling "TLS 1.3 hybridized Kyber support"  in Chrome everything looks fine.



      Regards,

      DarioP

        smaruvala
        Staff
        smaruvala
        Staff
        November 28, 2023

        Hi @DarioP ,



        Great, Then it would be matching the same issue. Current IPS Engine is not supporting this. So the fixes will be coming soon.



        Regards,

        Shiva

        - Have you found a solution? Then give your helper a "Kudos" and mark the solution.



          tuan2tech
          tuan2tech
          Explorer
          December 7, 2023

          Hi you

          I disabled Kyber in Chrome and it worked. But why does it only fail on a few clients?

          smaruvala
          Staff
          smaruvala
          Staff
          December 7, 2023

          Hi,



          I am assuming these updates in chrome is coming as staged update. Basically if we see 25519KyberDraft in the supported groups in the client hello packet then the Firewall will not support it. This will cause this issue. You may have to compare the working and non-working capture in the client and look for the supported groups extension header in the Client hello packet.



          Regards,

          Shiva

            tuan2tech
            tuan2tech
            Explorer
            April 22, 2024

            Hi you

            Does Fortinet have an update with this error? Recently I encountered this error with other browsers like Edge, Firefox and I had to disable Kyber

            minheplus
            minheplus
            New Member
            April 22, 2024

            Hardware 401F (Firmware 7.4.3), If web filter is turn on, Chrome cannot access website. Disable TLS 1.3 hybridized Kyber, problem is resolved. When Fortinet fix this issue?

            tuan2tech
            tuan2tech
            Explorer
            April 23, 2024

            I'm also having a hard time turning off Kyber for each computer. Our company has more than 100 pc

              PixoPuro
              PixoPuroAuthor
              New Member
              April 25, 2024

              stop using chatgpt

                gperezarsoft
                gperezarsoft
                Explorer
                May 15, 2024

                We're having the same issue.

                Only solution was to disable TLS1.3 kyber support on chromium based browsers or disable ssl-inspection (Which would be stupid since that's one of the security measures of the product).

                After inspecting the issue further we discovered that we were having fragmentation issues with this kind of tls handshake, check this out. https://community.fortinet.com/t5/Support-Forum/Fortigates-with-PPPoE-WAN-suddenly-need-TCP-MSS-1452-on-INSIDE/td-p/310961

                Seems that the only way to keep SSL INSPECTION and TLS 1.3 kyber support in browsers is to set the tcp-mss value to the correct size. Since we're using PPPoE ours is 1452, yours might be different. Once the tcp-mss is set, everything works... or does it?

                Which surprises me is that fortigate hasn't said anything about it...

                tuan2tech
                tuan2tech
                Explorer
                May 16, 2024

                Why doesn't fortinet have an update to fix this problem? I also encountered an error of not being able to load SD-WAN rules with firmware 7.4.3
