Sovled:FEC not enabled for IPSEC(Update:Not works for dialup mode)

  • November 2, 2023
  • 6 replies
  • 2374 views

I already followed the official document to set ipsec phase1 and firewall policy,the server side still can't enable.But on the client side,fec enabled and working.System is fortigate 7.4.1 and licensed.

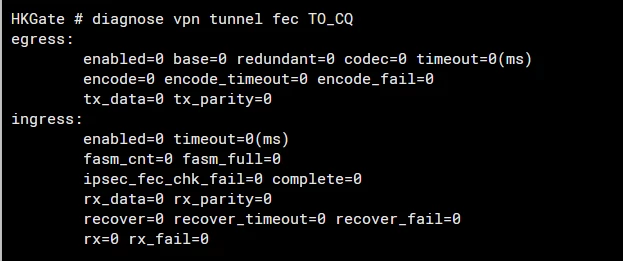

this is debug log:
3GBZykN2sRblDaS

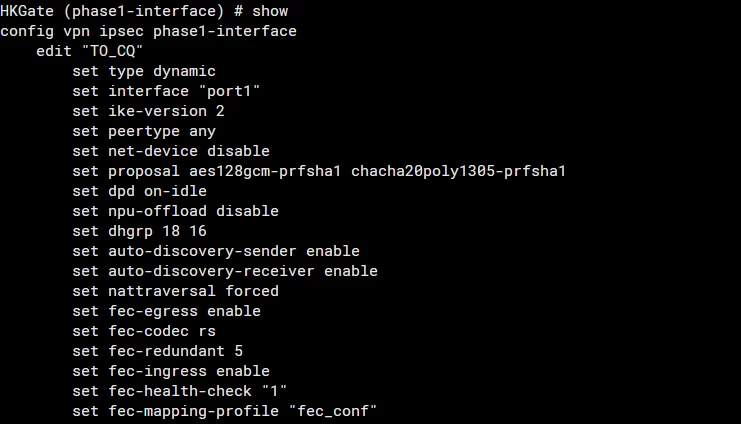

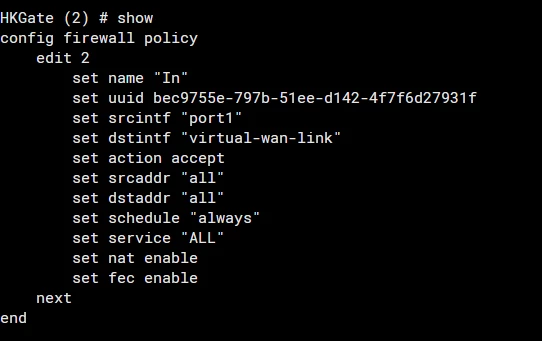

and this is my config:
En7vbS4sUFIWt3V




TSxPkduGpVIc96t




But on the other side.the client,FEC is enabled and working.

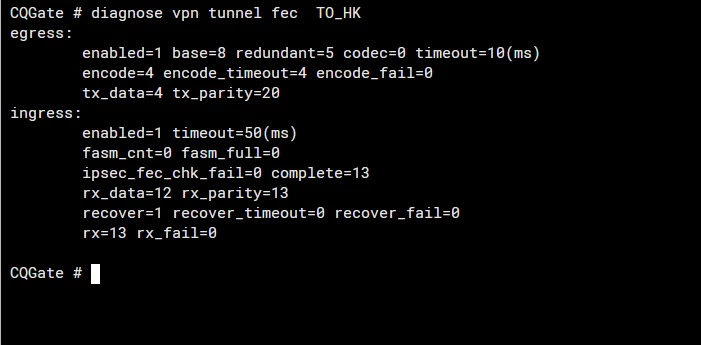

This is debug log:
BM9tpmfoDlH8UeX

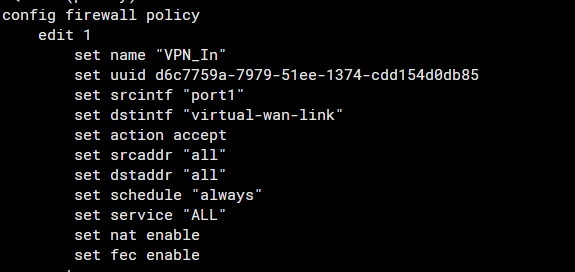

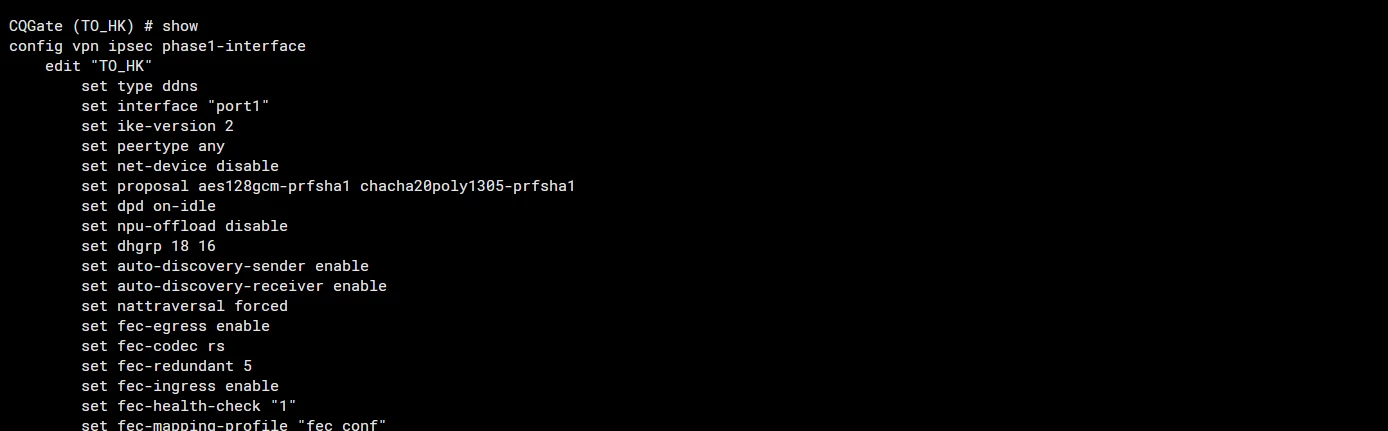

and this is my config:
tac4IEDNXmzP3Fb




Z2kM8frgjzTbtGV



Best answer by YuChow

Solved,dial up mode server will generate other one tunnel.Like name_0,name_1,etc.So need use "diagnose vpn tunnel fec name_0",not "diagnose vpn tunnel fec name" to check logs.

6 replies

hbac
Staff
hbac
Staff
November 2, 2023

Hi @YuChow,



Can you provide the output of the following commands:

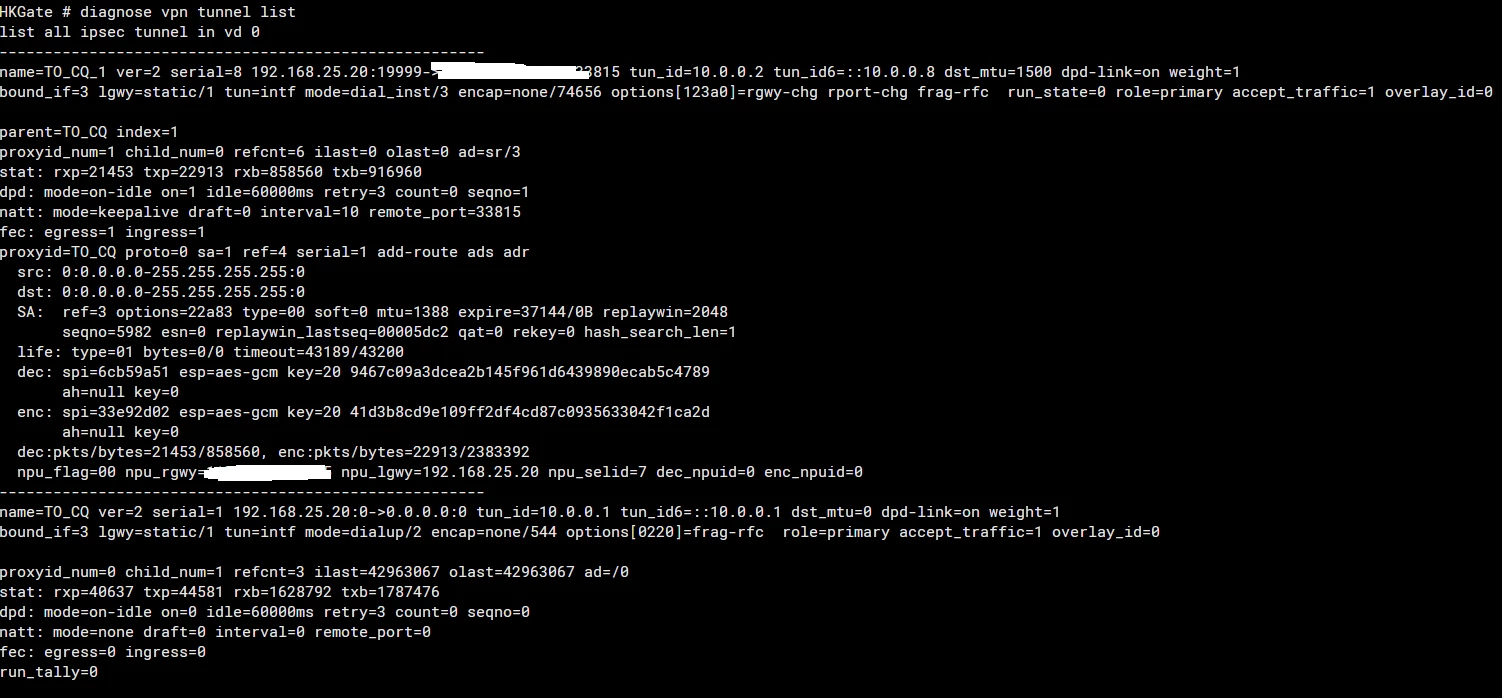

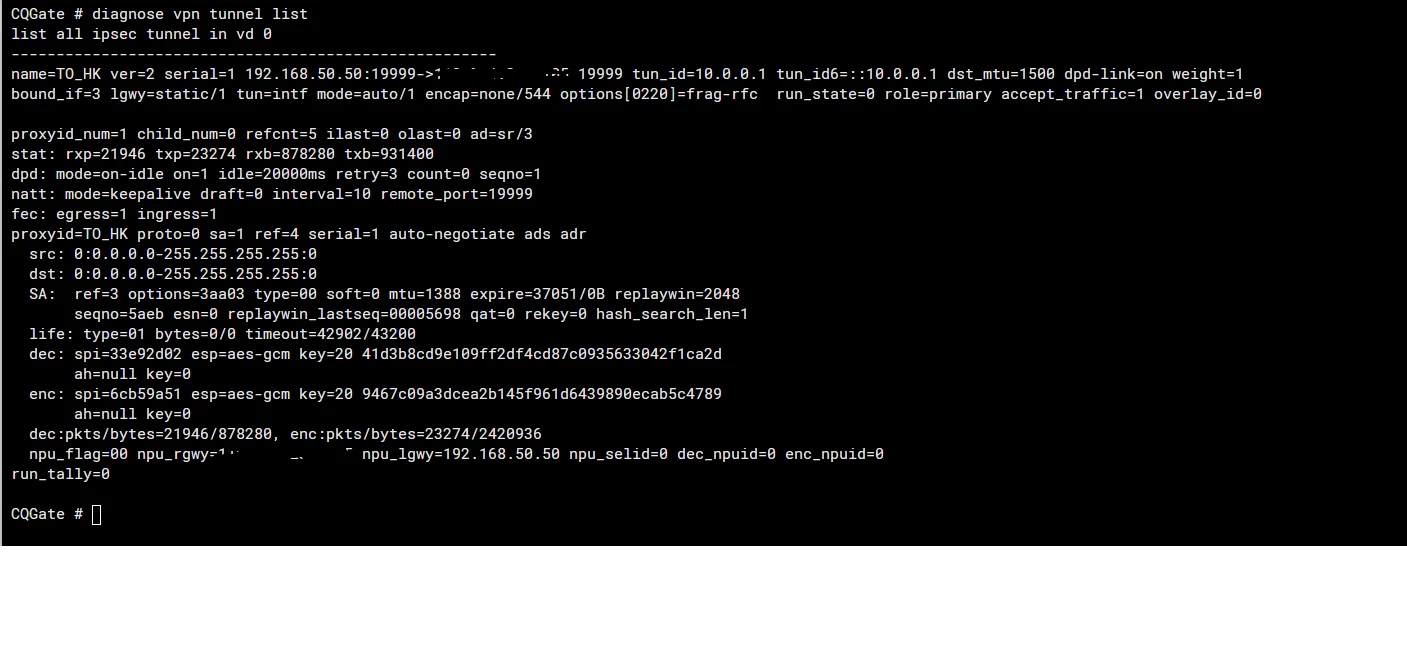

diagnose vpn tunnel list

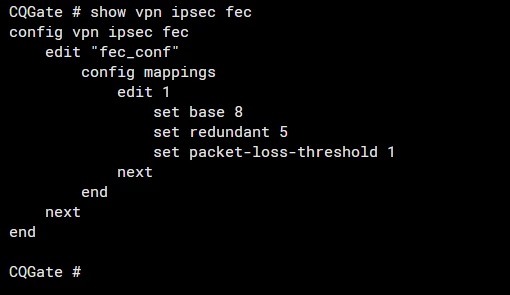

show vpn ipsec fec



Regards,

    YuChow
    YuChowAuthor
    New Member
    November 2, 2023

    @hbac













    YuChow
    YuChowAuthor
    New Member
    November 2, 2023

    and my net packet loss always about 10%.

    YuChow
    YuChowAuthor
    New Member
    November 3, 2023

    I have test if use p2p with out NAT in a local test.FEC works.The FEC not works when one side behind NAT?





    YuChow
    YuChowAuthor
    New Member
    November 3, 2023

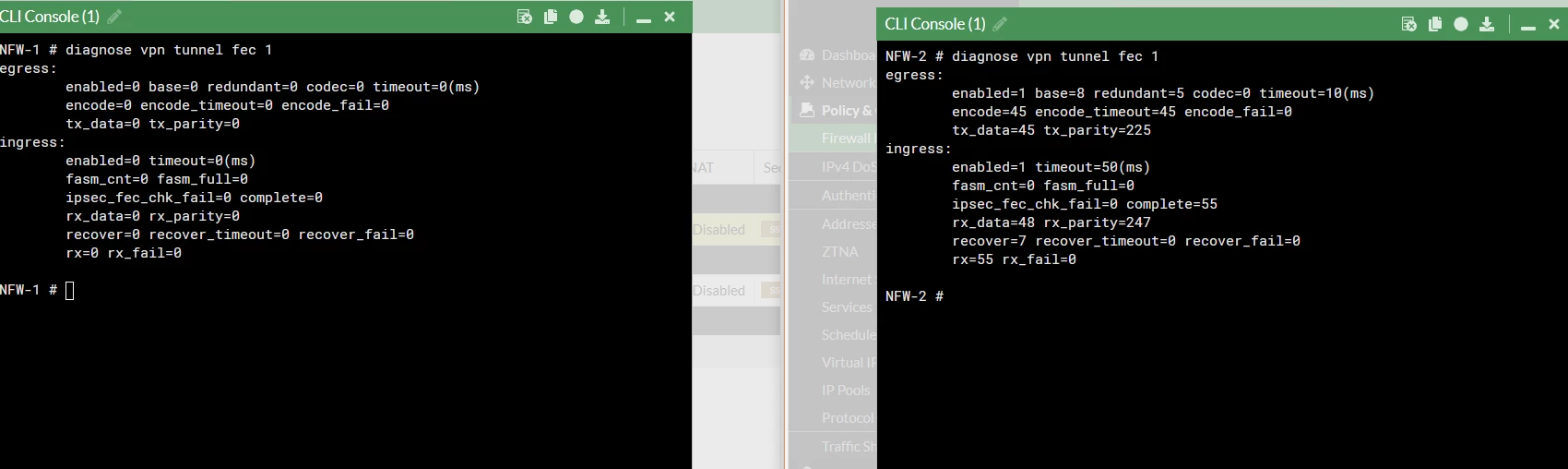

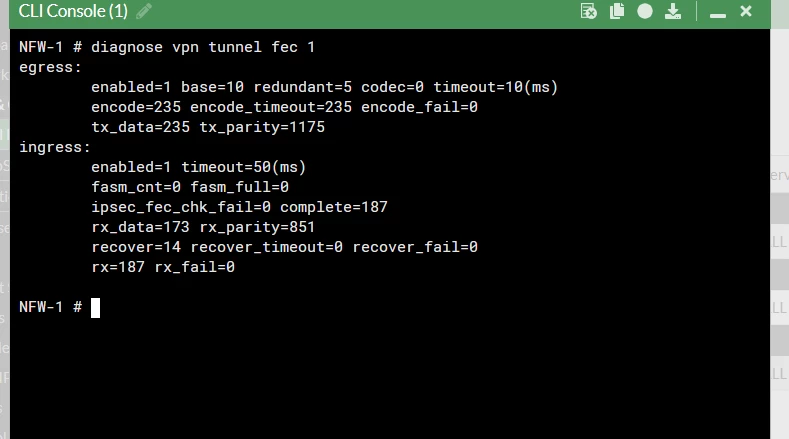

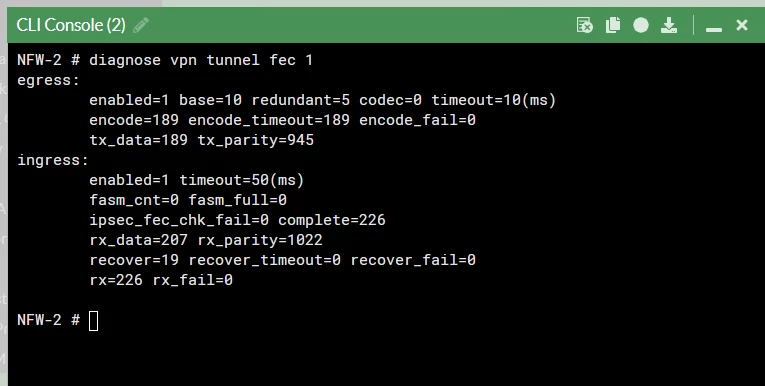

    Local test,using dialup mode.Server(NGF-1) side fec enabled=0,not works.




    YuChow
    YuChowAuthorAnswer
    New Member
    November 4, 2023

    Solved,dial up mode server will generate other one tunnel.Like name_0,name_1,etc.So need use "diagnose vpn tunnel fec name_0",not "diagnose vpn tunnel fec name" to check logs.
