SNMPv3 Not able to discover device in BMC application

  • December 14, 2025
  • 2 replies
  • 541 views

SNMPv3 Not able to discover device in BMC application.

I have enable on Interface SNMP, Username password created and SNMPv3 enabled .



SNMP walk is not able to get the output.

    2 replies

    AEK
    SuperUser
    AEK
    SuperUser
    December 14, 2025

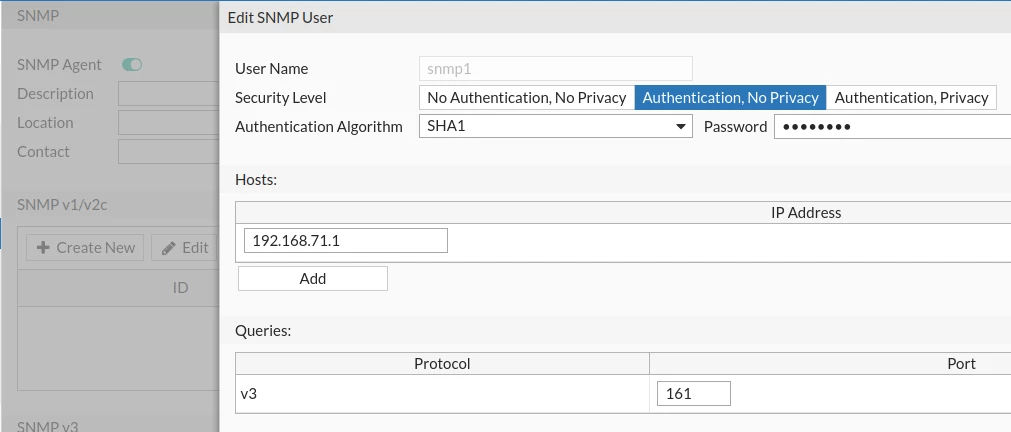

    Here is the config that works for me on FWB VM 7.4.10. Try the same and see if it helps.








    Then snmpwalk from 192.168.71.1 (the allowed host).



    $ snmpwalk -v3 -u snmp1 -l authNoPriv -a sha -A 'Passwd-123' 192.168.71.3
    iso.3.6.1.2.1.1.1.0 = ""
    iso.3.6.1.2.1.1.2.0 = OID: iso.3.6.1.4.1.12356.107.1.50006
    iso.3.6.1.2.1.1.3.0 = Timeticks: (107559) 0:17:55.59
    iso.3.6.1.2.1.1.4.0 = ""
    iso.3.6.1.2.1.1.5.0 = STRING: "FortiWeb"
    iso.3.6.1.2.1.1.6.0 = ""
    iso.3.6.1.2.1.1.7.0 = INTEGER: 0
    iso.3.6.1.2.1.1.9.1.1.1 = INTEGER: 1
    iso.3.6.1.2.1.1.9.1.2.1 = OID: ccitt.0.0
    ...

    Hope it helps.

    AEK
      CCIEKW-HOTMAIL
      CCIEKW-HOTMAILAuthor
      New Member
      December 14, 2025

      I am facing the issue that traffic is getting blocked from outside to inside.

      AEK
      SuperUser
      AEK
      SuperUser
      December 14, 2025

      Then this is another issue.

      Did you use a VIP to map External_IP:161 to Internal_IP:161 (UDP), and added a firewall rule to allow traffic from external to VIP?

      However know that SNMP is not intended to be published on the WAN. I don't think it is safe to do so, unless you allow only from specific source.

      AEK
      CCIEKW-HOTMAIL
      CCIEKW-HOTMAILAuthor
      New Member
      December 14, 2025

      Yes, i think some rules are missing from External to internal as i have some other devices on which it is working fine.
