Site-to-Site VPN with a peer over dynamically assigned name
Hi All,
There is an office that uses FortiGate as a router.
There is a site-to-site VPN tunnel between Azure and that office.
The office has a modem connected to the FortiGate router with 4G connection and when their primary connection is down the router fails over to the modem.
Because Site-to-Site VPN between resources in Azure and the on-prem network is vital for business apps when the FortiGate fails over to the 4G modem there should be also a VPN tunnel over that modem.

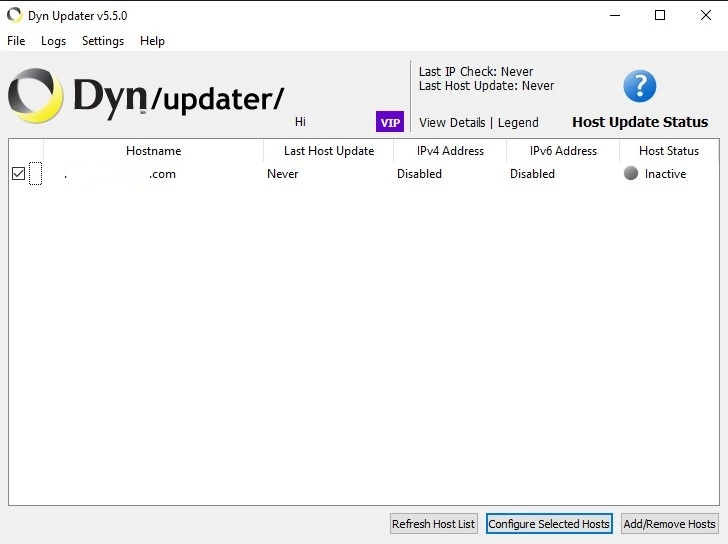

When the FortiGate fails over to 4G modem it is assigned a non-routable IP address 1.XXX.XXX.XXX and for this reason DynDNS service is used to associate 1.XXX.XXX.XXX with a DNS name.

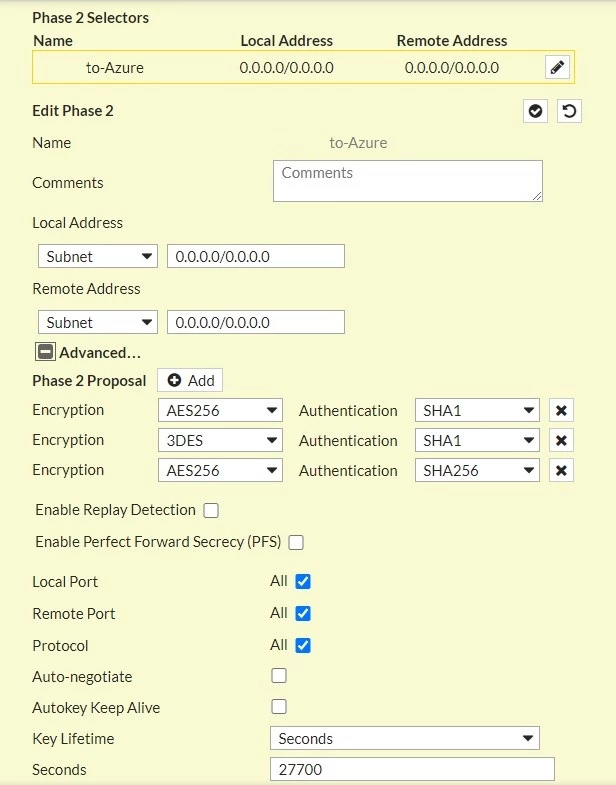

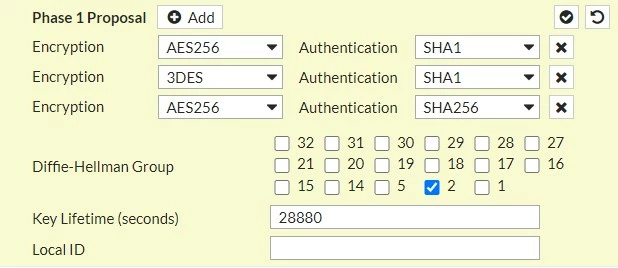

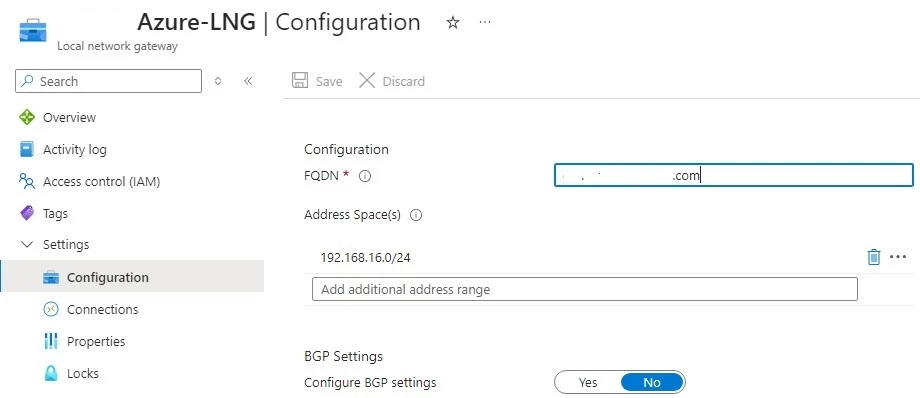

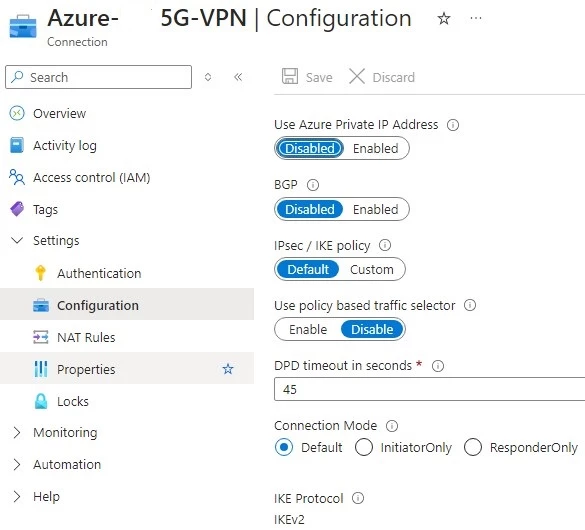

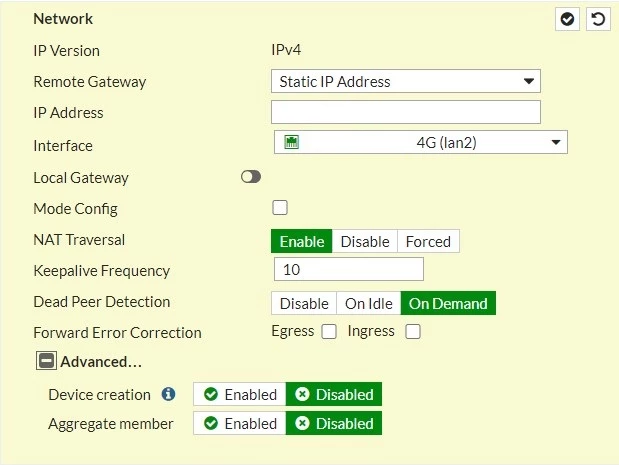

Below are the screenshot of Azure side and on-prem side VPN configuration.








Both Azure and FortiGate configuration for VPN over 4G were copied from working VPN configuration over primary WAN connection.
If someone has experience with Azure Site-to-Site VPN over 4G please advise if something is wrong in my configuration (1st screenshot).
Thanks in advance.
