Site-to-Site VPN to AWS is up, but only one way connection

2 replies
2118 views

I have established an S2S VPN tunnel from my FortiGate-100F to AWS VPC

I can ping from the EC2 to a local device but however, I cannot ping from a local device to my AWS EC2

I have already set up a static route and even tried the policy route but still no luck...

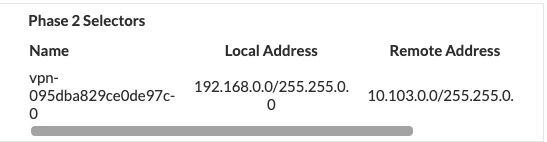

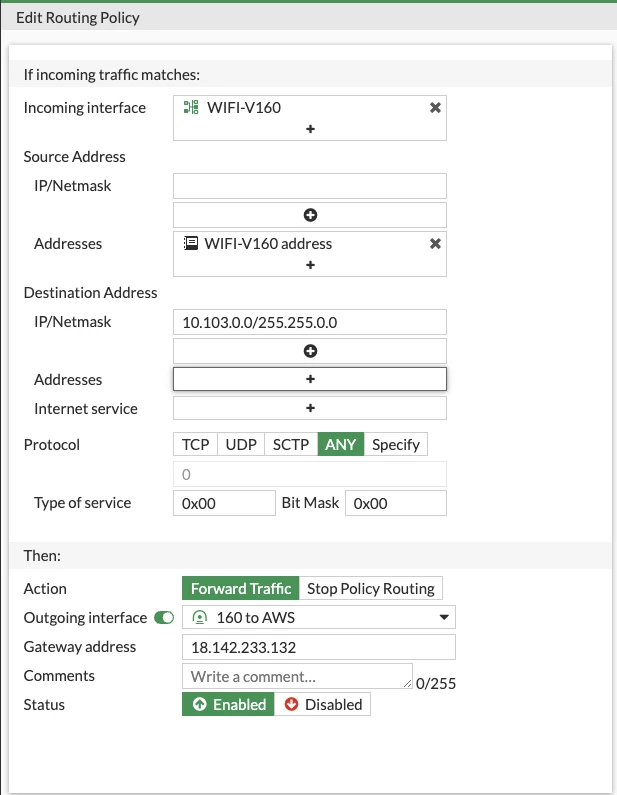

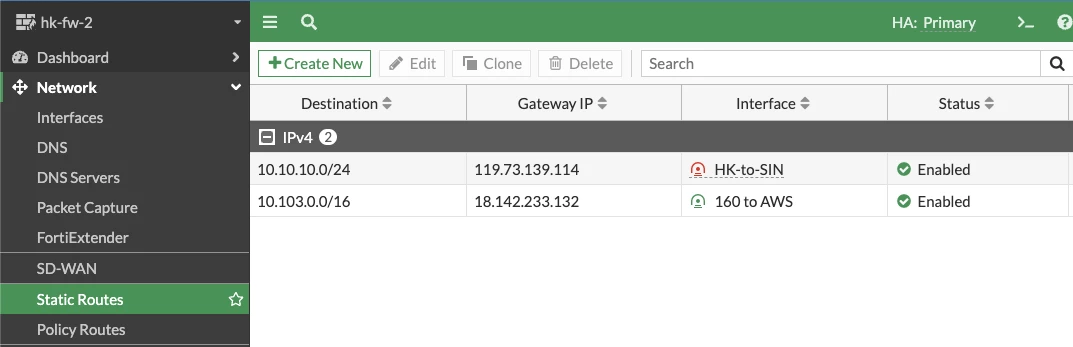

below is the config I have set

Much appreciate any help

Thanks in advance!

image (9).png image (10).png image (11).png

FortiGate

Vichu_94Answer

Staff

Hi Simon,

To further troubleshoot the issue we would need to run the flow debug command on the CLI to check if the traffic is leaving the firewall or not

di de flow filter clear
di de reset
di de flow filter saddr x.x.x.x
di de flow filter daddr y.y.y.y
di de flow filter proto 1
di de flow show function-name
di de flow show iprope enable

di de flow trace start 1000
di de en

Where x.x.x.x is the source ip address and y.y.y.y is the destination ip address. After running the command, please try to initiate a ping from a test pc to the other site

To disable the logs on the firewall, please run the command

di de di

Refer link: https://docs.fortinet.com/document/fortigate/6.2.10/cookbook/54688/debugging-the-packet-flow

Regards

Vichu_94Answer

Staff

Hi Simon,

To further troubleshoot the issue we would need to run the flow debug command on the CLI to check if the traffic is leaving the firewall or not

di de flow filter clear
di de reset
di de flow filter saddr x.x.x.x
di de flow filter daddr y.y.y.y
di de flow filter proto 1
di de flow show function-name
di de flow show iprope enable

di de flow trace start 1000
di de en

Where x.x.x.x is the source ip address and y.y.y.y is the destination ip address. After running the command, please try to initiate a ping from a test pc to the other site

To disable the logs on the firewall, please run the command

di de di

Refer link: https://docs.fortinet.com/document/fortigate/6.2.10/cookbook/54688/debugging-the-packet-flow

Regards

simon0711Author

Visitor III

Thanks for your reply, after debugging the packet flow, I am able to found out the problem, we have set wan1 as the out-going interface for my wifi VLAN which I think messed up the route, now I removed it from the policy route and it is working fine, thanks a lot for the tips!!!!
