Site 2 Site VPN with Azure

Forum|Forum|3 years ago
October 6, 2022
9 replies
3590 views

Please help,
I can access On-Prem from Azure but I cannot access Azure from On-Prem from firewall level and LAN behind Firewall.

Azure
172.16.0.0/21 - Address space
172.16.1.0/24 - Subnet
172.16.0.0/24 - GW Subnet

NSG in Azure
ICMP and RDP are Any Any Any Allow

VM in Azure
All firewalls are disabled

On-Prem / Fortigate 60E v6.2.3 build1066 (GA)
PPPoE - WAN
192.168.1.0/24 - LAN

Thank you in advance

FortiGate

xshkurti

Staff

Hi

Please check mtu traffic size from On-prem to Azure.

You can try to lower TCP-MSS on policy that allows traffic to go to Azure

MackoyAuthor

Visitor III

Hi

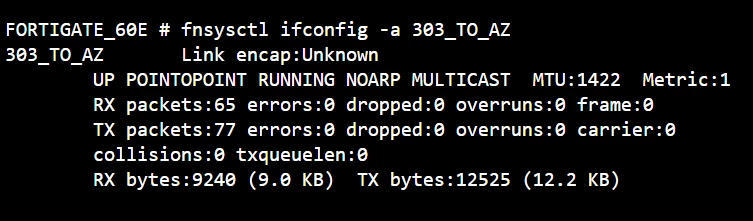

Here is the result of my firewall MTU

the TCP-MSS on policy, what value should I input?
Thanks

MackoyAuthor

Visitor III

Additional info:

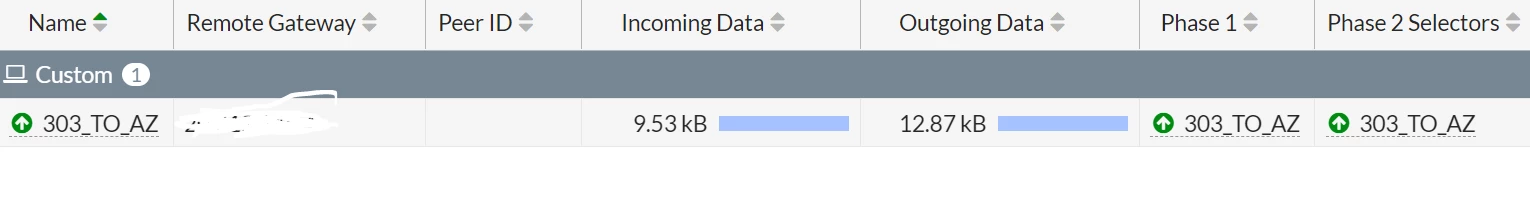

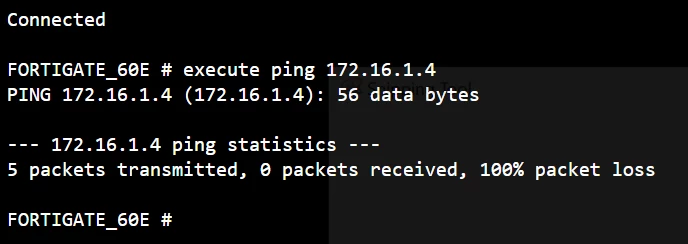

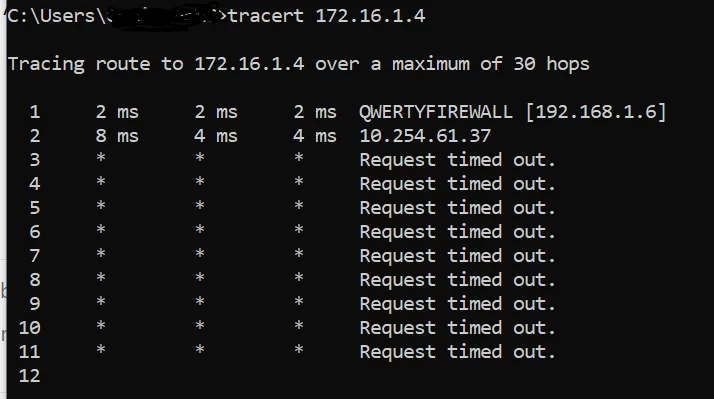

IPsec MonitorIPv4 PolicyPing from FirewallTracert from LAN (On-Prem)

baldchiapet75

New Member

What do your route-tables look like in both Azure and on the FTG?

MackoyAuthor

Visitor III

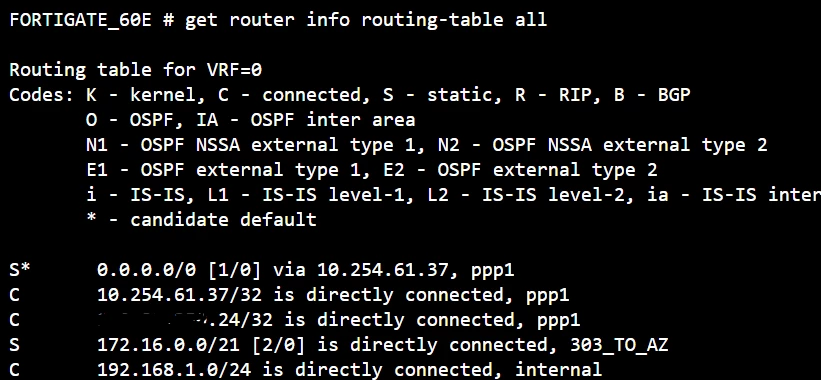

Here:

Fortinet routing table.

baldchiapet75

New Member

Please give us the output from the below command.

FW # get router info routing-table database

MackoyAuthor

Visitor III

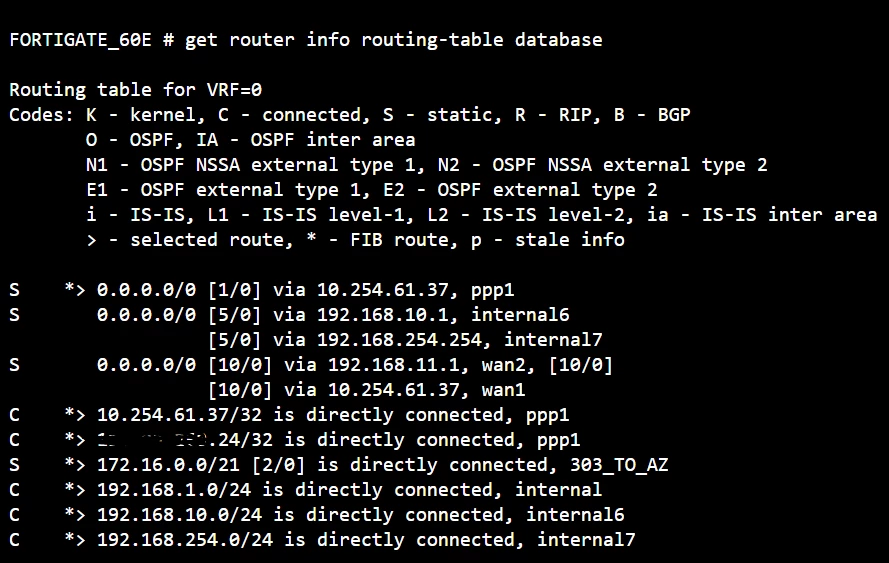

Here:

baldchiapet75

New Member

Everything looks good on the Fortigate. If you can take a screen shot of the route-table(s) on the Azure side that would work. It could be your not propagating the routes to the vNET from the VNG. By default, the VNG will route RFC1918 back down the S-2-S tunnel so if there is no route for the destination subnet in the VNG route-table it will not reach any host that resides there.

MackoyAuthor

Visitor III

Thank you for confirming the setup from my Fortigate.

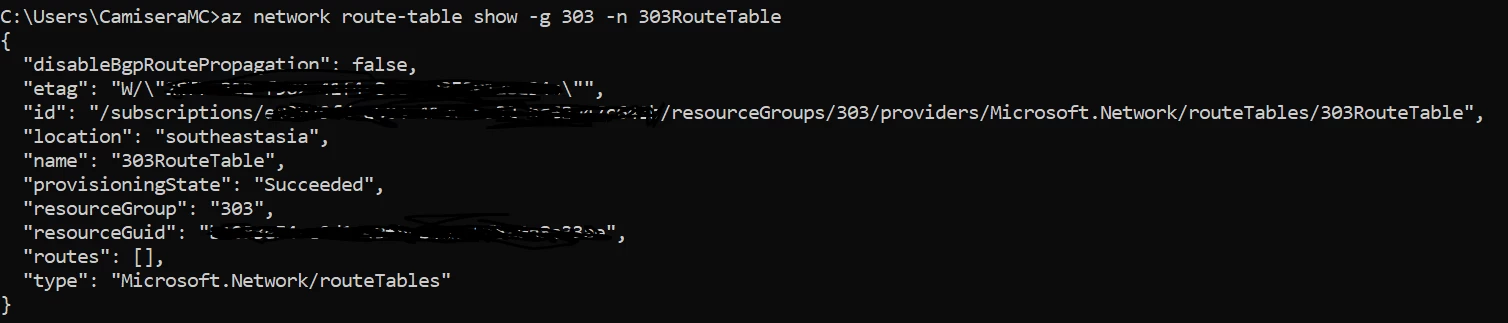

Here is the result of the query.
