Setting override ssh host key on FortiGate

Forum|Forum|1 year ago
October 4, 2024
2 replies
1939 views

I'm trying to set ssh host key using my own generated key following the instructions at https://docs.fortinet.com/index.php/document/fortigate/7.6.0/cli-reference/207795941/config-system-ssh-config. The document doesn't specify what is the format for ssh-hsk parameter. I'm using ssh-keygen to generate the private key. Then remove the BEGIN/END and concatenate the lines together. However, this gives me an error "The password does not match hostkey!" when I run end command to commit the settings.

Does anyone have an example how to do this correctly? Thank you.

FortiGate

hgarara

Staff

Hello @jaypat,

Confirm if generating host key from sshkeygen looks like the format below(example):

ssh-rsa

AAAAAAAAAAAAhaslkdjalkdsmx;asmscx;la,x;l,alsx,a

asdiohjfwidpokpco,zx;kcjmascpkas;xka;lkx;lakx;laksp

- Try to copy the whole text paste it to notepad add quotation from starting and ending.

"ssh-rsa

AAAAAAAAAAAAhaslkdjalkdsmx;asmscx;la,x;l,alsx,a

asdiohjfwidpokpco,zx;kcjmascpkas;xka;lkx;lakx;laksp"

Now copy the test with quotation and try pasting it to FortiGate under host key and see it helps. Make sure if you have put the password for it, set the correct password for that key on fortigate.

jaypatAuthor

New Member

Thank you for prompt response. However, it's still not working.

This is the command I use to generate the host key

ssh-keygen -m RFC4716 -N "password1" -t ed25519 -b 2048 -f hostkey

Also, I'm not sure if setting host key to "ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIIcaU2T+dts+1HhWUKB6DSJT+QGvwSfMjxmxwl8i/R8P" is right, because it's a public portion of the key. I suppose I should give private key to FortiGate instead of public key.

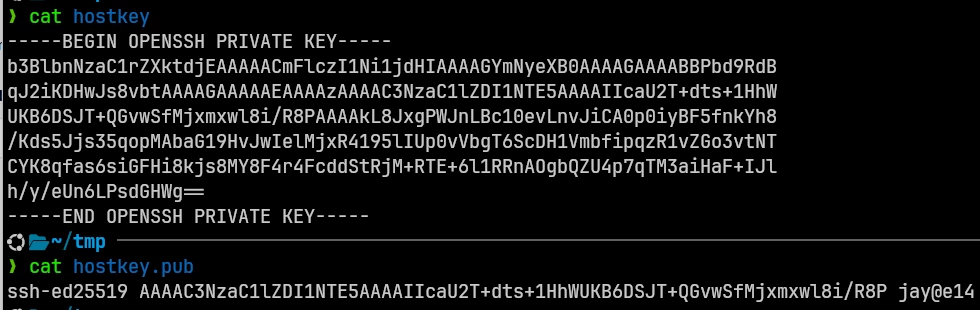

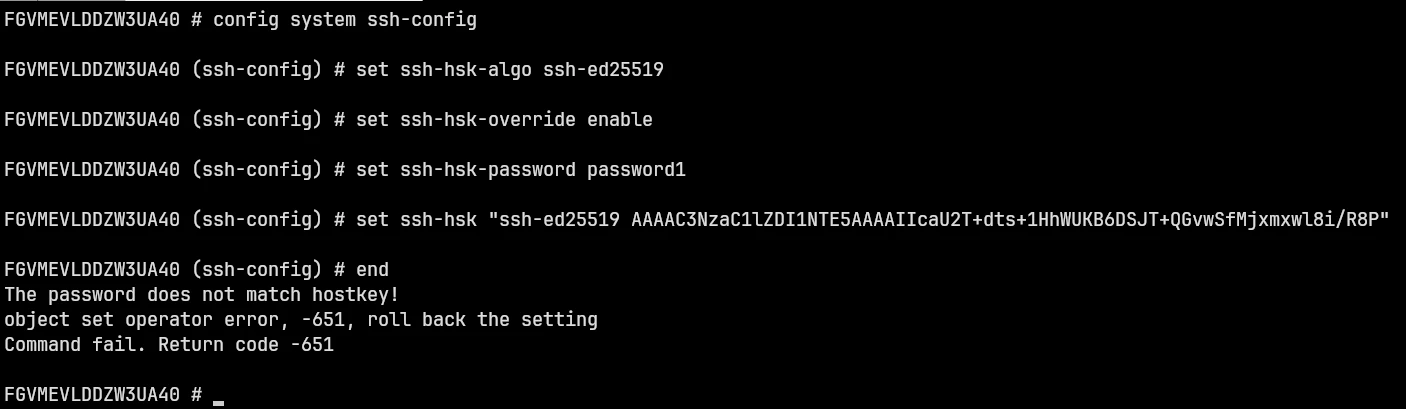

This is what the files look like.
