server load balancing finally works since FOS 6.4

Forum|Forum|4 years ago
May 4, 2022
17 replies
8954 views

Hi,
the Fortigate has the vip type "server-load-balance" for a while and some features eg https offloading and cookie persitence looked promising, but there was a bug in the cookie handling that spoiled it all.

Since FOS 6.4 this is fixed and we use this simple slb for a while without issues. So if you think about replacing a fully blown ADC (F5,A10,FortiADC) with this feature, the following might be interesting for you.

Features

Supported Protocols: https, generic ssl, http, tcp, udp and generic ip
https offloading with optional crypto tuning
http redirect to https
HSTS and HPKP
secure cookies
simple http header manipulation (via web-proxy profile)
usable health checks
Automation through FGs standard REST API

Limitations

SNAT is limited to FGs interface IP
Event logging can't show VIP or real server. Works with FAZ though
LB Monitor Dashboard shows only (static) configured state and not the health status
max 16 real server on 1HU devices
health checks might be redundant if real servers are reused in multiple VIPs

Missing

Advanced ADC features like

Content rewriting
Scripting (irules/aflex)
Caching
SNI

I like this feature because we didn't need a different dedicated box with individual handling, training, contracts and all. My hope: more admins use it and someone at FTN finds time to improve at least the dashboard limitation. Why did they make a dashboard that is static???

Regards,

Dirk

FortiGate

A

Anonymous_User

Contributor III

Hello @DirkDuesentrieb,

Thank you for using the Community Forum. We appreciate the information you have shared in the forum, although we think it is better suited to be an article instead so that everyone can make use of this useful information. We will work on this to create an article. We thank you for this great information.

Thanks,

DirkDuesentriebAuthor

New Member

Hello @Anonymous ,

yes I'll need help - I don't know where/how to create an article.

Regards,

Dirk

DirkDuesentriebAuthor

New Member

Hello all,

please note that at time of writing this, http-multiplex must be unset! Otherwise some clients will have connectivity issues in case of a realserver going down, because rebalancing of sessions with existing cookies will not work.

Regards,

Dirk

Debbie_FTNT

Staff & Editor

Hey Dirk,

at the moment, (KB) articles can only be created by Staff, not other community members.

I'm not sure if this will change, but I will reach out to the dedicated community team regarding your thread to see what can be done :).

Again, thanks for compiling the information in such an easily accessible format!

jintrah_FTNT

Staff

Hi Dirk,

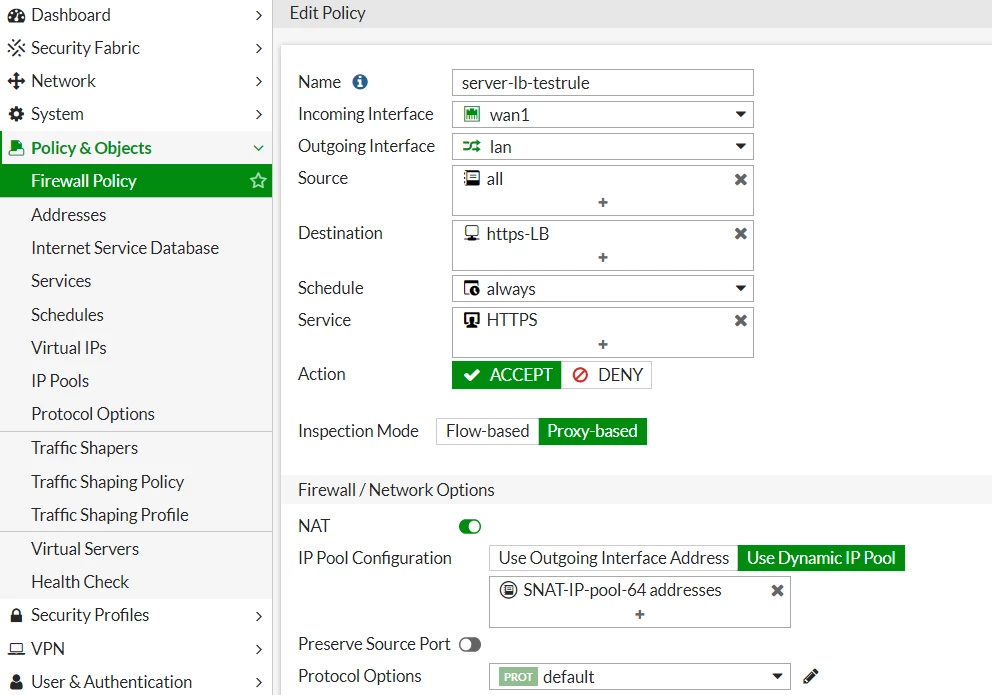

The SNAT is not limited to interface IP, we can have IP-Pools for SNAT.

best regards,

Jin

jintrah_FTNT

Staff

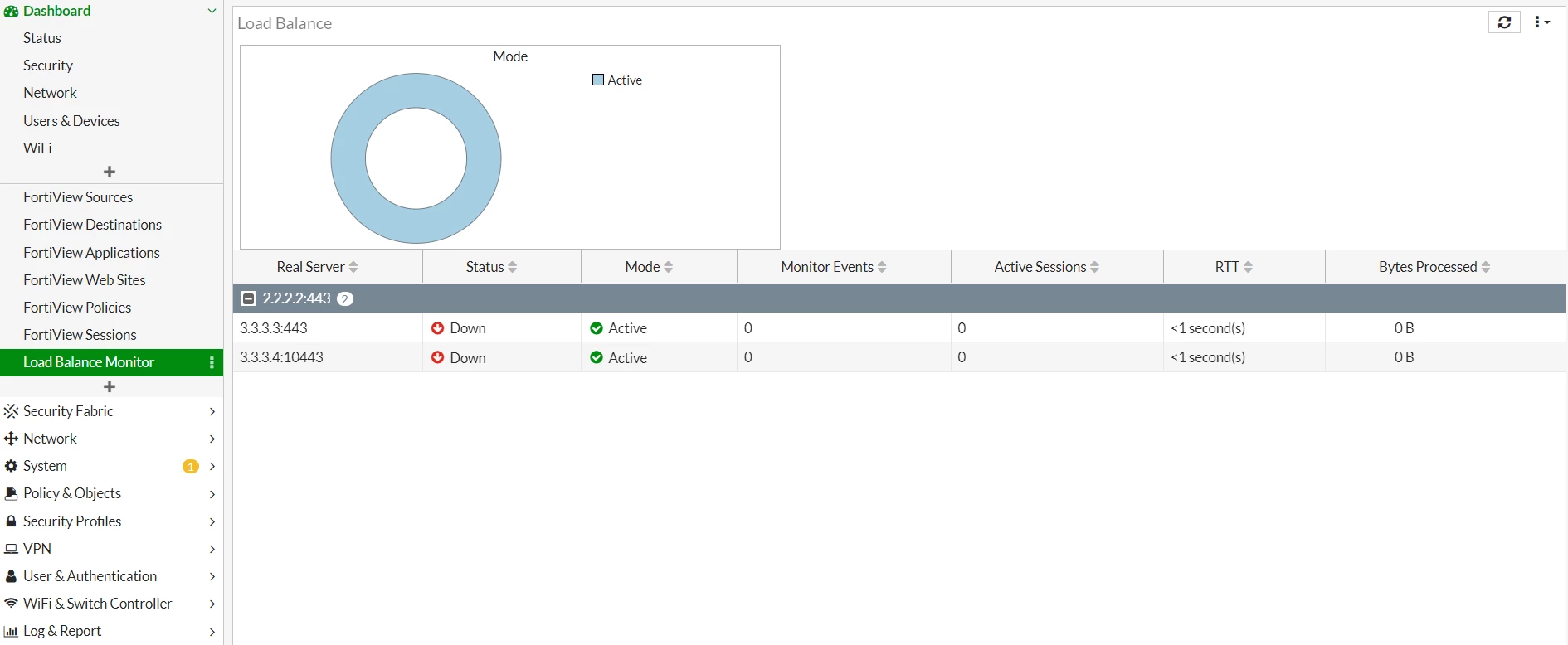

The realtime health monitor is available in the dashboard with healthcheck status. A sample below,

best regards,

Jin

jintrah_FTNT

Staff

Dear Dirk,

You mentioned "Event logging can't show VIP or real server. Works with FAZ though"

But I think whatever generated on FortiGate is only viewable in FAZ. Is there any sample log you can provide which you didnt see on FortiGate but on FAZ(RAW log please and no csv, please).

Best regards,

Jin

DirkDuesentriebAuthor

New Member

Hello @jintrah_FTNT ,

I did a quick retest and you are right it works (now), what was a bit surprising to me be because I had lots of sniffer dumps from my previous tests that showed a different behavior. The important change was unsetting http-multiplexing! Because it's turned off now, SNAT works. Bug or Feature? At least something to add to the article. Can you correct it?

Regards,

Dirk

jintrah_FTNT

Staff

Hi Dirk,

You should be able to get it working with http-multiplexing or without, the snapshot I shared earlier was taken when the multiplexing setting was enabled.

Best regards,

Jin

DirkDuesentriebAuthor

New Member

Hi @jintrah_FTNT ,

my box has FOS6.4.9. If I turn on http-multiplex for a VIP, the SNAT-Pool is ignored and the interface VIP is used to connect to the real server.
If I turn it off (and wait for sessions to time out) SNAT works again.

Just ran a tcpdump to confirm, because the traffic log claims that it it uses the pool IP - but it doesn't.

Regards,
Dirk
