SD-WAN Traffic Distribution Issue

Hello Community,

I have an issue with my SD-WAN configuration maybe, the traffic is being distributed unevenly between the two interfaces.

I tried all available options manual, best quality and lowest cost, non of these options distributed my traffic evenly.

You can find below the ports usage and configuration:

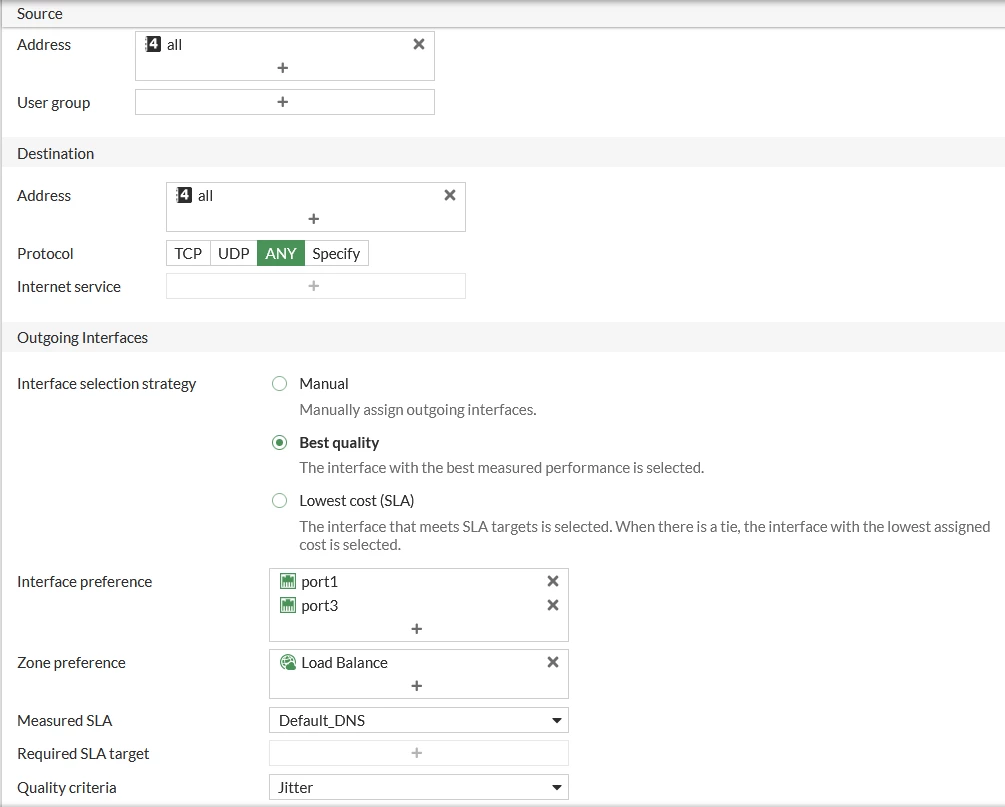

Screenshot 2024-12-31 092518.png

Screenshot 2024-12-31 092807.png Screenshot 2024-12-31 092826.png

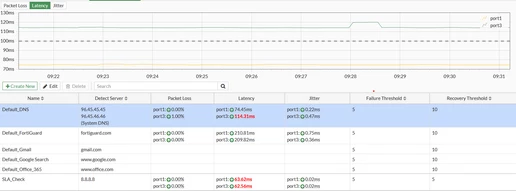

Screenshot 2024-12-31 093133.png

BKRAuthor

Explorer II

Thank you chat-gpt.

Staff

Hi BKR,

Please refer to the below document on the difference between two load-balancing algorithms round-robin (default) and inbandwidth.

You can also force the traffic for a specific source or destination to take specific WAN link with the help of Manual outgoing interface

Please refer to the below document how sdwan best quality rule works:

BKRAuthor

Explorer II

I check what you have sent me, but still the issue is occurring

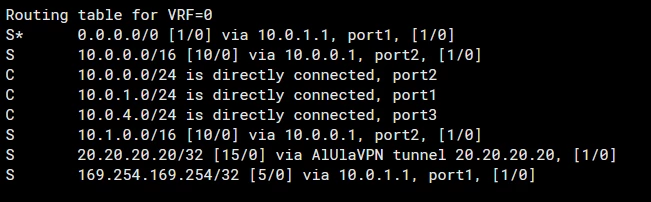

While troubleshooting I realized that no route to port 3 available in the routing table, but also sometime all traffic go through port 3

Screenshot 2025-01-05 131249.png
