Sanity check on HA setup

  • August 19, 2022
  • 4 replies
  • 4666 views

So my HA setup now works.  Details:



2 40F units on verizon DHCP broadband

lan1 => LAN

lan2 => heartbeat (priority 200)

lan3 => heartbeat (priority 100)

a => OOB mgmt (192.168.2.11 and 192.168.2.12 in vlan2)



interface monitoring set for lan1 and wan.



I have:



session-pickup
session-pickup-connectionless
session-pickup-delay



Does this look reasonable?  Anything missing?  Thanks!



4 replies

vdralio
Staff
vdralio
Staff
August 20, 2022

Dear @druber ,



Please find below the article for Fortinet's best practices, you can find their detailed information regarding it. Just keep in mind every setup is unique and depends on the requirements that need to be configured.



https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/6b151c0a-67d4-11ea-9384-00505692583a/FortiOS-6.4.0-Best_Practices.pdf



Best Regards,

Vasil

ede_pfau
SuperUser
ede_pfau
SuperUser
August 20, 2022

Looks sound. Some advice not necessarily applying to this quite simple setup, but from experience:



1- always (always) change the "HA-group-id" to something other than the default "0"! this will determine the virtual MAC addresses used for the interfaces. This parameter is CLI-only.

2- equal priorities and no "override enable" setting - this way, when a failover occurs, there will be no fallback to the original primary, thus avoiding a second interruption

3- "set uninterruptable enable" which might already be enabled per default

4- "session-pickup": yes, for TCP sessions only. UDP sessions are way less critical and do not cause a huge overhead when they have to be restarted, so I prefer "connectionless disable". IPsec sessions always break on failover.

Session sync increases both the traffic volume on the HA links and CPU load. This setting should not be set "per default" but deliberately.

5- no encryption on the HA link(s). Unless the cluster units are located far apart via WAN lines. Increases CPU load.

6- by default, HA monitoring will detect link failure, in addition to device failure. In a switched environment, links can stay up forever even though the line is broken further up. Install ping target monitoring (system link-monitor) to ensure a WAN line really is up. Either choose the ISP's gateway (preferably it's loopback IP) or number the WAN line and ping the other end (for instance, with VPNs).

    Debbie_FTNT
    Staff & Editor
    Debbie_FTNT
    Staff & Editor
    August 22, 2022

    Tiny nitpick - HA group ID can be set via GUI in newer firmware versions.

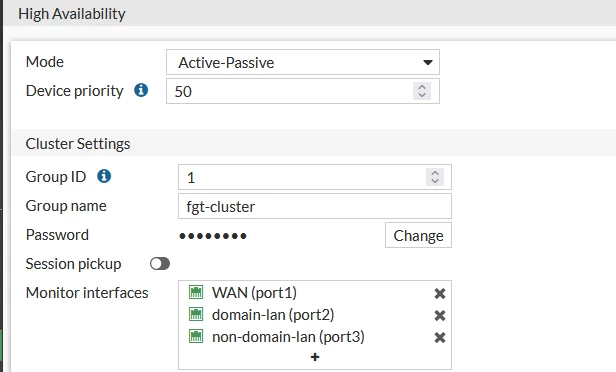

    Screenshot from my lab 7.2.1 cluster:


    mclegg
    Staff & Editor
    mclegg
    Staff & Editor
    August 22, 2022

    One additional comment.  You are using Lan2 and Lan3 as your HA ports, make sure that they are not part of the hardware switch that the default config comes with.

    Convert them to individual interfaces.

    See the best practices for HA here and the warning box at the top of the page: https://docs.fortinet.com/document/fortigate/6.0.0/best-practices/956481/heartbeat-interfaces

    druber
    druberAuthor
    New Member
    August 22, 2022

    I did in fact make sure to convert lan1, lan2 and lan3 to physical before doing this.

      druber
      druberAuthor
      New Member
      August 22, 2022

      I do appreciate all the helpful information.  Thanks again!
