SAML SSO for WiFi SSID over Captive Portal with Azure AD as IdP

Hello - Has anyone set this up recently with Forti OS 7.2.x or later?

I am looking for a most recent setup guide or deployment video?

Please share if you have something the only document I could find was an old technical paper from 2022. (Article id = 216020)

Staff

Hello @nflnetwork29

Please check this link.

regards,

Sheikh

Explorer III

I followed article but still cant connect

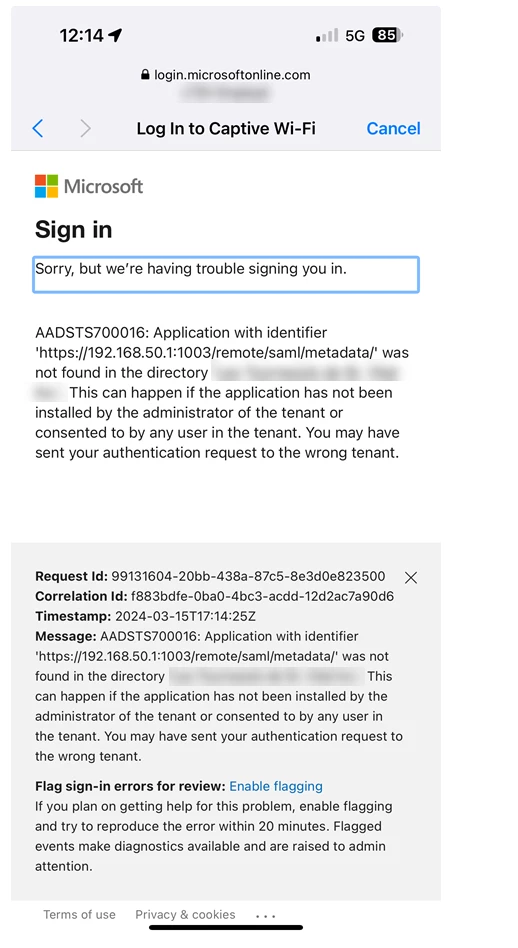

we are getting this error:

in the article they configure the FortiGate SP as follows https://172.16.70.15:1003

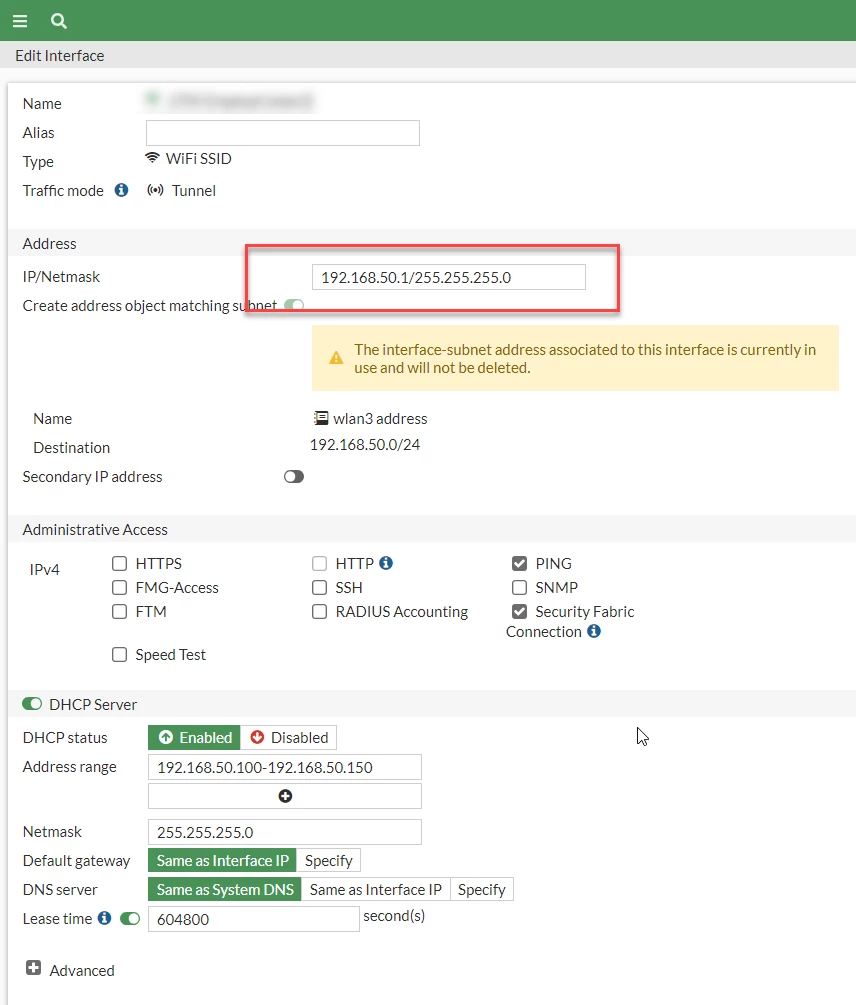

For me I am using https://192.168.50.1:1003 << IP address of the wlan interface in fortigate SSID

+

Does this need to be an external IP address?

Staff

Hi @nflnetwork29,

I don't think so. Please verify the SAML URLs on FortiGate and Azure and make sure they match.

Regards,
