Routing problem between 2 FG Tunnel VPN IPsec

  • December 11, 2020
  • 1 reply
  • 21133 views

Hello,



I need help solving a routing problem.



HQ and Brand Fortigate FW are connected via VPN IPsec Site to Site, everything is working fine, we can ping and have access from servers and ressources LAN to LAN from both side.



I created a static route from Brand's LAN 10.0.151.0/24 to HQ's router 10.0.78.253 on Firewall Arkoon.



We host a SaaS solution with a service provider and this one to authorize the different lan to connect to the solution (France agencies + UK agency)



On our Arkoon Firewall, we have authorized the different LANs that must have access to the LAN of the SaaS solution, 192.168.100.0/24.



This works very well for all the agencies in France, except for the UK LAN with 10.0.151.0/24 addressing.



When i do tracert cmd from a computer brand's LAN 10.0.151.109, I can ping 10.0.78.253 and 10.0.78.254.

But, when I try ping or tracert with 192.168.100.20 it cannot found a route and it fails at first jump after 10.0.151.254.



Thank you in advance.

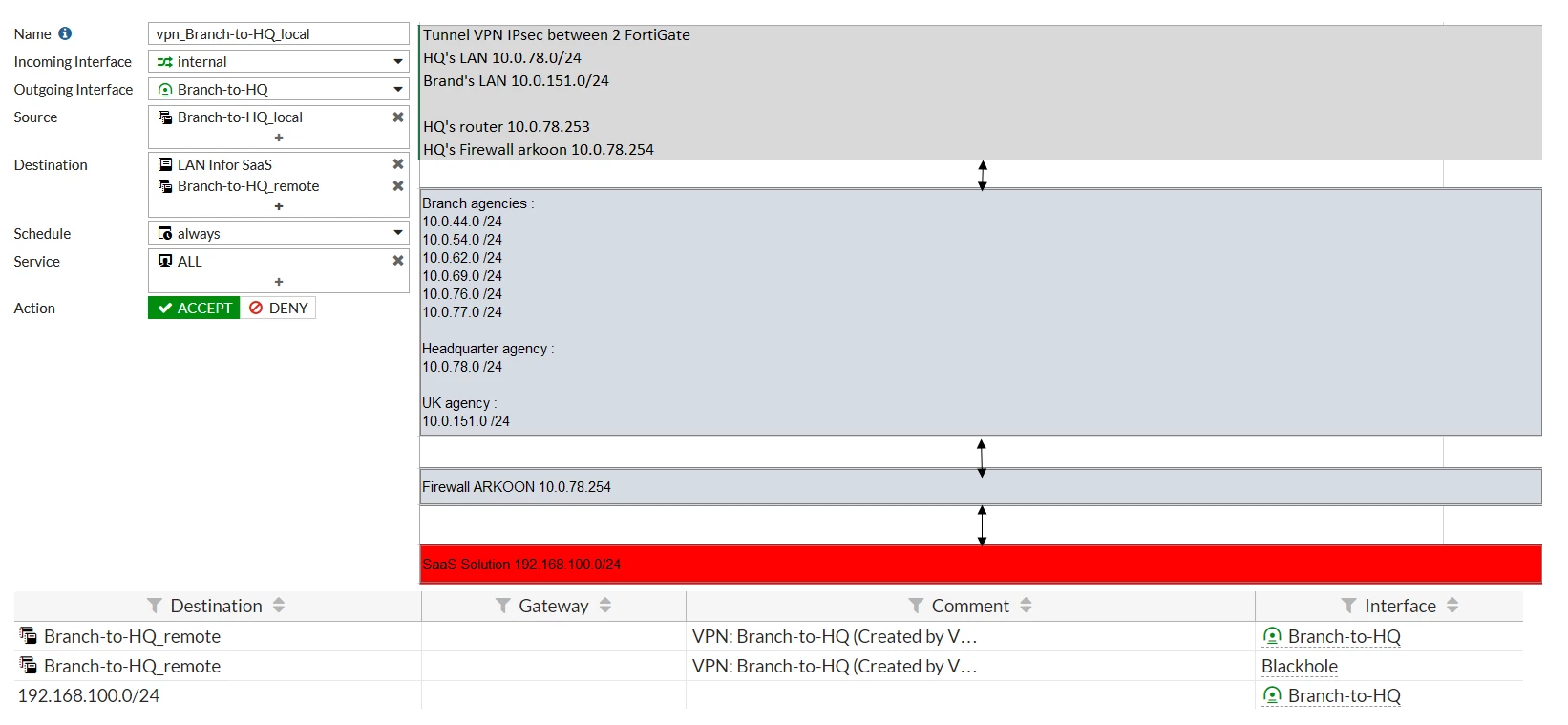

You can find on my screenshoot : Fortigate FW UK - static routes, ipv4 rules and topology network.

Regards,

Best answer by Phil_Lofthouse

Hi David.



It looks like you will need an additional Phase 2 configuring on the Branch FortiGate, to allow 10.0.151.0/24 (local) to have a tunnel to 192.168.100.0/24 (remote), with the opposite configured on the HQ FortiGate.



Regards,

Phil

1 reply

isamt
isamt
New Member
December 13, 2020

Does the 192.168.100.0/24 network have a route back to the 10.0.151.0/24 network?

Routing is usually very simple. The source must have a route to the destination and the destination must have a route back to the source. Then in between policies that allow the traffic to pass.

DavidC
DavidCAuthor
New Member
December 23, 2020

Sorry for the late answer, yes the 192.168.100.0/24 network have a route back to 10.0.151.0/24 network.

For IPv4 rules, we have allowed all traffic on both sides, between source and destination.

isamt
isamt
New Member
December 23, 2020

You can confirm the routes are in place by running the following commands on Fortigate



"get router info routing-table all" - this will show the full routing table



Then you can check route used for say 192.168.100.0/24

"get router info routing-table details 192.168.100.0"

This will tell you where the fortigate is learning the route from and where it is sending the traffic to get to it.



If the above is all fine, then you will need to debug the traffic.



From an SSH session on the Fortigate enter



diagnose debug reset diagnose debug disable diagnose debug enable diagnose debug console timestamp enabled diagnose debug flow show fun en diagnose debug flow filter clear diagnose debug flow filter addr 192.168.100.x diagnose debug flow filter addr 10.0.151.x diagnose debug flow trace start 100

Run a ping between the hosts and check the debug output

When finished debugging make sure you run the following commands to turn off debug mode



diagnose debug reset diagnose debug disable
