Route Branch FGT to BGP via Site to Site VPN

Question

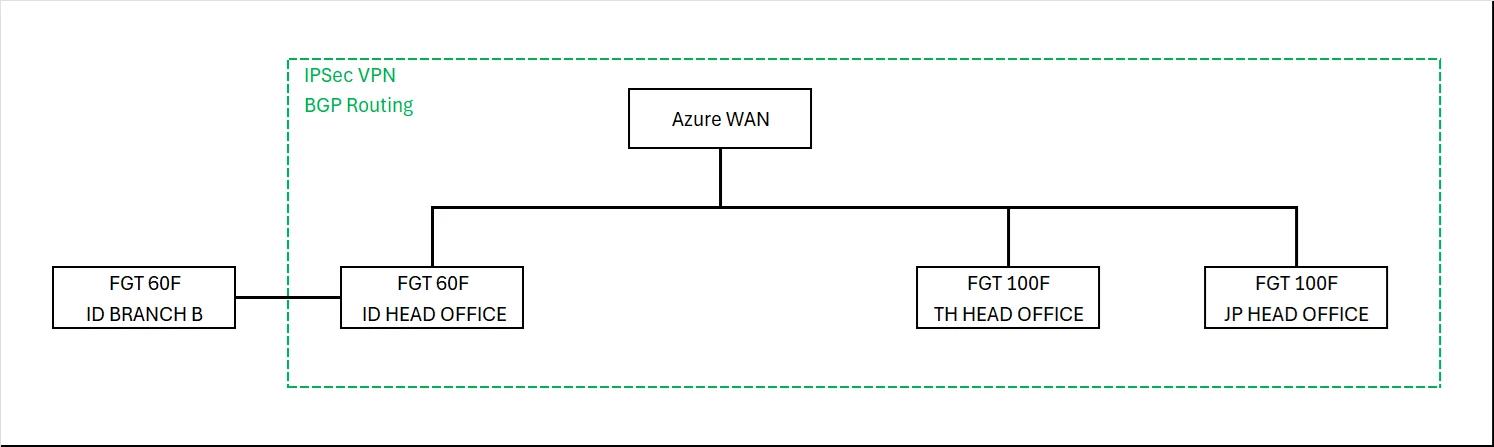

Hi all, I have some question regarding the routing in FortiGate here. I have attached the topology here for better understanding. I only have a control of ID FortiGate and cannot see the configuration on Azure WAN and other Head Office. Current condition is in the green box, all Head Office FortiGate has IPSec tunnel to Azure WAN, and I think the Azure WAN is responsible for the BGP routing to all other Head Office. From ID Head Office, I can connect to TH Head Office and JP Head Office. Everything is working well.

So, I have a new Branch office in ID. I can create the site-to-site VPN between ID Head Office and ID Branch, but the problem here is to connect the ID Branch to TH Head Office or JP Head Office via ID Head Office. Does anyone ever have this kind of configuration and can give me suggestions about how to configure it?

Thank you.

ferryblu3 · Accepted Answer

Hi Toshi,

Thanks for your reply here. The thing is, from what I know and told, the BGP is already setup to automatically connect if there is some new branch in every country.

I already solved this case, I just need to add some network like loopback interface, BGP peer address, and the destination that I want to access in the site-to-site VPN between head office and branch. The thing is, I don't know why when I try to trace route, there is an IP of 10.10.10.1 which I don't know what it is. This IP appear after the FortiGate local IP. This IP seem look like the default IP of DMZ in FortiGate. When I change the DMZ IP to other like 10.10.20.1, the tunnel suddenly working fine. I don't see any of this IP in branch network and head office network other than DMZ interface, that's why I still a bit confused about this. But, since the connection is established and the user can connect to the other country server, for now, it's fine.

Thank you.

Toshi_Esumi · Answer

You need to understand the BGP topology with AS number on each FGT. It's under "config router bgp" in CLI. Especially inside of "config neighbor". It would look like below:

config router bgp
set as 65070
set router-id 192.168.199.253
config neighbor
    edit "10.x.x.253"
      set shutdown enable
      set soft-reconfiguration enable
      set remote-as 65528
      set route-map-out "Announce-Primary"
      set send-community standard
    next
    edit "10.x.x.121"
      set soft-reconfiguration enable
      set remote-as 65528
      set route-map-out "Announce-Office"
      set send-community standard
    next
end
config redistribute "connected"
    set status enable
end
<snip>

Share us this part of config after masking some sensible info.
Above is my home 40F's BGP config. It has two neighbors configured but one of them is "shutdown" so only the second neighbor is active. The neibor is connected over an IPsec and 10.x.x.121 is configured on the neighbor FGT's IPsec interface. And it's getting routes from AS=65528 over eBGP (because its own AS is 65070).

Toshi
